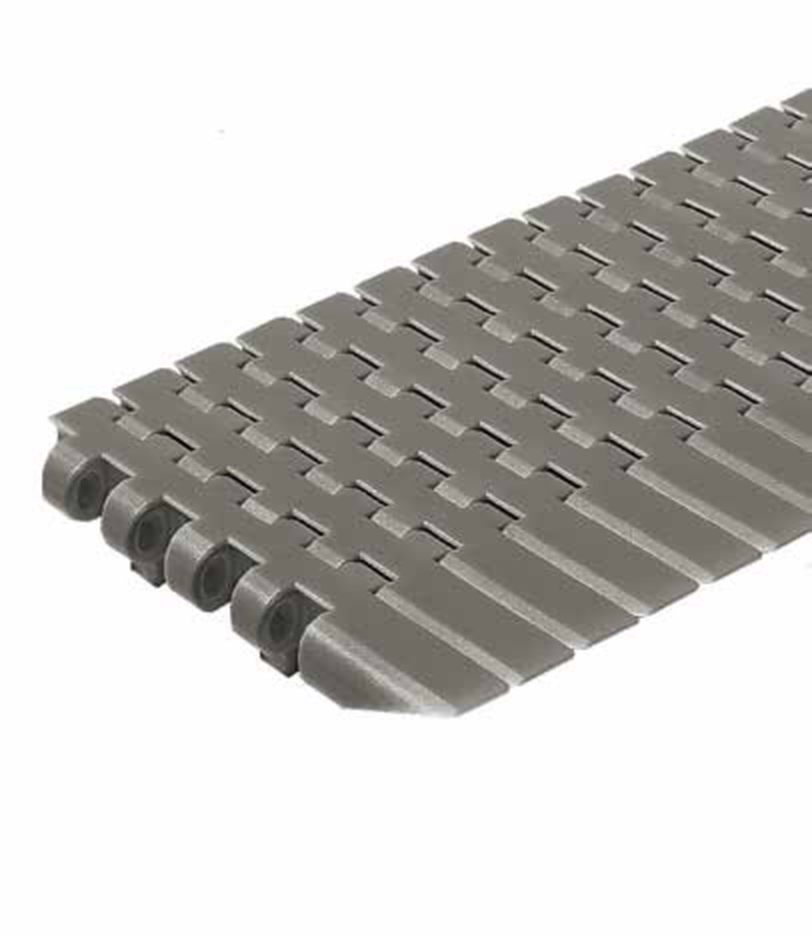

D2K 600G ATM Series
Active transfer modules 600G ATM series allow the transfer of the products between two 90° conveyor tracks without using dead plates. Left and right version available. Rolls of 3,048 m (10 feet).
Product Configuration
Select a row to add it to your quote
| Code | Width W | Plate thickness | Working load | Weight |
|---|---|---|---|---|
600BGATMD2K085S |
110 mm
|
8.7 mm
|
1190 N
|
0.96 kg
|
600BGATMD2K085D |
110 mm
|
8.7 mm
|
1190 N
|
0.96 kg
|
No products match the selected filters.
Product Information
- Type
- Matveyor
- Pitch
12.7mm- Thickness
8.7mm- Material
- D2K — Special Delrin® Reinforced with Kevlar®
- Packaging
- Rolls of
3.048m
D2K — Special Delrin® Reinforced with Kevlar®
Next generation material, based on a Delrin® acetal resin reinforced with Kevlar®, developed by REGINA and Delrin (former DuPont™), able to reach the lowest coefficient of friction with maximum wear resistance. Thanks to the superior properties of DK²™, the usage of lubricants can be drastically reduced or even eliminated without loosing performance in conveyor applications.
