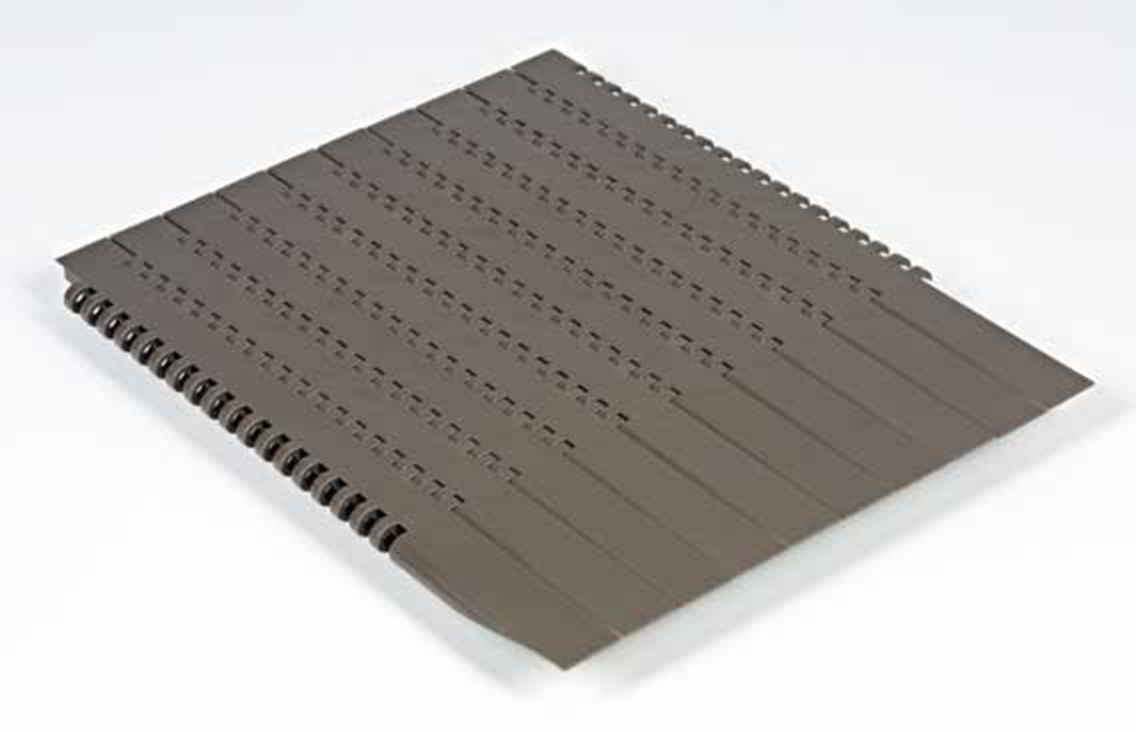

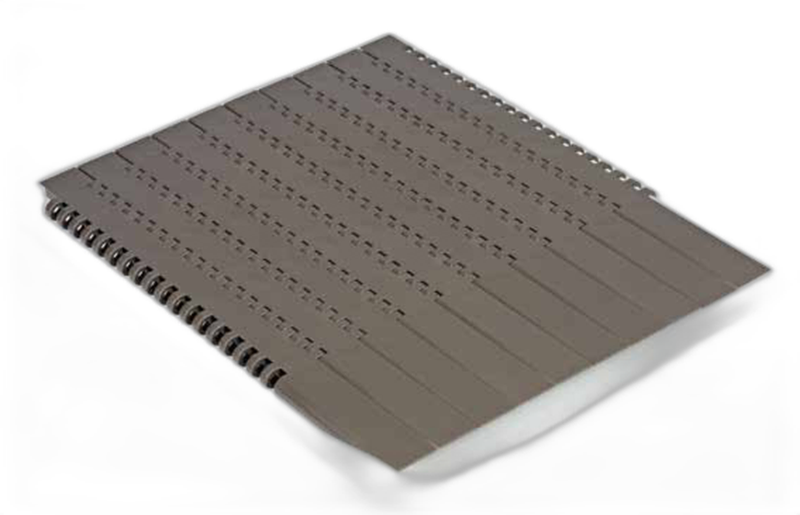

D2K 7300G ATM Series
7300G ATM can be used in combination with 7300 modular belts. Active transfer modules 7300G ATM allow the transfer of products between two 90° conveyor tracks without using dead plates. The special wing shaped module profile supports the products dynamically during transfer on the take-away belts. Available left and right version. Rolls of 3,048 m (10 feet).
Product Configuration
Select a row to add it to your quote
| Code | Width W | Plate thickness | Working load | Weight |
|---|---|---|---|---|
7300GATMD2K450LH |
160 mm (6.30")
|
8.7 mm
|
3290 N
|
1.28 kg
|
7300GATMD2K450RH |
160 mm (6.30")
|
8.7 mm
|
3290 N
|
1.28 kg
|
7300GATMD2K750LH |
236.2 mm (9.30")
|
8.7 mm
|
4370 N
|
1.99 kg
|
7300GATMD2K750RH |
236.2 mm (9.30")
|
8.7 mm
|
4370 N
|
1.99 kg
|
No products match the selected filters.
Product Information
- Type
- Matveyor
- Pitch
19.05mm- Thickness
8.7mm- Material
- D2K — Special Delrin® Reinforced with Kevlar®
- Packaging
- Rolls of
3.048m
D2K — Special Delrin® Reinforced with Kevlar®
Next generation material, based on a Delrin® acetal resin reinforced with Kevlar®, developed by REGINA and Delrin (former DuPont™), able to reach the lowest coefficient of friction with maximum wear resistance. Thanks to the superior properties of DK²™, the usage of lubricants can be drastically reduced or even eliminated without loosing performance in conveyor applications.
