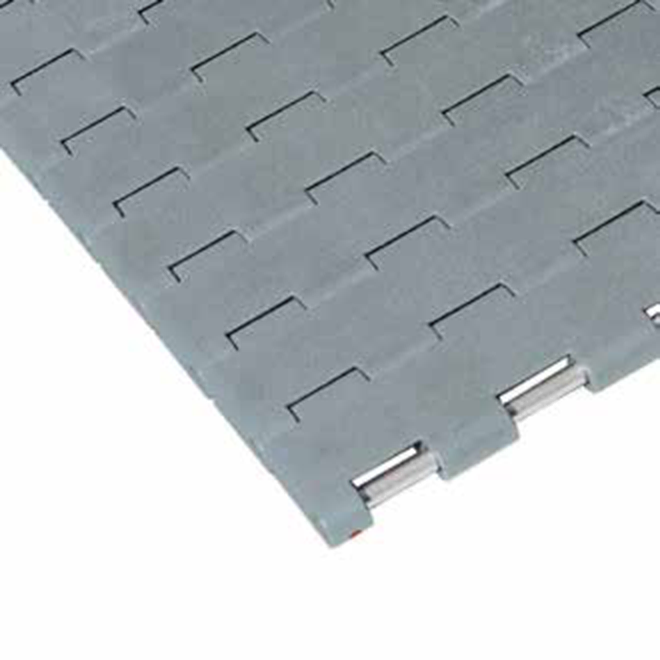

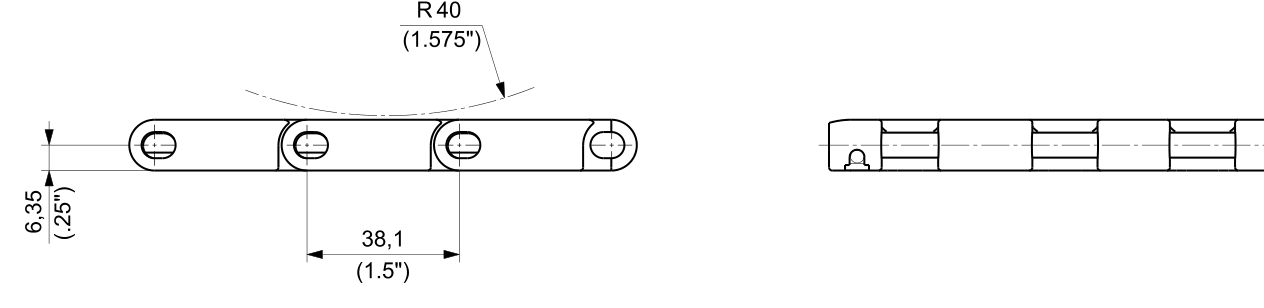

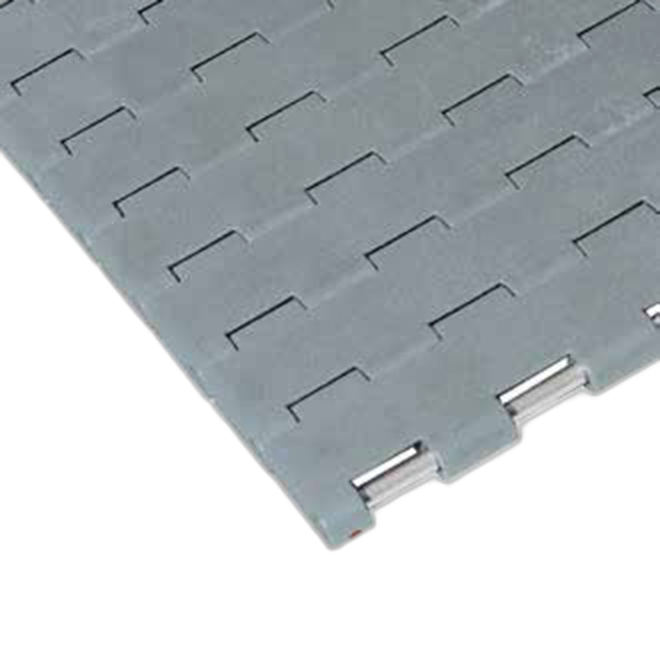

D2K UCC Series
1½" pitch heavy duty chain, 12,7 mm (0.5") thickness, solid top. Stainless steel pins for ideal performance in heavy duty applications. No gap between the plates even when engaging in the sprockets. Particularly suitable for glass bottling lines and the glass manufacturing industry. Rolls of 3,048 m (10 feet).
Product Configuration
Select a row to add it to your quote
| Code | Width W | Plate thickness | Working load | Weight |
|---|---|---|---|---|
D2K66100111 |
82.6 mm (3.25")
|
12.7 mm
|
2505 N
|
1.33 kg
|
D2K66100141 |
114.3 mm (4.50")
|
12.7 mm
|
3469 N
|
1.83 kg
|
D2K66100161 |
152.4 mm (6.00")
|
12.7 mm
|
4625 N
|
2.43 kg
|
D2K66100151 |
190.5 mm (7.50")
|
12.7 mm
|
5781 N
|
3.07 kg
|
D2K66100191 |
304.8 mm (12.00")
|
12.7 mm
|
9270 N
|
4.88 kg
|
D2K66100181 |
381 mm (15.00")
|
12.7 mm
|
11590 N
|
6.1 kg
|
D2K66100221 |
457.2 mm (18.00")
|
12.7 mm
|
13900 N
|
7.32 kg
|
D2K66100231 |
609.6 mm (24.00")
|
12.7 mm
|
18540 N
|
9.73 kg
|
No products match the selected filters.
Product Information
- Type
- ULTOP
- Pitch
38.1mm- Thickness
12.7mm- Material
- D2K — Special Delrin® Reinforced with Kevlar®
- Packaging
- Rolls of
3.048m
D2K — Special Delrin® Reinforced with Kevlar®
Next generation material, based on a Delrin® acetal resin reinforced with Kevlar®, developed by REGINA and Delrin (former DuPont™), able to reach the lowest coefficient of friction with maximum wear resistance. Thanks to the superior properties of DK²™, the usage of lubricants can be drastically reduced or even eliminated without loosing performance in conveyor applications.
