D2K UCCG ATM Series

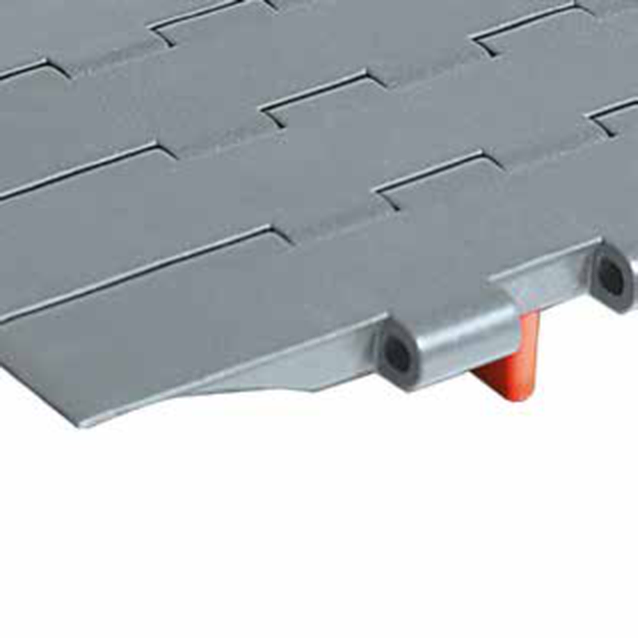

Active transfer modules UCCG ATM allow transfer of products between two 90° conveyor tracks without using dead plates. The special wing shaped module profile supports the products dynamically during transfer on the take-away belt. Rolls of 3,048 m (10 feet).
Product Configuration
Select a row to add it to your quote

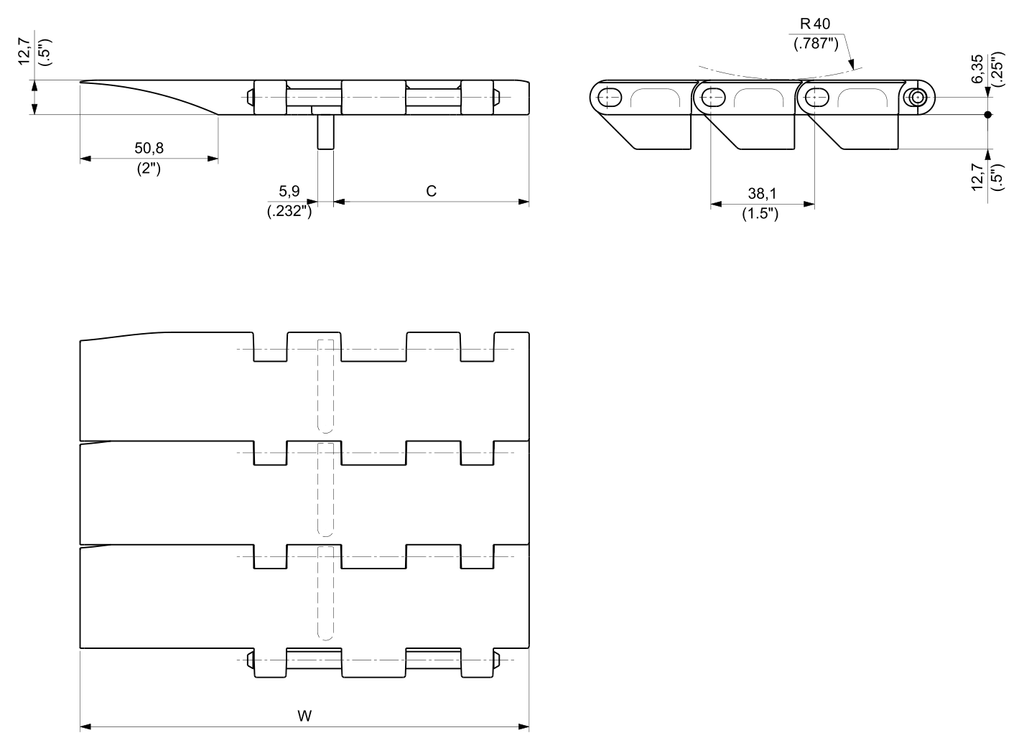

| Code | Width W | Plate thickness | Tracking guide position C | Working load | Weight |
|---|---|---|---|---|---|
D2K66100331 |
165.1 mm (6.50")
|
12.7 mm
|
71.4 mm
|
3469 N
|
2.22 kg
|
D2K66100341 |
241.3 mm (9.50")
|
12.7 mm
|
139.5 mm
|
5781 N
|
3.43 kg
|
No products match the selected filters.
Product Information
- Type
- ULTOP
- Pitch
38.1mm- Thickness
12.7mm- Material
- D2K — Special Delrin® Reinforced with Kevlar®
- Packaging
- Rolls of
3.048m
D2K — Special Delrin® Reinforced with Kevlar®
Next generation material, based on a Delrin® acetal resin reinforced with Kevlar®, developed by REGINA and Delrin (former DuPont™), able to reach the lowest coefficient of friction with maximum wear resistance. Thanks to the superior properties of DK²™, the usage of lubricants can be drastically reduced or even eliminated without loosing performance in conveyor applications.
