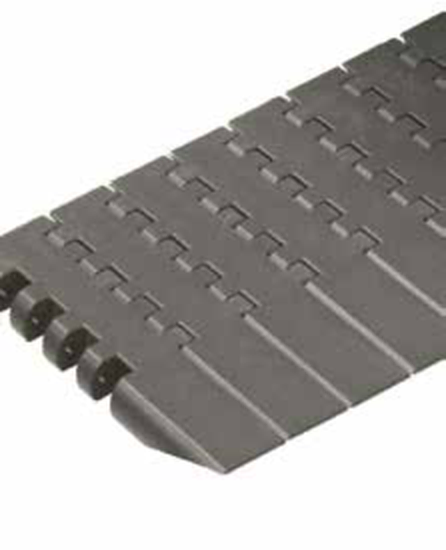

D2K USPMG ATM Series
Active transfer modules USPMG ATM series allow the transfer of the products between two 90° conveyor tracks without using dead plates. Extremely good flatness, manufacturing accuracy and low coefficient of friction make the side transfer of the products very easy. Rolls of 3,048 m (10 feet).
Product Configuration
Select a row to add it to your quote
| Code | Width W | Plate thickness | Working load | Weight |
|---|---|---|---|---|
USPMGATMD2K085S |
127.5 mm
|
12.7 mm
|
2975 N
|
1.55 kg
|
USPMGATMD2K085D |
127.5 mm
|
12.7 mm
|
2975 N
|
1.55 kg
|
No products match the selected filters.
Product Information
- Type
- Matveyor
- Pitch
25.4mm- Thickness
12.7mm- Material
- D2K — Special Delrin® Reinforced with Kevlar®
- Packaging
- Rolls of
3.048m
D2K — Special Delrin® Reinforced with Kevlar®
Next generation material, based on a Delrin® acetal resin reinforced with Kevlar®, developed by REGINA and Delrin (former DuPont™), able to reach the lowest coefficient of friction with maximum wear resistance. Thanks to the superior properties of DK²™, the usage of lubricants can be drastically reduced or even eliminated without loosing performance in conveyor applications.
