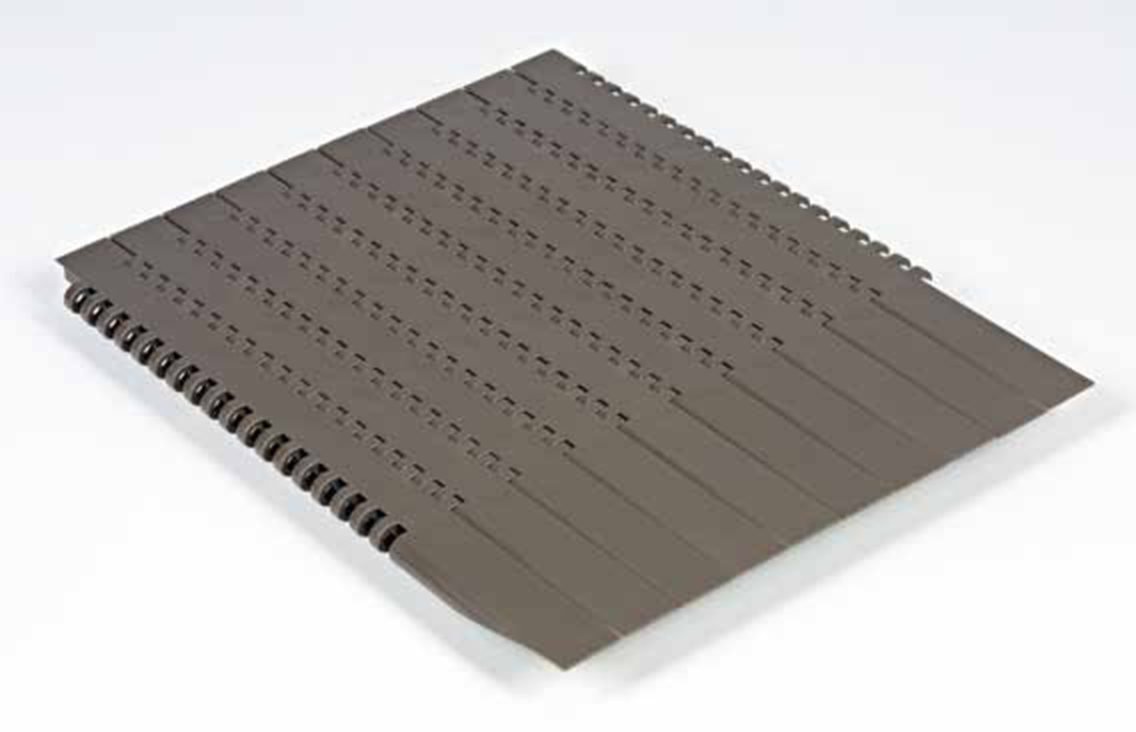

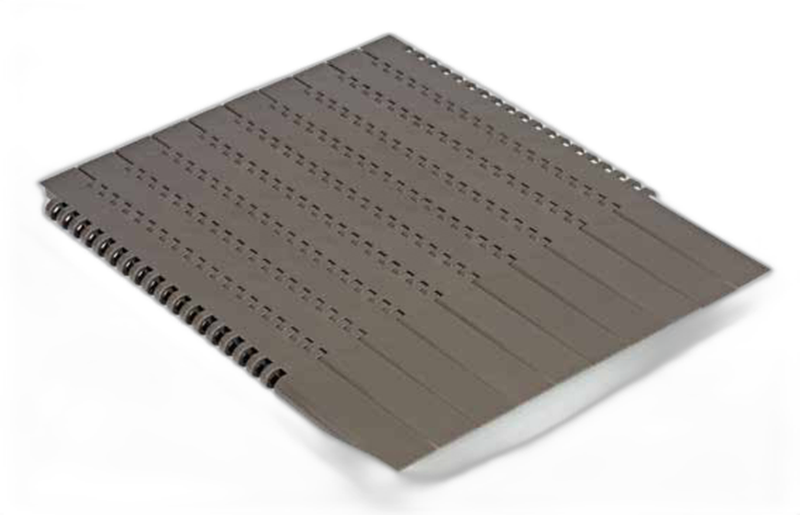

EF 7300G ATM Series

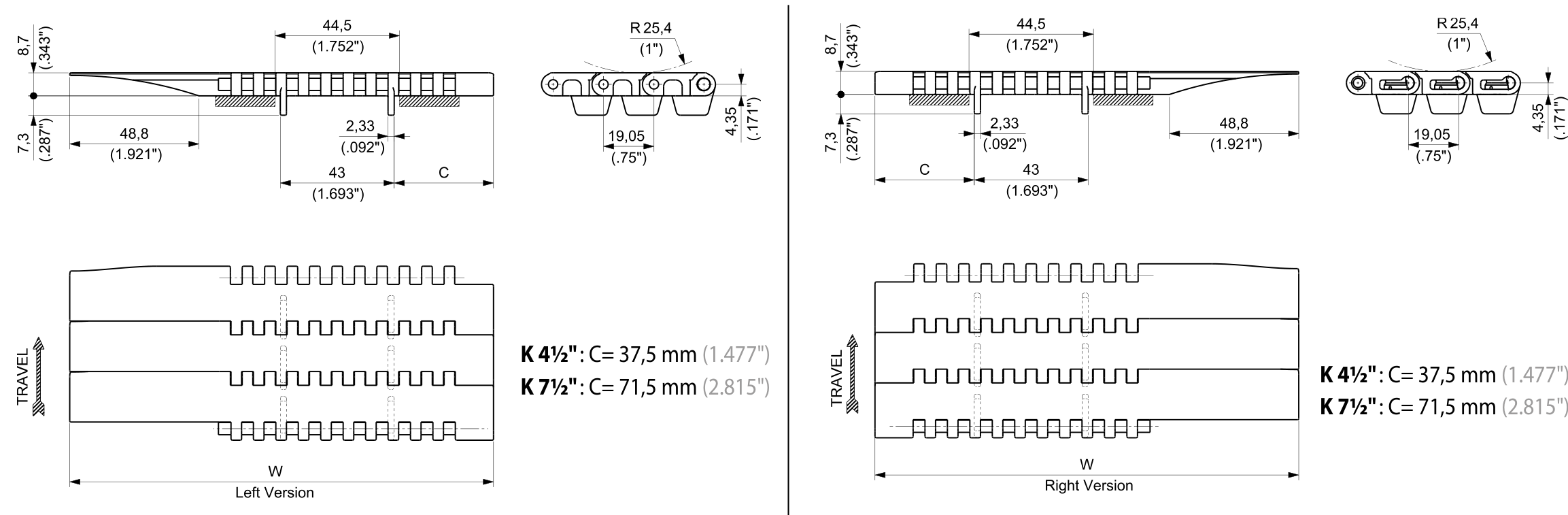

7300G ATM can be used in combination with 7300 modular belts. Active transfer modules 7300G ATM allow the transfer of products between two 90° conveyor tracks without using dead plates. The special wing shaped module profile supports the products dynamically during transfer on the take-away belts. Available left and right version. Rolls of 3,048 m (10 feet).
Product Configuration
Select a row to add it to your quote
| Code | Width W | Plate thickness | Working load | Weight |
|---|---|---|---|---|
7300GATMEF450LH |
160 mm (6.30")
|
8.7 mm
|
3290 N
|
1.28 kg
|
7300GATMEF450RH |
160 mm (6.30")
|
8.7 mm
|
3290 N
|
1.28 kg
|
7300GATMEF750LH |
236.2 mm (9.30")
|
8.7 mm
|
4370 N
|
1.99 kg
|
7300GATMEF750RH |
236.2 mm (9.30")
|
8.7 mm
|
4370 N
|
1.99 kg
|
No products match the selected filters.
Product Information
- Type
- Matveyor
- Pitch
19.05mm- Thickness
8.7mm- Material
- EF — e-F.A.S.T. Ecological Friction Abating Thermoplastic
- Packaging
- Rolls of
3.048m
EF — Ecological Friction Abating Sliding Thermoplastic (e-F.A.S.T.®)
Ultimate dry running homopolymer acetal resin developed combining REGINA field expertise with Delrin (former DuPont™) centenarian acetal resin knowledge. Today's standards for high performance filling lines require a combination of high speed and high productivity, while reducing or eliminating lubrication. REGINA e-F.A.S.T.® material is capable of exceeding such standards, thanks to its unique characteristic of delivering a much lower and constant coefficent of friction over time in dry or almost dry running conditions vs. other plastic chains.
Need help specifying this product?
Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
