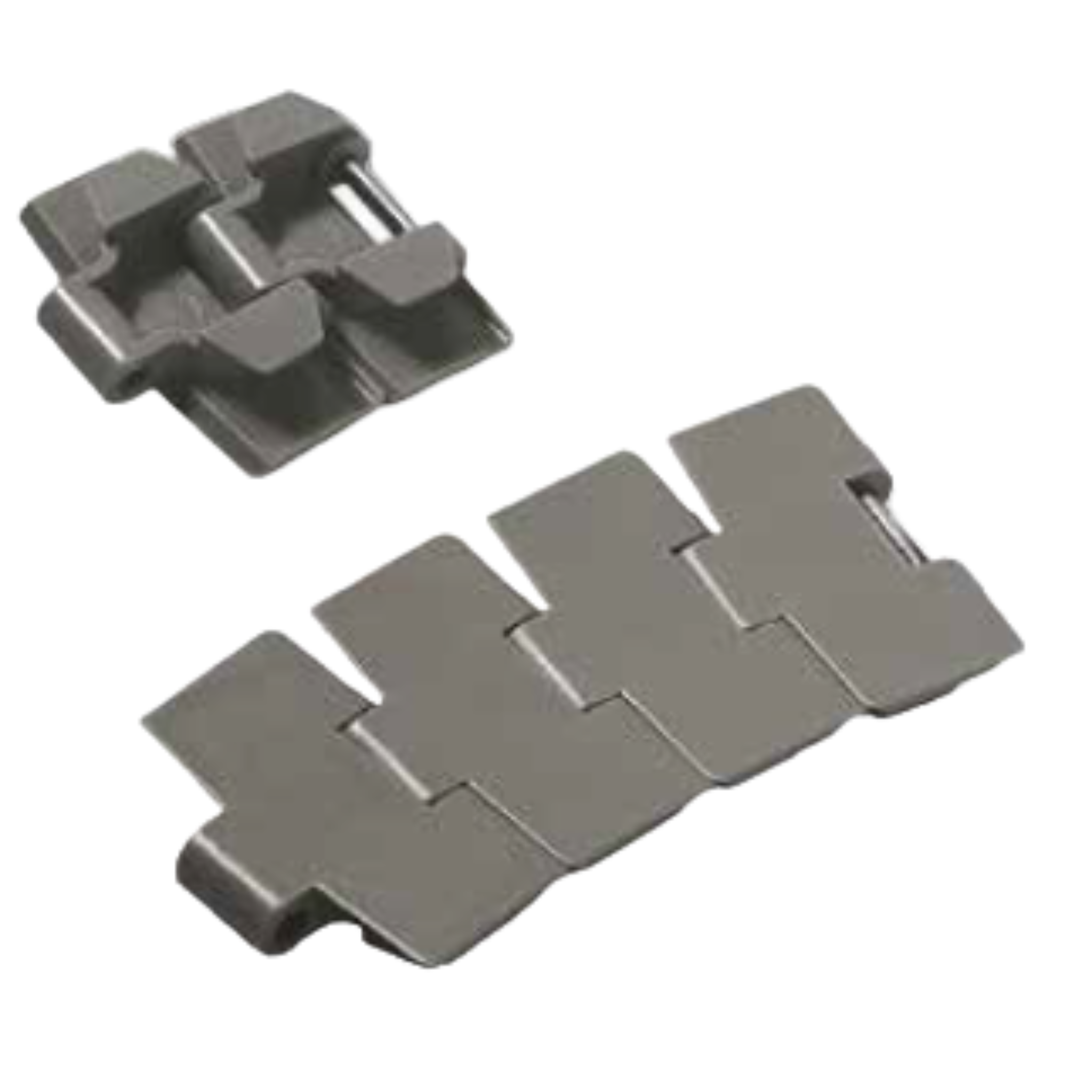

EF 880T Series
Product Configuration
Select a row to add it to your quote
| Code | Width W | Pin | Working load | Weight |
|---|---|---|---|---|
EF880TKD/000 |
K 3 ¼ (82.6 mm) | Austenitic Stainless Steel | 2000 N |
1.03 kg/m |
EF880TKRA/000 |
K 83,8 (83.8 mm) | Austenitic Stainless Steel | 2000 N |
1.04 kg/m |
EF880TKG/000 |
K 4 ½ (114.3 mm) | Austenitic Stainless Steel | 2000 N |
1.22 kg/m |
No products match the selected filters.
Product Information
- Type
- Tab
- Hinge
- Single Hinge
- Pitch
38.1mm- Thickness
4.0mm- Hinge Width
42.9mm- Material
- EF — Eco Friction Thermoplastic
- Packaging
- Rolls of
3.048m
EF — Ecological Friction Abating Sliding Thermoplastic (e-F.A.S.T.®)
Ultimate dry running homopolymer acetal resin developed combining REGINA field expertise with Delrin (former DuPont™) centenarian acetal resin knowledge. Today's standards for high performance filling lines require a combination of high speed and high productivity, while reducing or eliminating lubrication. REGINA e-F.A.S.T.® material is capable of exceeding such standards, thanks to its unique characteristic of delivering a much lower and constant coefficent of friction over time in dry or almost dry running conditions vs. other plastic chains.
Pin material (all variants): Austenitic Stainless Steel
