Regina

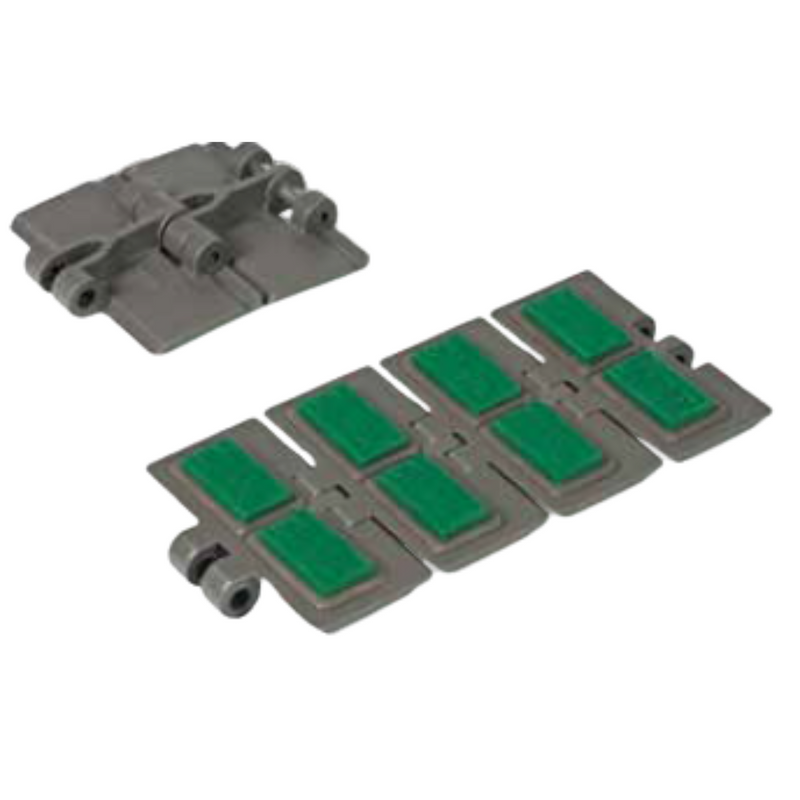

HFX 820 Series
Product Configuration
Select a row to add it to your quote
| Code | Width W | Pin | Working load | Weight |
|---|---|---|---|---|
HFX820KD/000 |
K 3 ¼ (82.6 mm) | Austenitic Stainless Steel | 1600 N |
1.0 kg/m |
HFX820KF/000 |
K 4 (101.6 mm) | Austenitic Stainless Steel | 1600 N |
1.09 kg/m |
HFX820KG/000 |
K 4 ½ (114.3 mm) | Austenitic Stainless Steel | 1600 N |
1.17 kg/m |
HFX820KH/000 |
K 6 (152.4 mm) | Austenitic Stainless Steel | 1600 N |
1.45 kg/m |
HFX820KL/000 |
K 7 ½ (190.5 mm) | Austenitic Stainless Steel | 1600 N |
1.6 kg/m |
No products match the selected filters.
Product Information
- Type
- FliteTop (Rubber Top)
- Hinge
- Single Hinge
- Pitch
38.1mm- Thickness
4.0mm- Hinge Width
41.6mm- Packaging
- Rolls of
3.048m
UP — Ultra Performance Homopolymer Delrin®
Delrin® produced by Delrin (former DuPont™) Ultra Performance special homopolymer acetal resin. Particularly suitable for applications where low coefficient of friction and contained dusting are needed.
Pin material (all variants): Austenitic Stainless Steel
