Regina

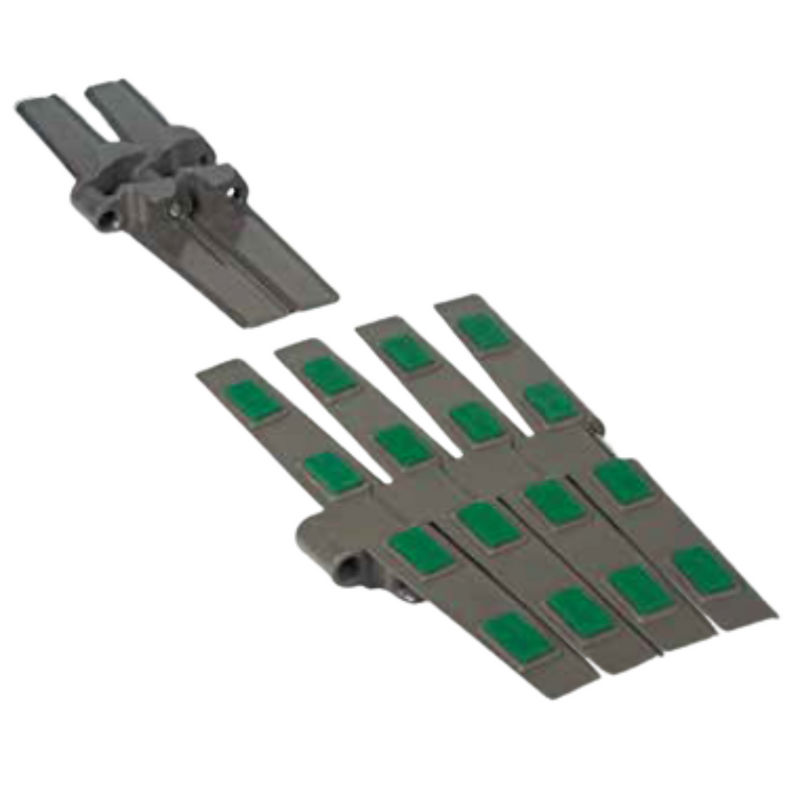

HFX 882T Series
Product Configuration
Select a row to add it to your quote
| Code | Width W | Pin | Working load | Weight |
|---|---|---|---|---|
HFX882TKG/000 |
K 4 ½ (114.3 mm) | Austenitic Stainless Steel | 3910 N |
2.25 kg/m |
HFX882TKL/000 |
K 7 ½ (190.5 mm) | Austenitic Stainless Steel | 3910 N |
2.64 kg/m |
HFX882TKM/000 |
K 10 (254.0 mm) | Austenitic Stainless Steel | 3910 N |
2.95 kg/m |
HFX882TKN/000 |
K 12 (304.8 mm) | Austenitic Stainless Steel | 3910 N |
3.25 kg/m |
No products match the selected filters.
Product Information
- Type
- Tab (Rubber Top)
- Hinge
- Single Hinge
- Pitch
38.1mm- Thickness
4.8mm- Hinge Width
57.0mm- Packaging
- Rolls of
3.048m
UP — Ultra Performance Homopolymer Delrin®
Delrin® produced by Delrin (former DuPont™) Ultra Performance special homopolymer acetal resin. Particularly suitable for applications where low coefficient of friction and contained dusting are needed.
Pin material (all variants): Austenitic Stainless Steel
