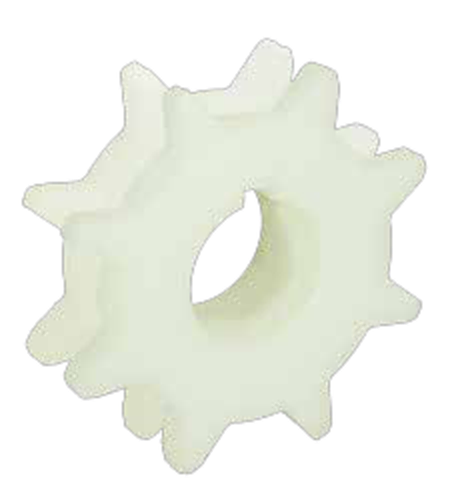

Machined Double Row Solid Drive and Idler Sprockets — 2556 Series

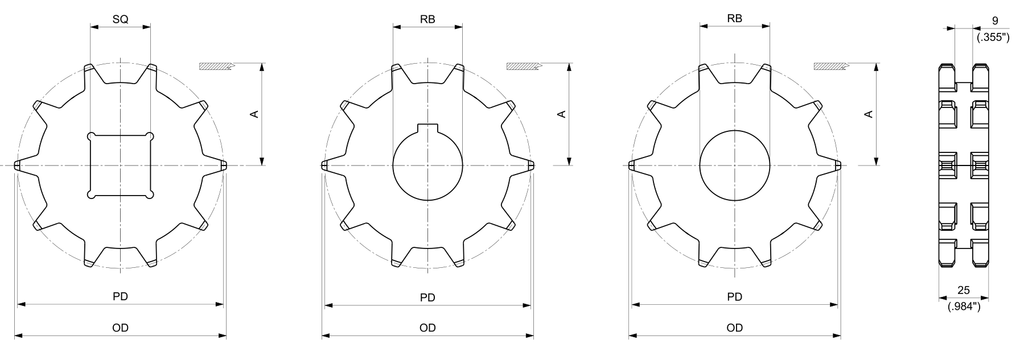

Machined Double Row Solid Drive and Idler Sprockets for the Regina 2556 Series (Regina Conveyor Catalogue p267). Suitable for chains: 2556HTB, 2556HTB-SR. For the 8T sprocket, some shaft dimensions require the shaft to be machined down to avoid interference with the belt tabs — contact Regina. In case of round bore, diameter is indicated. In case of square bore, side of the square is indicated. Metric round bore drive sprockets are supplied without setscrew.
Product Configuration
Select a row to add it to your quote
| Code | N. Teeth | Bore size | Bore type | PD | OD | Weight |
|---|---|---|---|---|---|---|
MPBAT255508D30 |
8
|
30 mm
|
Round — Drive
|
82.97 mm
|
86.5 mm
|
0.08 kg
|
MPBAF255508D30 |
8
|
30 mm
|
Round — Idler
|
82.97 mm
|
86.5 mm
|
0.08 kg
|
MPBAT255508D35 |
8
|
35 mm
|
Round — Drive
|
82.97 mm
|
86.5 mm
|
0.07 kg
|
MPBAF255508D35 |
8
|
35 mm
|
Round — Idler
|
82.97 mm
|
86.5 mm
|
0.07 kg
|
MPBAT255510D30 |
10
|
30 mm
|
Round — Drive
|
102.75 mm
|
106.5 mm
|
0.15 kg
|
MPBAF255510D30 |
10
|
30 mm
|
Round — Idler
|
102.75 mm
|
106.5 mm
|
0.15 kg
|
MPBAT255510D35 |
10
|
35 mm
|
Round — Drive
|
102.75 mm
|
106.5 mm
|
0.14 kg
|
MPBAF255510D35 |
10
|
35 mm
|
Round — Idler
|
102.75 mm
|
106.5 mm
|
0.14 kg
|
MPBAQ255510D40 |
10
|
40 mm
|
Square — Drive/Idler
|
102.75 mm
|
106.5 mm
|
0.13 kg
|
MPBAT255510D40 |
10
|
40 mm
|
Round — Drive
|
102.75 mm
|
106.5 mm
|
0.13 kg
|
MPBAF255510D40 |
10
|
40 mm
|
Round — Idler
|
102.75 mm
|
106.5 mm
|
0.13 kg
|
No products match the selected filters.
Product Information
- Material
- Sprockets: Polyamide (PA).
Sprockets: Polyamide (PA).
