Machined Double Row Split Drive and Idler Sprockets — 2556 Series — Regina Matveyor
Regina

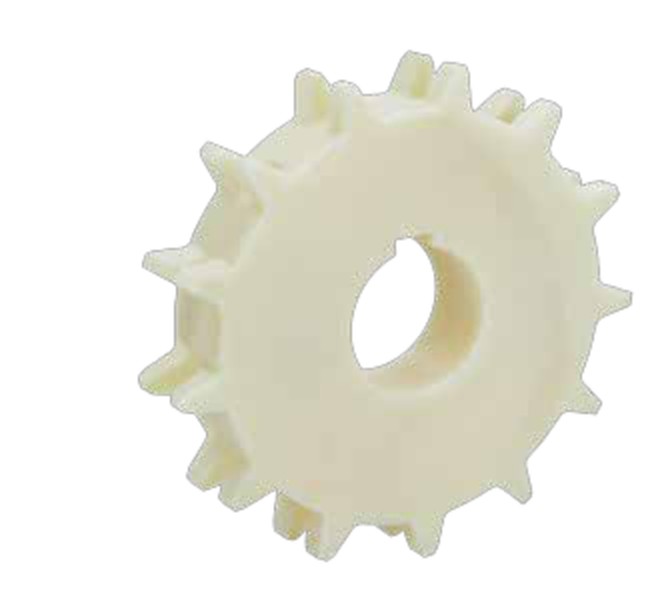

Machined Double Row Split Drive and Idler Sprockets — 2556 Series

Sprockets for Modular Belts · 2556

Machined Double Row Split Drive and Idler Sprockets for the Regina 2556 Series (Regina Conveyor Catalogue p268). Suitable for chains: 2556HTB, 2556HTB-SR. In case of round bore, diameter is indicated. In case of square bore, side of the square is indicated. Metric round bore drive sprockets are supplied without setscrew.

Product Configuration

Select a row to add it to your quote

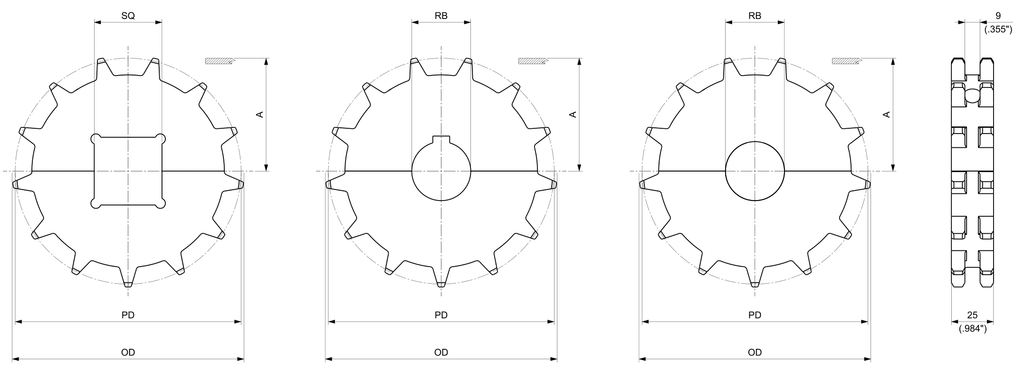

Code N. TeethBore sizeBore typePDOD Weight
MPBAST255510D30 10 30 mm Round — Drive 102.75 mm 106.5 mm 0.18 kg
MPBASF255510D30 10 30 mm Round — Idler 102.75 mm 106.5 mm 0.18 kg
MPBAST255510D35 10 35 mm Round — Drive 102.75 mm 106.5 mm 0.17 kg
MPBASF255510D35 10 35 mm Round — Idler 102.75 mm 106.5 mm 0.17 kg
MPBASQ255510D40 10 40 mm Square — Drive/Idler 102.75 mm 106.5 mm 0.16 kg
MPBAST255510D40 10 40 mm Round — Drive 102.75 mm 106.5 mm 0.16 kg
MPBASF255510D40 10 40 mm Round — Idler 102.75 mm 106.5 mm 0.16 kg
MPBAST255513D30 13 30 mm Round — Drive 132.67 mm 137.5 mm 0.3 kg
MPBASF255513D30 13 30 mm Round — Idler 132.67 mm 137.5 mm 0.3 kg
MPBAST255513D35 13 35 mm Round — Drive 132.67 mm 137.5 mm 0.29 kg
MPBASF255513D35 13 35 mm Round — Idler 132.67 mm 137.5 mm 0.29 kg
MPBASQ255513D40 13 40 mm Square — Drive/Idler 132.67 mm 137.5 mm 0.28 kg
MPBAST255513D40 13 40 mm Round — Drive 132.67 mm 137.5 mm 0.28 kg
MPBASF255513D40 13 40 mm Round — Idler 132.67 mm 137.5 mm 0.28 kg
MPBAST255515D30 15 30 mm Round — Drive 152.71 mm 158 mm 0.41 kg
MPBASF255515D30 15 30 mm Round — Idler 152.71 mm 158 mm 0.41 kg
MPBAST255515D35 15 35 mm Round — Drive 152.71 mm 158 mm 0.41 kg
MPBASF255515D35 15 35 mm Round — Idler 152.71 mm 158 mm 0.41 kg
MPBASQ255515D40 15 40 mm Square — Drive/Idler 152.71 mm 158 mm 0.4 kg
MPBAST255515D40 15 40 mm Round — Drive 152.71 mm 158 mm 0.4 kg
MPBASF255515D40 15 40 mm Round — Idler 152.71 mm 158 mm 0.4 kg
MPBAST255516D30 16 30 mm Round — Drive 162.75 mm 168 mm 0.48 kg
MPBASF255516D30 16 30 mm Round — Idler 162.75 mm 168 mm 0.48 kg
MPBAST255516D35 16 35 mm Round — Drive 162.75 mm 168 mm 0.47 kg
MPBASF255516D35 16 35 mm Round — Idler 162.75 mm 168 mm 0.47 kg
MPBASQ255516D40 16 40 mm Square — Drive/Idler 162.75 mm 168 mm 0.46 kg
MPBAST255516D40 16 40 mm Round — Drive 162.75 mm 168 mm 0.46 kg
MPBASF255516D40 16 40 mm Round — Idler 162.75 mm 168 mm 0.46 kg

Product Information

Material
Sprockets: Polyamide (PA). Screws: Stainless Steel (SS).
