Regina

Machined Solid Drive and Idler Sprockets — 1010 Series

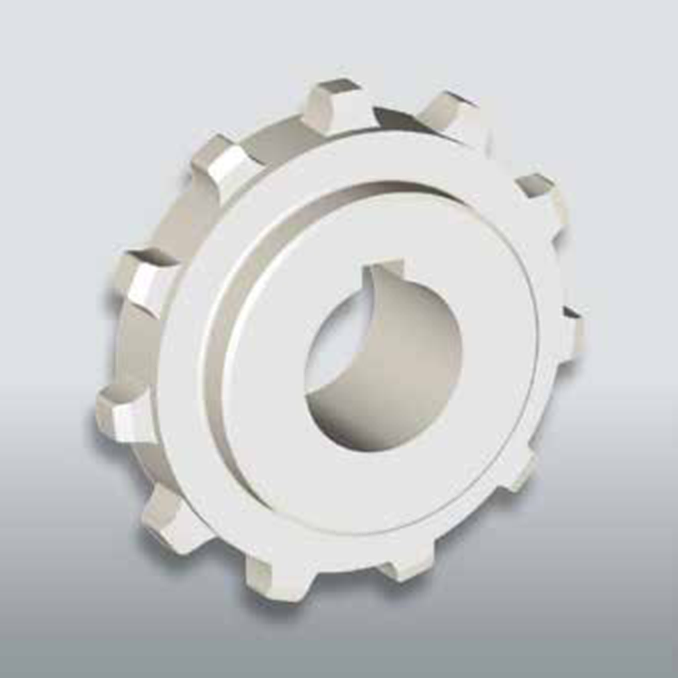

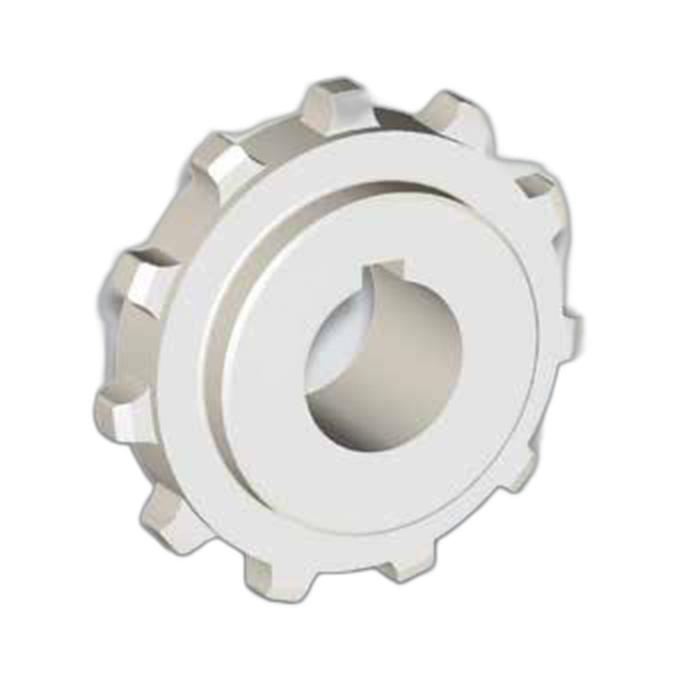

Name: Machined Solid Drive and Idler Sprockets — 1010 Series
Brand: Regina

Sprockets for Modular Belts · 1010

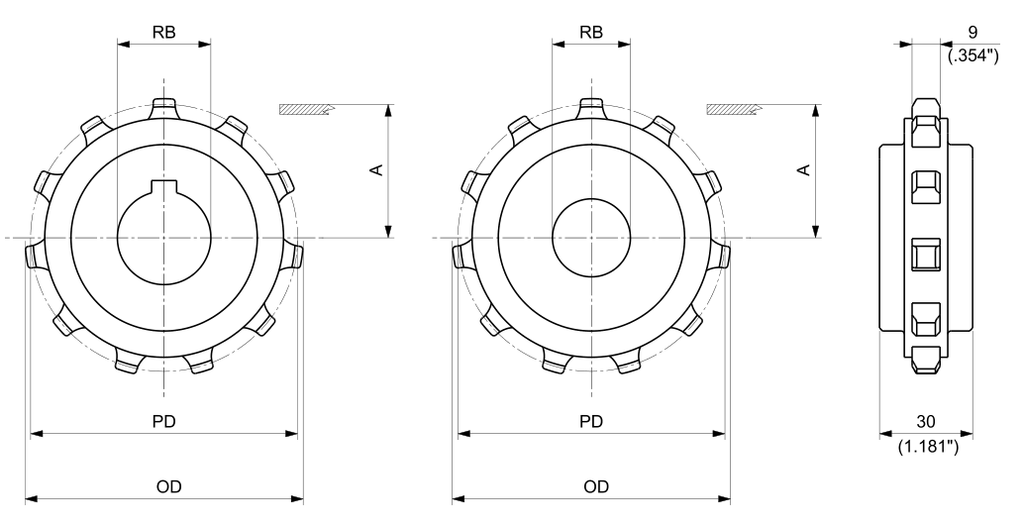

Machined Solid Drive and Idler Sprockets for the Regina 1010 Series (Regina Conveyor Catalogue p218). Suitable for chains: 1500 / 1501, 1600, HF 1600, HFS 1600, RR 1500, RR 1600, 1110. Round bore — diameter is indicated. Metric round bore drive sprockets are supplied without setscrew.

Select a row to add it to your quote

Configuration

Code	N. Teeth	Bore size	Bore type	PD	OD	Weight
`MPBAT10101025`	`10`	`25` mm	`Round — Drive`	`82.2` mm	`81.3` mm	`0.09` kg
`MPBAF10101025`	`10`	`25` mm	`Round — Idler`	`82.2` mm	`81.3` mm	`0.09` kg
`MPBAT10101030`	`10`	`30` mm	`Round — Drive`	`82.2` mm	`81.3` mm	`0.08` kg
`MPBAF10101030`	`10`	`30` mm	`Round — Idler`	`82.2` mm	`81.3` mm	`0.08` kg
`MPBAT10101125`	`11`	`25` mm	`Round — Drive`	`90.16` mm	`89.6` mm	`0.11` kg
`MPBAF10101125`	`11`	`25` mm	`Round — Idler`	`90.16` mm	`89.6` mm	`0.11` kg
`MPBAT10101130`	`11`	`30` mm	`Round — Drive`	`90.16` mm	`89.6` mm	`0.11` kg
`MPBAF10101130`	`11`	`30` mm	`Round — Idler`	`90.16` mm	`89.6` mm	`0.11` kg
