Machined Solid Drive and Idler Sprockets — 2556 Series (SR)
Machined Solid Drive and Idler Sprockets for the Regina 2556 Series (Regina Conveyor Catalogue p269). These sprockets are used for 2556HTB-SR belts only. One drive and one idler sprocket are needed for each belt regardless of its width. For the 8T sprocket, some shaft dimensions require the shaft to be machined down to avoid interference with the belt tabs — contact Regina. In case of round bore, diameter is indicated. In case of square bore, side of the square is indicated. Metric round bore drive sprockets are supplied without setscrew.
Product Configuration
Select a row to add it to your quote

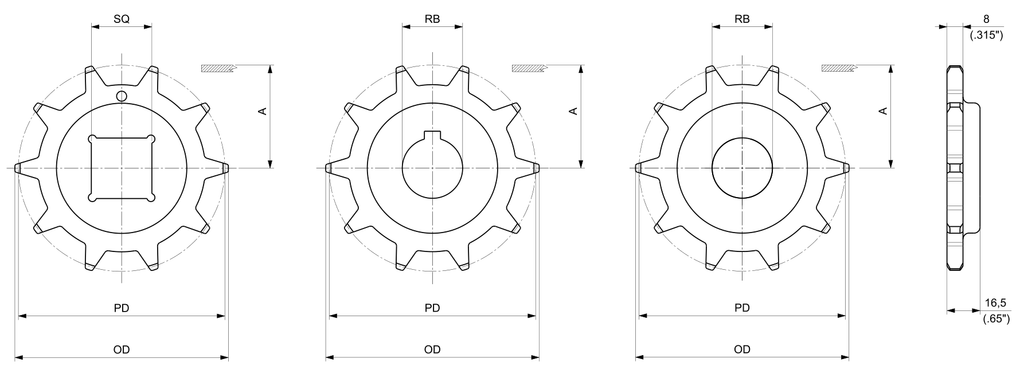

| Code | N. Teeth | Bore size | Bore type | PD | OD | Weight |
|---|---|---|---|---|---|---|
MPBAT25550830 |
8
|
30 mm
|
Round — Drive
|
82.97 mm
|
86.5 mm
|
0.04 kg
|
MPBAF25550830 |
8
|
30 mm
|
Round — Idler
|
82.97 mm
|
86.5 mm
|
0.04 kg
|
MPBAT25550835 |
8
|
35 mm
|
Round — Drive
|
82.97 mm
|
86.5 mm
|
0.03 kg
|
MPBAF25550835 |
8
|
35 mm
|
Round — Idler
|
82.97 mm
|
86.5 mm
|
0.03 kg
|
MPBAT25551030 |
10
|
30 mm
|
Round — Drive
|
102.75 mm
|
106.5 mm
|
0.08 kg
|
MPBAF25551030 |
10
|
30 mm
|
Round — Idler
|
102.75 mm
|
106.5 mm
|
0.08 kg
|
MPBAT25551035 |
10
|
35 mm
|
Round — Drive
|
102.75 mm
|
106.5 mm
|
0.07 kg
|
MPBAF25551035 |
10
|
35 mm
|
Round — Idler
|
102.75 mm
|
106.5 mm
|
0.07 kg
|
MPBAQ25551040 |
10
|
40 mm
|
Square — Drive/Idler
|
102.75 mm
|
106.5 mm
|
0.06 kg
|
MPBAT25551040 |
10
|
40 mm
|
Round — Drive
|
102.75 mm
|
106.5 mm
|
0.06 kg
|
MPBAF25551040 |
10
|
40 mm
|
Round — Idler
|
102.75 mm
|
106.5 mm
|
0.06 kg
|
No products match the selected filters.
Product Information
- Material
- Sprockets: Polyamide (PA).
Sprockets: Polyamide (PA).
Compatible Components
Need help specifying this product?
Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
