Machined Solid Drive and Idler Sprockets — 4650 Series

Sprockets for Modular Belts · 4650

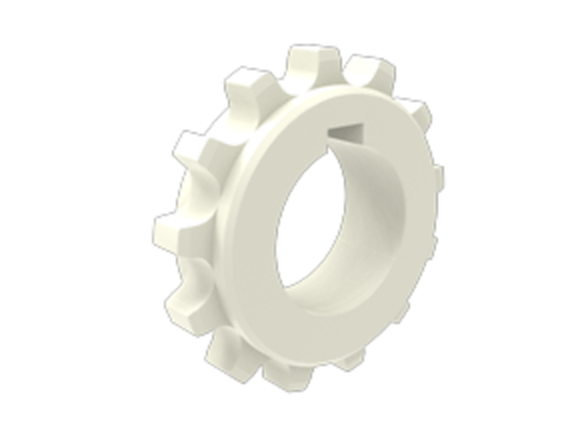

Machined Solid Drive and Idler Sprockets for the Regina 4650 Series (Regina Conveyor Catalogue p280). Suitable for belts: 4650, HF 4650. All references are 13T with a 30 mm round bore; the number and diameters of sprockets to use depend on belt width and radius — selection guideline tables on Regina Conveyor Catalogue p281–282. Round bore, 30 mm — supplied without setscrew.

Product Configuration

Select a row to add it to your quote

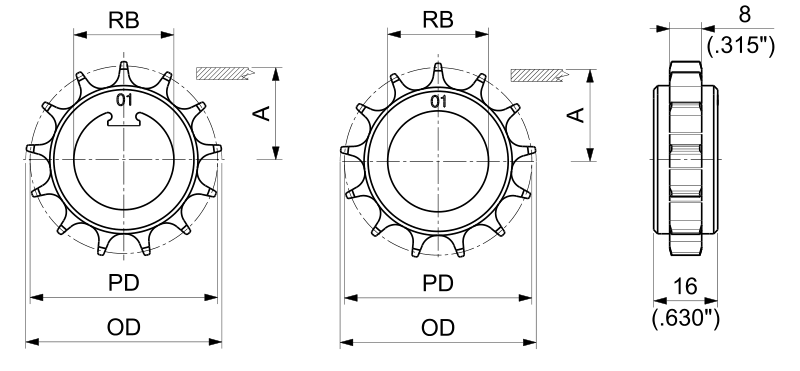

Code Sprocket reference N.N. TeethBore sizePDOD Weight
MPBAT4650133001 01 13 30 mm 46.86 mm 49 mm 0.01 kg
MPBAF4650133001 01 13 30 mm 46.86 mm 49 mm 0.01 kg
MPBAT4650133002 02 13 30 mm 53.06 mm 55 mm 0.02 kg
MPBAF4650133002 02 13 30 mm 53.06 mm 55 mm 0.02 kg
MPBAT4650133003 03 13 30 mm 59.26 mm 61 mm 0.03 kg
MPBAF4650133003 03 13 30 mm 59.26 mm 61 mm 0.03 kg
MPBAT4650133004 04 13 30 mm 65.46 mm 67 mm 0.03 kg
MPBAF4650133004 04 13 30 mm 65.46 mm 67 mm 0.03 kg
MPBAT4650133005 05 13 30 mm 71.65 mm 73 mm 0.05 kg
MPBAF4650133005 05 13 30 mm 71.65 mm 73 mm 0.05 kg
MPBAT4650133006 06 13 30 mm 77.85 mm 79.5 mm 0.06 kg
MPBAF4650133006 06 13 30 mm 77.85 mm 79.5 mm 0.06 kg
MPBAT4650133007 07 13 30 mm 84.03 mm 85.5 mm 0.07 kg
MPBAF4650133007 07 13 30 mm 84.03 mm 85.5 mm 0.07 kg
MPBAT4650133008 08 13 30 mm 90.26 mm 92 mm 0.09 kg
MPBAF4650133008 08 13 30 mm 90.26 mm 92 mm 0.09 kg
MPBAT4650133009 09 13 30 mm 96.44 mm 98.5 mm 0.1 kg
MPBAF4650133009 09 13 30 mm 96.44 mm 98.5 mm 0.1 kg
MPBAT4650133010 10 13 30 mm 102.63 mm 104.5 mm 0.12 kg
MPBAF4650133010 10 13 30 mm 102.63 mm 104.5 mm 0.12 kg
MPBAT4650133011 11 13 30 mm 108.89 mm 109 mm 0.14 kg
MPBAF4650133011 11 13 30 mm 108.89 mm 109 mm 0.14 kg
MPBAT4650133012 12 13 30 mm 115.16 mm 115.5 mm 0.15 kg
MPBAF4650133012 12 13 30 mm 115.16 mm 115.5 mm 0.15 kg
MPBAT4650133013 13 13 30 mm 121.43 mm 121.5 mm 0.17 kg
MPBAF4650133013 13 13 30 mm 121.43 mm 121.5 mm 0.17 kg
MPBAT4650133014 14 13 30 mm 127.61 mm 127.5 mm 0.2 kg
MPBAF4650133014 14 13 30 mm 127.61 mm 127.5 mm 0.2 kg
MPBAT4650133015 15 13 30 mm 133.88 mm 133.5 mm 0.22 kg
MPBAF4650133015 15 13 30 mm 133.88 mm 133.5 mm 0.22 kg
MPBAT4650133016 16 13 30 mm 139.82 mm 140 mm 0.24 kg
MPBAF4650133016 16 13 30 mm 139.82 mm 140 mm 0.24 kg
MPBAT4650133017 17 13 30 mm 146.08 mm 146 mm 0.26 kg
MPBAF4650133017 17 13 30 mm 146.08 mm 146 mm 0.26 kg
MPBAT4650133018 18 13 30 mm 152.27 mm 152 mm 0.27 kg
MPBAF4650133018 18 13 30 mm 152.27 mm 152 mm 0.27 kg

Product Information

Material
Sprockets: Polyamide (PA).

Compatible Components

Need help specifying this product?

Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
