Machined Solid Drive and Idler Sprockets — USP Series

Name: Machined Solid Drive and Idler Sprockets — USP Series
Brand: Regina

Sprockets for Modular Belts · USP

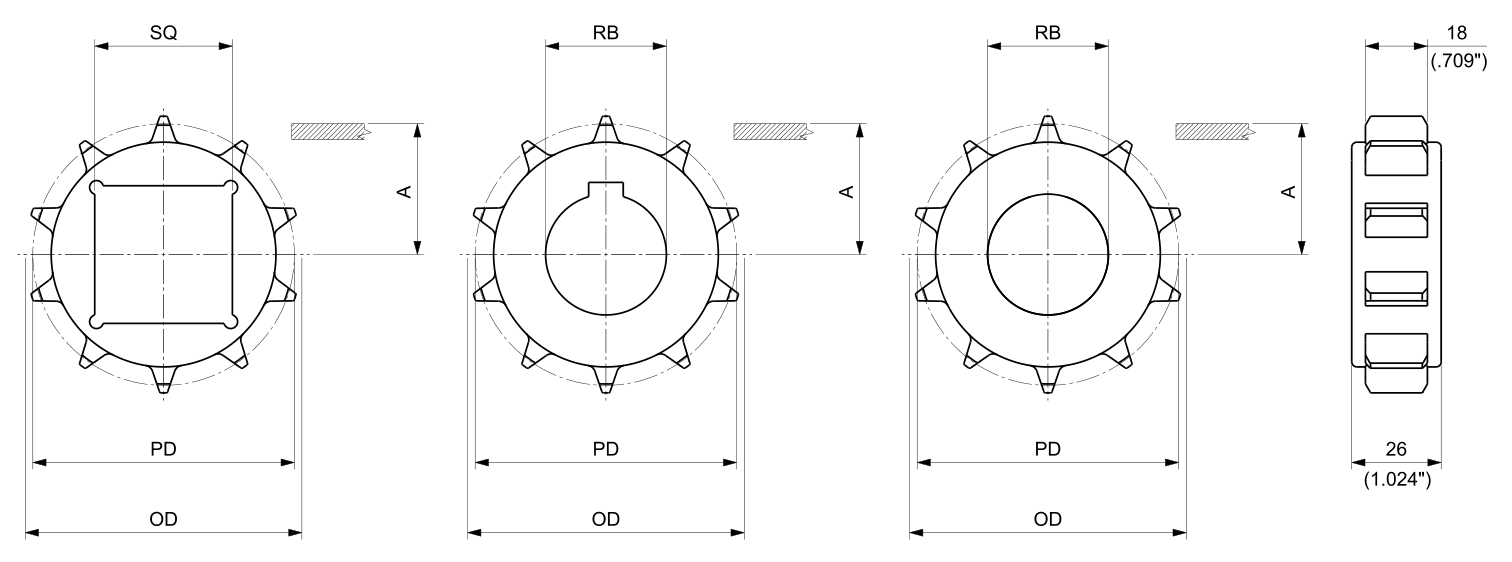

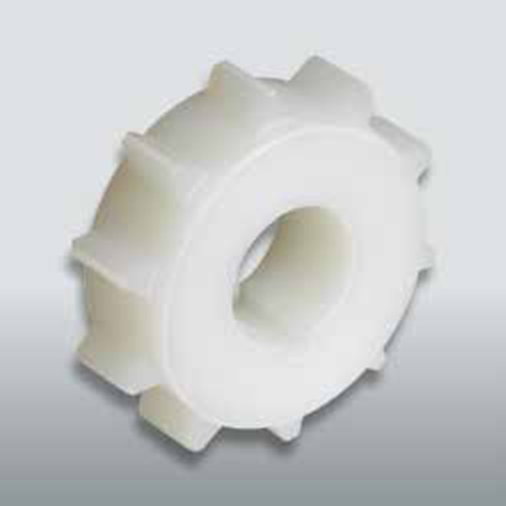

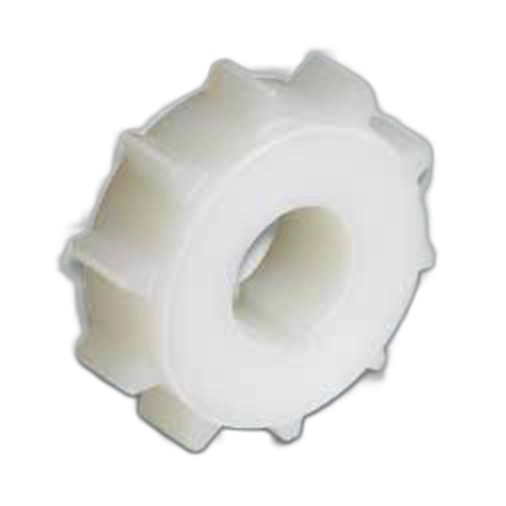

Machined Solid Drive and Idler Sprockets for the Regina USP Series (Regina Conveyor Catalogue p244). Suitable for chains: USPM, USP, LBP USPM, LBP XSPM, HF USPM / HFS USPM. In case of round bore, diameter is indicated. In case of square bore, side of the square is indicated. Metric round bore drive sprockets are supplied without setscrew.

Select a row to add it to your quote

Configuration

Code	N. Teeth	Bore size	Bore type	PD	OD	Weight
`MPBATUSP0820`	`8`	`20` mm	`Round — Drive`	`66.37` mm	`63.8` mm	`0.05` kg
`MPBAFUSP0820`	`8`	`20` mm	`Round — Idler`	`66.37` mm	`63.8` mm	`0.05` kg
`MPBATUSP0825`	`8`	`25` mm	`Round — Drive`	`66.37` mm	`63.8` mm	`0.05` kg
`MPBAFUSP0825`	`8`	`25` mm	`Round — Idler`	`66.37` mm	`63.8` mm	`0.05` kg
`MPBATUSP0830`	`8`	`30` mm	`Round — Drive`	`66.37` mm	`63.8` mm	`0.04` kg
`MPBAFUSP0830`	`8`	`30` mm	`Round — Idler`	`66.37` mm	`63.8` mm	`0.04` kg
`MPBAQUSP1030`	`10`	`30` mm	`Square — Drive/Idler`	`82.19` mm	`80.4` mm	`0.09` kg
`MPBATUSP1030`	`10`	`30` mm	`Round — Drive`	`82.19` mm	`80.4` mm	`0.09` kg
`MPBAFUSP1030`	`10`	`30` mm	`Round — Idler`	`82.19` mm	`80.4` mm	`0.09` kg
`MPBATUSP1035`	`10`	`35` mm	`Round — Drive`	`82.19` mm	`80.4` mm	`0.08` kg
`MPBAFUSP1035`	`10`	`35` mm	`Round — Idler`	`82.19` mm	`80.4` mm	`0.08` kg
`MPBAQUSP1040`	`10`	`40` mm	`Square — Drive/Idler`	`82.19` mm	`80.4` mm	`0.07` kg
`MPBATUSP1040`	`10`	`40` mm	`Round — Drive`	`82.19` mm	`80.4` mm	`0.07` kg
`MPBAFUSP1040`	`10`	`40` mm	`Round — Idler`	`82.19` mm	`80.4` mm	`0.07` kg
