Machined Solid Drive Sprockets — 8300 Series

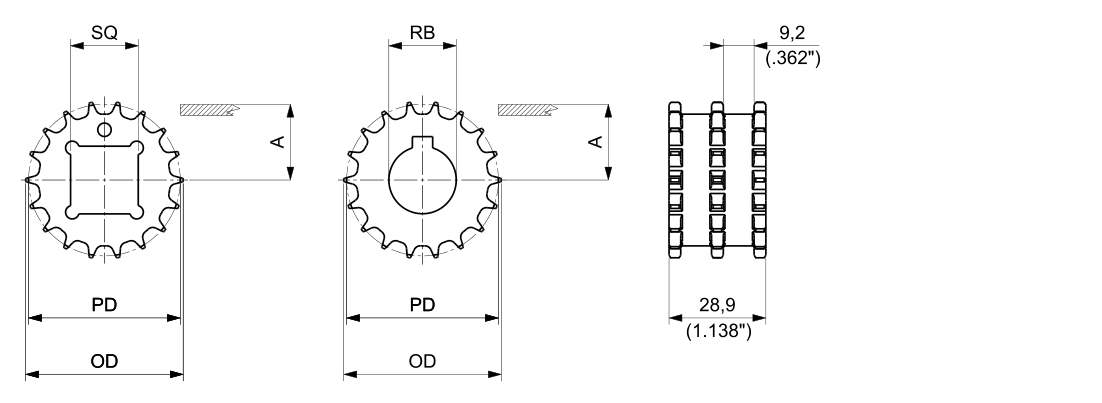

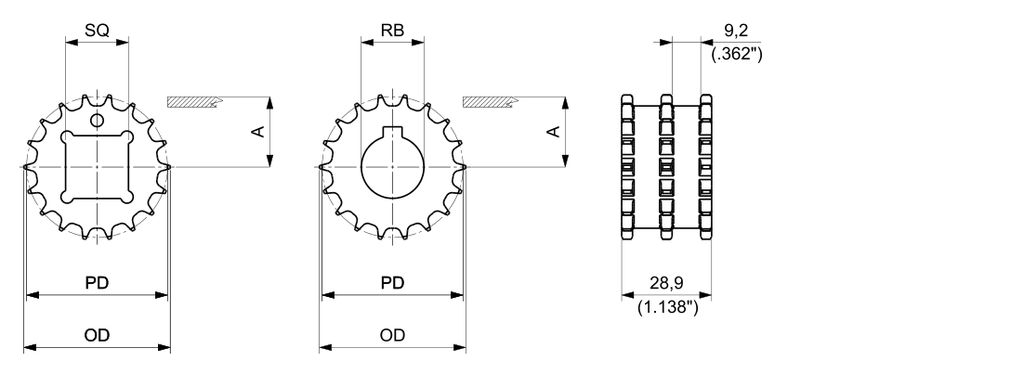

Machined Solid Drive Sprockets for the Regina 8300 Series (Regina Conveyor Catalogue p164). Suitable for chains: 8300. In case of round bore, diameter is indicated. In case of square bore, side of the square is indicated. Metric round bore drive sprockets are supplied without setscrew.
Product Configuration
Select a row to add it to your quote
| Code | N. Teeth | Bore size | Bore type | PD | OD | Weight |
|---|---|---|---|---|---|---|
MPBAQ83001820 |
18
|
20 mm
|
Square — Drive/Idler
|
46.07 mm
|
47 mm
|
0.03 kg
|
MPBAT83001820 |
18
|
20 mm
|
Round — Drive
|
46.07 mm
|
47 mm
|
0.03 kg
|
MPBAT83001825 |
18
|
25 mm
|
Round — Drive
|
46.07 mm
|
47 mm
|
0.03 kg
|
MPBAT83002420 |
24
|
20 mm
|
Round — Drive
|
61.29 mm
|
62.3 mm
|
0.07 kg
|
MPBAQ83002425 |
24
|
25 mm
|
Square — Drive/Idler
|
61.29 mm
|
62.3 mm
|
0.06 kg
|
MPBAT83002425 |
24
|
25 mm
|
Round — Drive
|
61.29 mm
|
62.3 mm
|
0.06 kg
|
MPBAT83002430 |
24
|
30 mm
|
Round — Drive
|
61.29 mm
|
62.3 mm
|
0.05 kg
|
No products match the selected filters.
Product Information
- Material

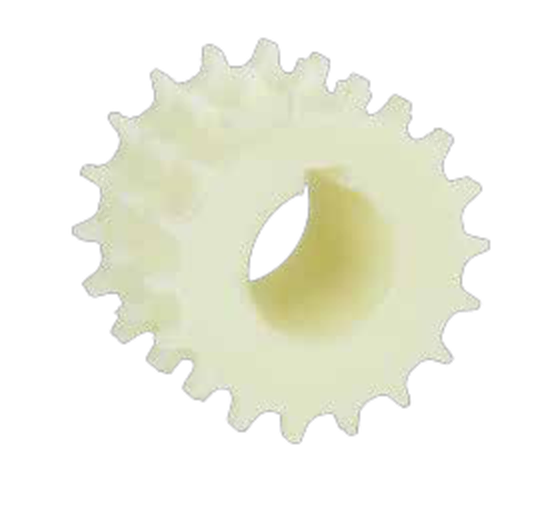

- Sprockets: Polyamide (PA).
Sprockets: Polyamide (PA).
Compatible Components
Need help specifying this product?
Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
