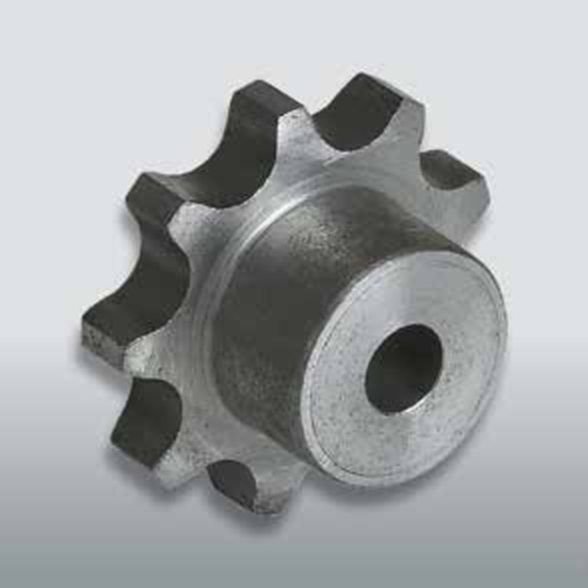

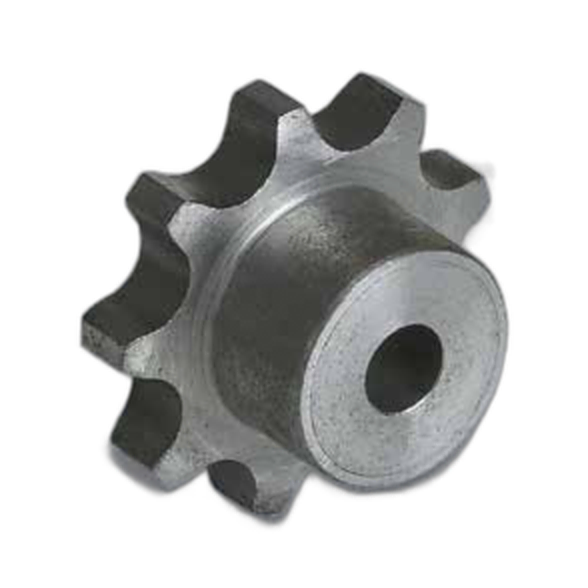

Machined Solid Sprockets — UCC138 Series

Sprockets for Modular Belts · UCC 138

Machined Solid Sprockets for the Regina UCC 138 Series (Regina Conveyor Catalogue p299). Suitable for chains: UCC138. Round bore — diameter is indicated (plain bore).

Product Configuration

Select a row to add it to your quote

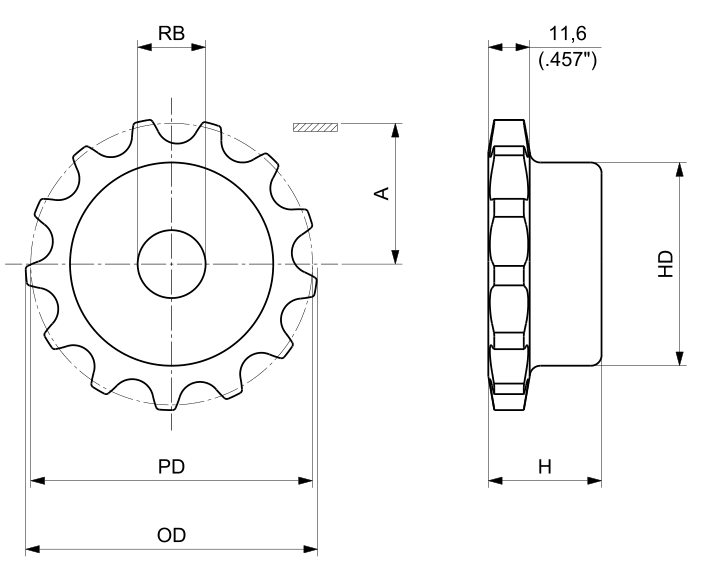

Code N. TeethBore sizePDODHub diameter HDHub width H Weight
CMA021380900 9 12 mm 55.7 mm 56.9 mm 32 mm 30 mm 0.31 kg
CMA021381100 11 14 mm 67.62 mm 69.5 mm 45 mm 35 mm 0.57 kg
CMA021381300 13 14 mm 79.6 mm 81.9 mm 57 mm 35 mm 0.87 kg
CMA021381500 15 14 mm 91.63 mm 94.2 mm 69 mm 35 mm 1.24 kg
CMA021381700 17 16 mm 103.67 mm 106.5 mm 80 mm 35 mm 1.63 kg
CMA021381900 19 16 mm 115.74 mm 118.8 mm 80 mm 35 mm 1.82 kg
CMA021382100 21 20 mm 127.82 mm 131 mm 90 mm 40 mm 2.48 kg
CMA021382300 23 20 mm 139.9 mm 143.2 mm 90 mm 40 mm 2.71 kg
CMA021382500 25 20 mm 152 mm 155.4 mm 90 mm 40 mm 2.97 kg

Product Information

Material
Sprockets: Carbon Steel (S).
