Regina

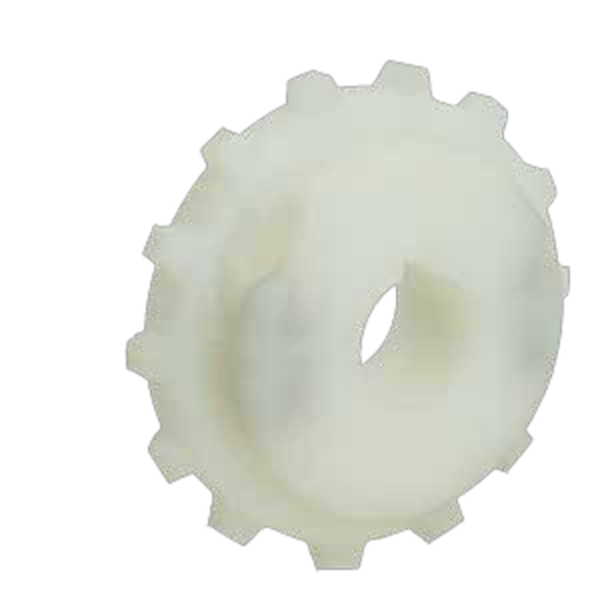

Machined Split Drive and Idler Sprockets — 1010 Series

Name: Machined Split Drive and Idler Sprockets — 1010 Series
Brand: Regina

Sprockets for Modular Belts · 1010

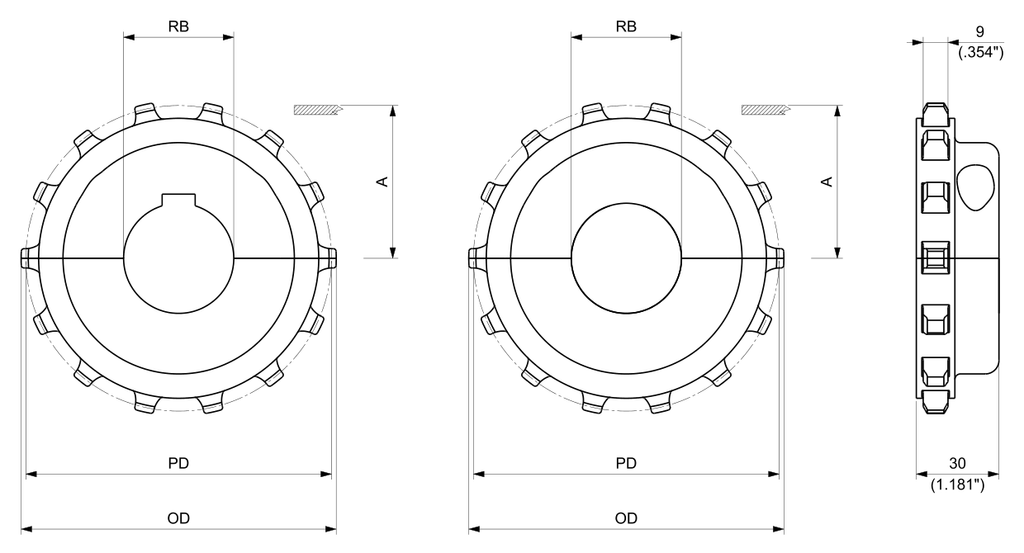

Machined Split Drive and Idler Sprockets for the Regina 1010 Series (Regina Conveyor Catalogue p221). Suitable for chains: 1500 / 1501, 1600, HF 1600, HFS 1600, RR 1500, RR 1600, 1110. Round bore — diameter is indicated. Metric round bore drive sprockets are supplied without setscrew.

Select a row to add it to your quote

Configuration

Code	N. Teeth	Bore size	Bore type	PD	OD	Weight
`MPBAST10101425`	`14`	`25` mm	`Round — Drive`	`114.15` mm	`114.4` mm	`0.26` kg
`MPBASF10101425`	`14`	`25` mm	`Round — Idler`	`114.15` mm	`114.4` mm	`0.26` kg
`MPBAST10101430`	`14`	`30` mm	`Round — Drive`	`114.15` mm	`114.4` mm	`0.25` kg
`MPBASF10101430`	`14`	`30` mm	`Round — Idler`	`114.15` mm	`114.4` mm	`0.25` kg
`MPBAST10101435`	`14`	`35` mm	`Round — Drive`	`114.15` mm	`114.4` mm	`0.24` kg
`MPBASF10101435`	`14`	`35` mm	`Round — Idler`	`114.15` mm	`114.4` mm	`0.24` kg
`MPBAST10101440`	`14`	`40` mm	`Round — Drive`	`114.15` mm	`114.4` mm	`0.23` kg
`MPBASF10101440`	`14`	`40` mm	`Round — Idler`	`114.15` mm	`114.4` mm	`0.23` kg
