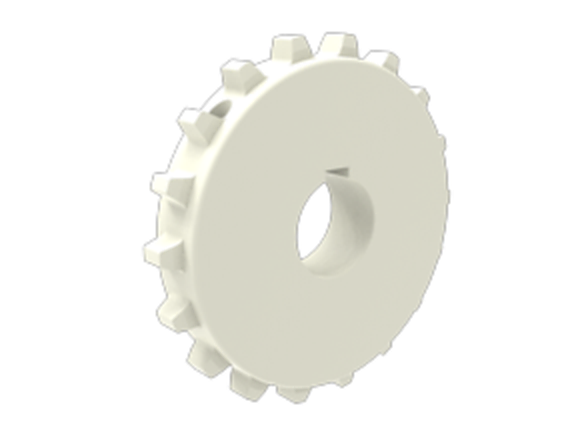

Machined Split Drive and Idler Sprockets — 1305 Series

Sprockets for Modular Belts · 1305

Machined Split Drive and Idler Sprockets for the Regina 1305 Series (Regina Conveyor Catalogue p252). Suitable for chains: 1305, 1405. In case of round bore, diameter is indicated. In case of square bore, side of the square is indicated. Metric round bore drive sprockets are supplied without setscrew.

Product Configuration

Select a row to add it to your quote

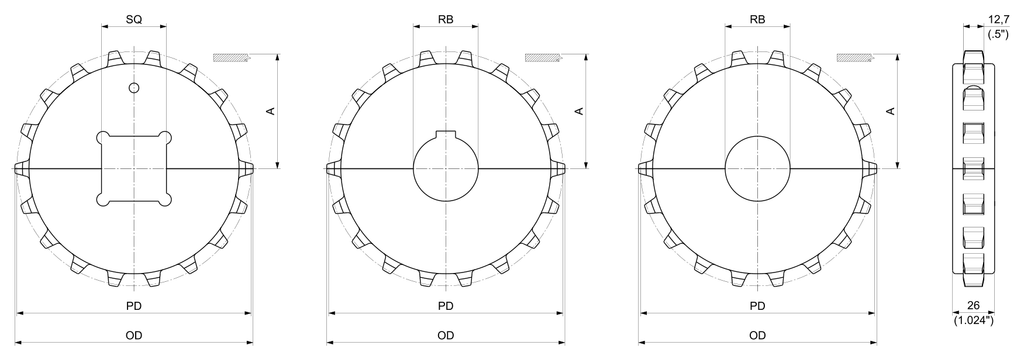

Code N. TeethBore sizeBore typePDOD Weight
MPBAST13051630 16 30 mm Round — Drive 130.2 mm 130.6 mm 0.33 kg
MPBASF13051630 16 30 mm Round — Idler 130.2 mm 130.6 mm 0.33 kg
MPBAST13051635 16 35 mm Round — Drive 130.2 mm 130.6 mm 0.32 kg
MPBASQ13051640 16 40 mm Square — Drive/Idler 130.2 mm 130.6 mm 0.31 kg
MPBAST13051640 16 40 mm Round — Drive 130.2 mm 130.6 mm 0.31 kg
MPBASF13051640 16 40 mm Round — Idler 130.2 mm 130.6 mm 0.31 kg
MPBAST13051730 17 30 mm Round — Drive 138.23 mm 139.4 mm 0.37 kg
MPBASF13051730 17 30 mm Round — Idler 138.23 mm 139.4 mm 0.37 kg
MPBAST13051735 17 35 mm Round — Drive 138.23 mm 139.4 mm 0.36 kg
MPBASQ13051740 17 40 mm Square — Drive/Idler 138.23 mm 139.4 mm 0.35 kg
MPBAST13051740 17 40 mm Round — Drive 138.23 mm 139.4 mm 0.35 kg
MPBASF13051740 17 40 mm Round — Idler 138.23 mm 139.4 mm 0.35 kg
MPBAST13051830 18 30 mm Round — Drive 146.27 mm 147.4 mm 0.42 kg
MPBASF13051830 18 30 mm Round — Idler 146.27 mm 147.4 mm 0.42 kg
MPBAST13051835 18 35 mm Round — Drive 146.27 mm 147.4 mm 0.41 kg
MPBASF13051835 18 35 mm Round — Idler 146.27 mm 147.4 mm 0.41 kg
MPBASQ13051840 18 40 mm Square — Drive/Idler 146.27 mm 147.4 mm 0.4 kg
MPBAST13051840 18 40 mm Round — Drive 146.27 mm 147.4 mm 0.4 kg
MPBASF13051840 18 40 mm Round — Idler 146.27 mm 147.4 mm 0.4 kg
MPBAST13051850 18 50 mm Round — Drive 146.27 mm 147.4 mm 0.38 kg
MPBASQ13051860 18 60 mm Square — Drive/Idler 146.27 mm 147.4 mm 0.35 kg
MPBAST13051860 18 60 mm Round — Drive 146.27 mm 147.4 mm 0.35 kg
MPBASQ13051865 18 65 mm Square — Drive/Idler 146.27 mm 147.4 mm 0.34 kg
MPBAST13051930 19 30 mm Round — Drive 154.32 mm 155.4 mm 0.47 kg
MPBASF13051930 19 30 mm Round — Idler 154.32 mm 155.4 mm 0.47 kg
MPBAST13051935 19 35 mm Round — Drive 154.32 mm 155.4 mm 0.46 kg
MPBASF13051935 19 35 mm Round — Idler 154.32 mm 155.4 mm 0.46 kg
MPBASQ13051940 19 40 mm Square — Drive/Idler 154.32 mm 155.4 mm 0.45 kg
MPBAST13051940 19 40 mm Round — Drive 154.32 mm 155.4 mm 0.45 kg
MPBASF13051940 19 40 mm Round — Idler 154.32 mm 155.4 mm 0.45 kg
MPBASQ13051950 19 50 mm Square — Drive/Idler 154.32 mm 155.4 mm 0.43 kg
MPBAST13051950 19 50 mm Round — Drive 154.32 mm 155.4 mm 0.43 kg
MPBASQ13051960 19 60 mm Square — Drive/Idler 154.32 mm 155.4 mm 0.39 kg
MPBASQ13051965 19 65 mm Square — Drive/Idler 154.32 mm 155.4 mm 0.37 kg
MPBAST13052030 20 30 mm Round — Drive 162.37 mm 163.5 mm 0.53 kg
MPBASF13052030 20 30 mm Round — Idler 162.37 mm 163.5 mm 0.53 kg
MPBAST13052035 20 35 mm Round — Drive 162.37 mm 163.5 mm 0.52 kg
MPBASF13052035 20 35 mm Round — Idler 162.37 mm 163.5 mm 0.52 kg
MPBASQ13052040 20 40 mm Square — Drive/Idler 162.37 mm 163.5 mm 0.51 kg
MPBAST13052040 20 40 mm Round — Drive 162.37 mm 163.5 mm 0.51 kg
MPBASF13052040 20 40 mm Round — Idler 162.37 mm 163.5 mm 0.51 kg
MPBAST13052050 20 50 mm Round — Drive 162.37 mm 163.5 mm 0.49 kg
MPBASQ13052060 20 60 mm Square — Drive/Idler 162.37 mm 163.5 mm 0.46 kg
MPBAST13052060 20 60 mm Round — Drive 162.37 mm 163.5 mm 0.46 kg
MPBASQ13052065 20 65 mm Square — Drive/Idler 162.37 mm 163.5 mm 0.42 kg
MPBAST13052130 21 30 mm Round — Drive 170.42 mm 171.6 mm 0.59 kg
MPBASF13052130 21 30 mm Round — Idler 170.42 mm 171.6 mm 0.59 kg
MPBAST13052135 21 35 mm Round — Drive 170.42 mm 171.6 mm 0.58 kg
MPBASF13052135 21 35 mm Round — Idler 170.42 mm 171.6 mm 0.58 kg
MPBASQ13052140 21 40 mm Square — Drive/Idler 170.42 mm 171.6 mm 0.57 kg
MPBAST13052140 21 40 mm Round — Drive 170.42 mm 171.6 mm 0.57 kg
MPBASF13052140 21 40 mm Round — Idler 170.42 mm 171.6 mm 0.57 kg
MPBASQ13052150 21 50 mm Square — Drive/Idler 170.42 mm 171.6 mm 0.55 kg
MPBAST13052150 21 50 mm Round — Drive 170.42 mm 171.6 mm 0.55 kg
MPBASQ13052160 21 60 mm Square — Drive/Idler 170.42 mm 171.6 mm 0.52 kg
MPBAST13052160 21 60 mm Round — Drive 170.42 mm 171.6 mm 0.52 kg
MPBASQ13052165 21 65 mm Square — Drive/Idler 170.42 mm 171.6 mm 0.48 kg

Product Information

Material
Sprockets: Polyamide (PA). Screws: Stainless Steel (SS). Nuts: Brass (B).

Compatible Components
