Machined Split Drive and Idler Sprockets — 2556 Series (SR)

Sprockets for Modular Belts · 2556

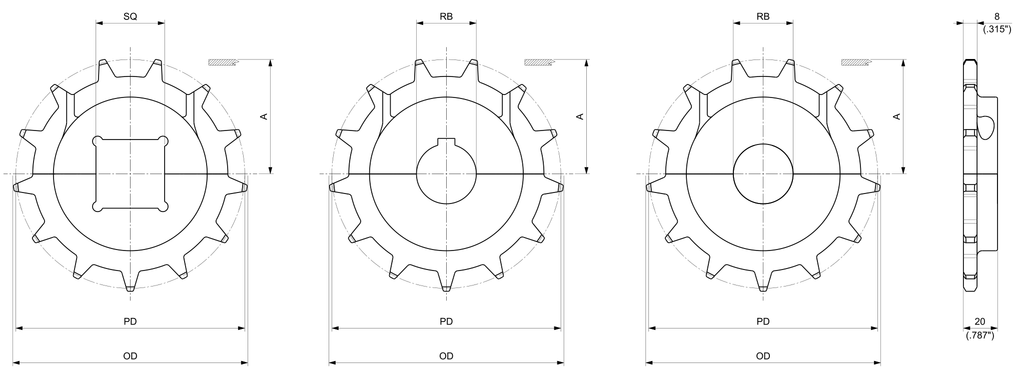

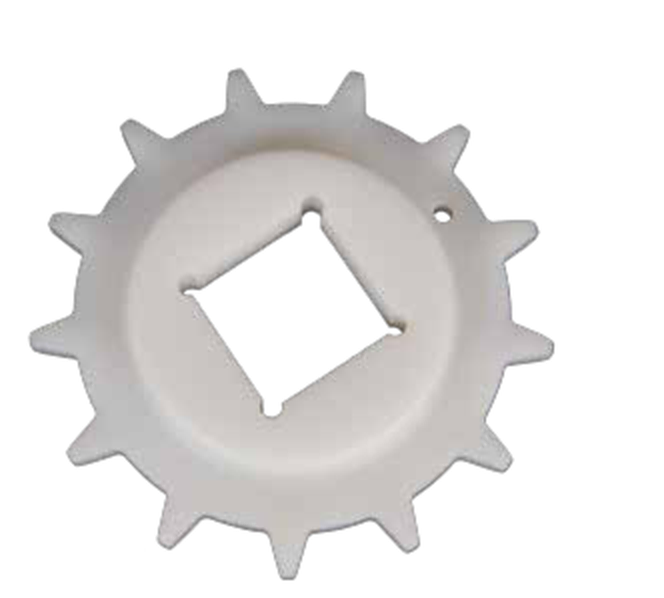

Machined Split Drive and Idler Sprockets for the Regina 2556 Series (Regina Conveyor Catalogue p270). These sprockets are used for 2556HTB-SR belts only. One drive and one idler sprocket are needed for each belt regardless of its width. In case of round bore, diameter is indicated. In case of square bore, side of the square is indicated. Metric round bore drive sprockets are supplied without setscrew.

Product Configuration

Select a row to add it to your quote

Code N. TeethBore sizeBore typePDOD Weight
MPBAST25551030 10 30 mm Round — Drive 102.75 mm 106.5 mm 0.11 kg
MPBASF25551030 10 30 mm Round — Idler 102.75 mm 106.5 mm 0.11 kg
MPBAST25551035 10 35 mm Round — Drive 102.75 mm 106.5 mm 0.1 kg
MPBASF25551035 10 35 mm Round — Idler 102.75 mm 106.5 mm 0.1 kg
MPBAST25551330 13 30 mm Round — Drive 132.67 mm 137.5 mm 0.2 kg
MPBASF25551330 13 30 mm Round — Idler 132.67 mm 137.5 mm 0.2 kg
MPBAST25551335 13 35 mm Round — Drive 132.67 mm 137.5 mm 0.19 kg
MPBASF25551335 13 35 mm Round — Idler 132.67 mm 137.5 mm 0.19 kg
MPBASQ25551340 13 40 mm Square — Drive/Idler 132.67 mm 137.5 mm 0.18 kg
MPBAST25551340 13 40 mm Round — Drive 132.67 mm 137.5 mm 0.18 kg
MPBASF25551340 13 40 mm Round — Idler 132.67 mm 137.5 mm 0.18 kg
MPBAST25551530 15 30 mm Round — Drive 152.71 mm 158 mm 0.26 kg
MPBASF25551530 15 30 mm Round — Idler 152.71 mm 158 mm 0.26 kg
MPBAST25551535 15 35 mm Round — Drive 152.71 mm 158 mm 0.26 kg
MPBASF25551535 15 35 mm Round — Idler 152.71 mm 158 mm 0.26 kg
MPBASQ25551540 15 40 mm Square — Drive/Idler 152.71 mm 158 mm 0.25 kg
MPBAST25551540 15 40 mm Round — Drive 152.71 mm 158 mm 0.25 kg
MPBASF25551540 15 40 mm Round — Idler 152.71 mm 158 mm 0.25 kg
MPBAST25551630 16 30 mm Round — Drive 162.75 mm 168 mm 0.29 kg
MPBASF25551630 16 30 mm Round — Idler 162.75 mm 168 mm 0.29 kg
MPBAST25551635 16 35 mm Round — Drive 162.75 mm 168 mm 0.28 kg
MPBASF25551635 16 35 mm Round — Idler 162.75 mm 168 mm 0.28 kg
MPBASQ25551640 16 40 mm Square — Drive/Idler 162.75 mm 168 mm 0.27 kg
MPBAST25551640 16 40 mm Round — Drive 162.75 mm 168 mm 0.27 kg
MPBASF25551640 16 40 mm Round — Idler 162.75 mm 168 mm 0.27 kg

Product Information

Material
Sprockets: Polyamide (PA). Screws: Stainless Steel (SS).

Compatible Components
