Machined Split Drive and Idler Sprockets — 8300 Series

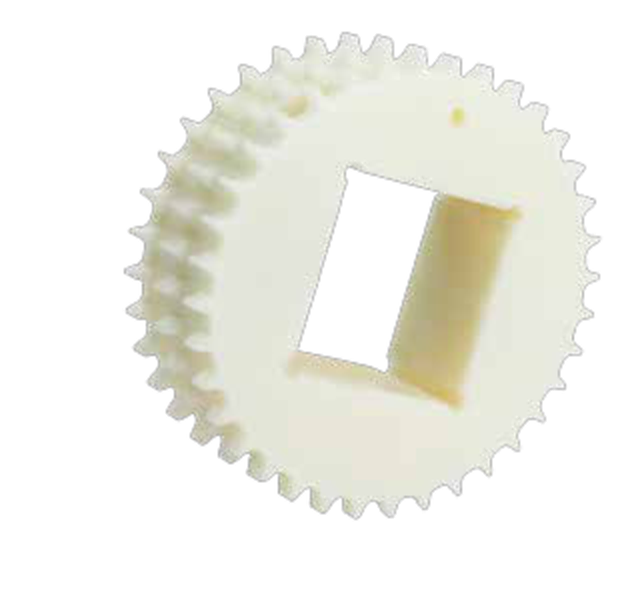

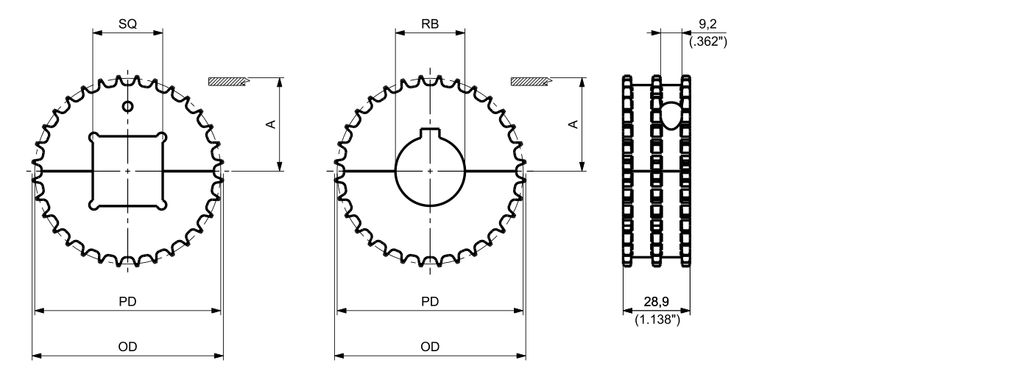

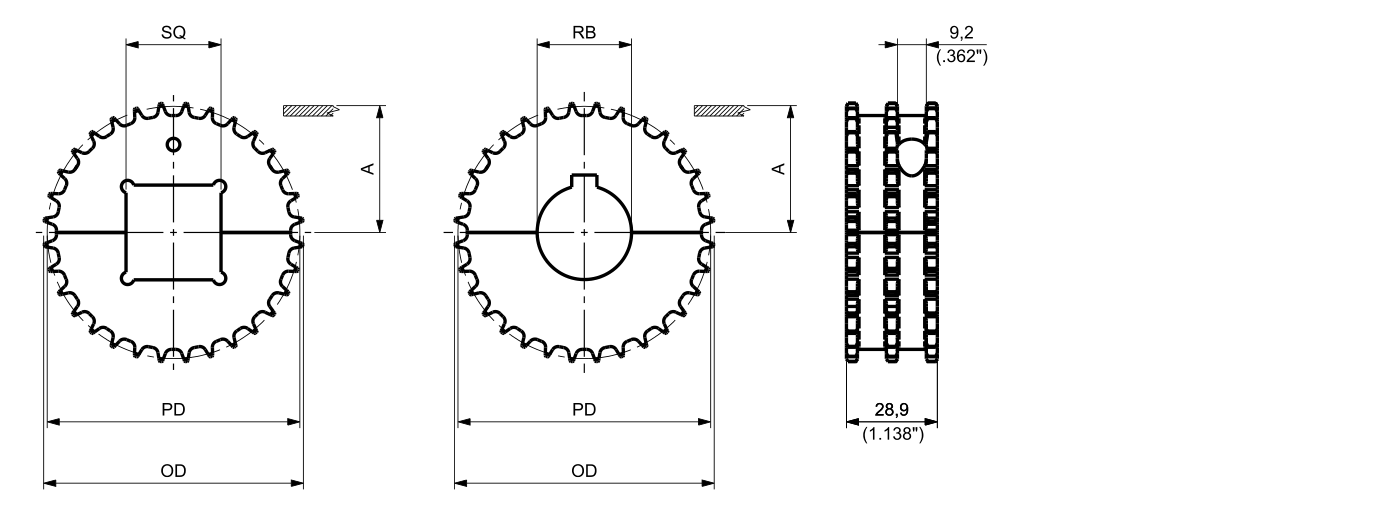

Machined Split Drive and Idler Sprockets for the Regina 8300 Series (Regina Conveyor Catalogue p165). Suitable for chains: 8300. In case of round bore, diameter is indicated. In case of square bore, side of the square is indicated. Metric round bore drive sprockets are supplied without setscrew.
Product Configuration
Select a row to add it to your quote
| Code | N. Teeth | Bore size | Bore type | PD | OD | Weight |
|---|---|---|---|---|---|---|
MPBAST83003225 |
32
|
25 mm
|
Round — Drive
|
81.59 mm
|
82.6 mm
|
0.14 kg
|
MPBASQ83003230 |
32
|
30 mm
|
Square — Drive/Idler
|
81.59 mm
|
82.6 mm
|
0.13 kg
|
MPBAST83003230 |
32
|
30 mm
|
Round — Drive
|
81.59 mm
|
82.6 mm
|
0.13 kg
|
MPBAST83003235 |
32
|
35 mm
|
Round — Drive
|
81.59 mm
|
82.6 mm
|
0.13 kg
|
MPBASQ83003240 |
32
|
40 mm
|
Square — Drive/Idler
|
81.59 mm
|
82.6 mm
|
0.12 kg
|
MPBAST83003240 |
32
|
40 mm
|
Round — Drive
|
81.59 mm
|
82.6 mm
|
0.12 kg
|
MPBAST83003625 |
36
|
25 mm
|
Round — Drive
|
91.79 mm
|
92.7 mm
|
0.2 kg
|
MPBASQ83003630 |
36
|
30 mm
|
Square — Drive/Idler
|
91.79 mm
|
92.7 mm
|
0.19 kg
|
MPBAST83003630 |
36
|
30 mm
|
Round — Drive
|
91.79 mm
|
92.7 mm
|
0.19 kg
|
MPBAST83003635 |
36
|
35 mm
|
Round — Drive
|
91.79 mm
|
92.7 mm
|
0.18 kg
|
MPBASQ83003640 |
36
|
40 mm
|
Square — Drive/Idler
|
91.79 mm
|
92.7 mm
|
0.17 kg
|
MPBAST83003640 |
36
|
40 mm
|
Round — Drive
|
91.79 mm
|
92.7 mm
|
0.17 kg
|
No products match the selected filters.
Product Information
- Material
- Sprockets: Polyamide (PA). Screws: Stainless Steel (SS). Nuts: Brass (B).
Sprockets: Polyamide (PA). Screws: Stainless Steel (SS). Nuts: Brass (B).
