Machined Split Supporting Wheels — 2556 Series — Regina Matveyor
Regina

Machined Split Supporting Wheels — 2556 Series

Sprockets for Modular Belts · 2556

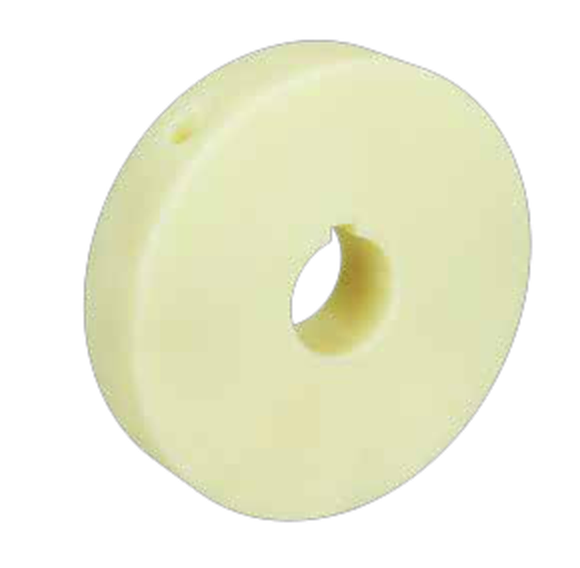

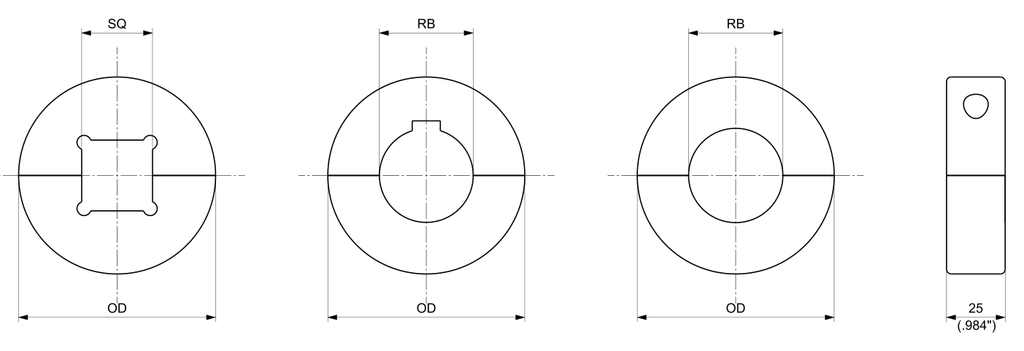

Machined Split Supporting Wheels for the Regina 2556 Series (Regina Conveyor Catalogue p271). Two supporting wheels are needed (for drive and idler shaft) for each belt regardless of its width. For more information on the correct position of these wheels contact Regina. In case of round bore, diameter is indicated. In case of square bore, side of the square is indicated. Metric round bore drive sprockets are supplied without setscrew.

Product Configuration

Select a row to add it to your quote

Code N. TeethBore sizeBore typeOD Weight
CC255001 8 30 mm Round — Drive 63 mm 0.08 kg
CC255029 8 30 mm Round — Idler 63 mm 0.08 kg
CC255002 8 35 mm Round — Drive 63 mm 0.07 kg
CC255030 8 35 mm Round — Idler 63 mm 0.07 kg
CC255005 10 30 mm Round — Drive 84 mm 0.16 kg
CC255033 10 30 mm Round — Idler 84 mm 0.16 kg
CC255006 10 35 mm Round — Drive 84 mm 0.15 kg
CC255034 10 35 mm Round — Idler 84 mm 0.15 kg
CC255057 10 40 mm Square — Drive/Idler 84 mm 0.14 kg
CC255007 10 40 mm Round — Drive 84 mm 0.14 kg
CC255035 10 40 mm Round — Idler 84 mm 0.14 kg
CC255011 13 30 mm Round — Drive 115 mm 0.3 kg
CC255039 13 30 mm Round — Idler 115 mm 0.3 kg
CC255012 13 35 mm Round — Drive 115 mm 0.29 kg
CC255040 13 35 mm Round — Idler 115 mm 0.29 kg
CC255059 13 40 mm Square — Drive/Idler 115 mm 0.28 kg
CC255013 13 40 mm Round — Drive 115 mm 0.28 kg
CC255041 13 40 mm Round — Idler 115 mm 0.28 kg
CC255017 15 30 mm Round — Drive 135 mm 0.41 kg
CC255045 15 30 mm Round — Idler 135 mm 0.41 kg
CC255018 15 35 mm Round — Drive 135 mm 0.41 kg
CC255046 15 35 mm Round — Idler 135 mm 0.41 kg
CC255061 15 40 mm Square — Drive/Idler 135 mm 0.4 kg
CC255019 15 40 mm Round — Drive 135 mm 0.4 kg
CC255047 15 40 mm Round — Idler 135 mm 0.4 kg
CC255023 16 30 mm Round — Drive 145 mm 0.48 kg
CC255051 16 30 mm Round — Idler 145 mm 0.48 kg
CC255024 16 35 mm Round — Drive 145 mm 0.47 kg
CC255052 16 35 mm Round — Idler 145 mm 0.47 kg
CC255063 16 40 mm Square — Drive/Idler 145 mm 0.46 kg
CC255025 16 40 mm Round — Drive 145 mm 0.46 kg
CC255053 16 40 mm Round — Idler 145 mm 0.46 kg

Product Information

Material
Sprockets: Polyamide (PA). Screws: Stainless Steel (SS).

Compatible Components
