Moulded Solid Drive and Idler Sprockets — 1010 Series — Regina Matveyor
Regina

Moulded Solid Drive and Idler Sprockets — 1010 Series

Sprockets for Modular Belts · 1010

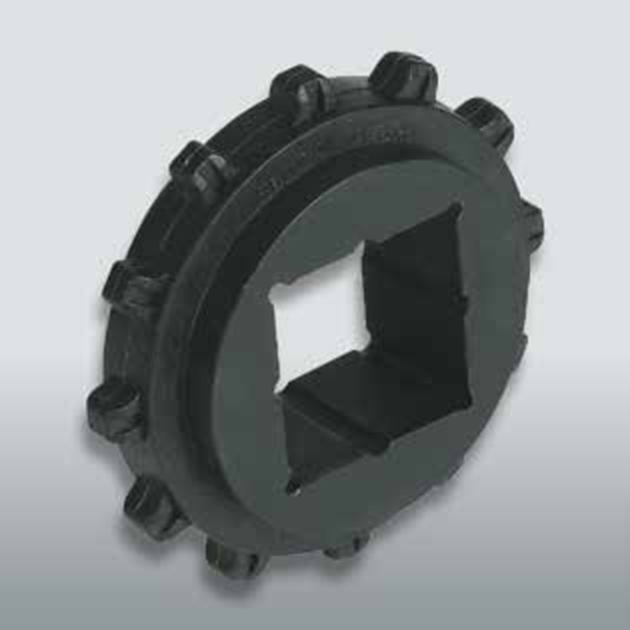

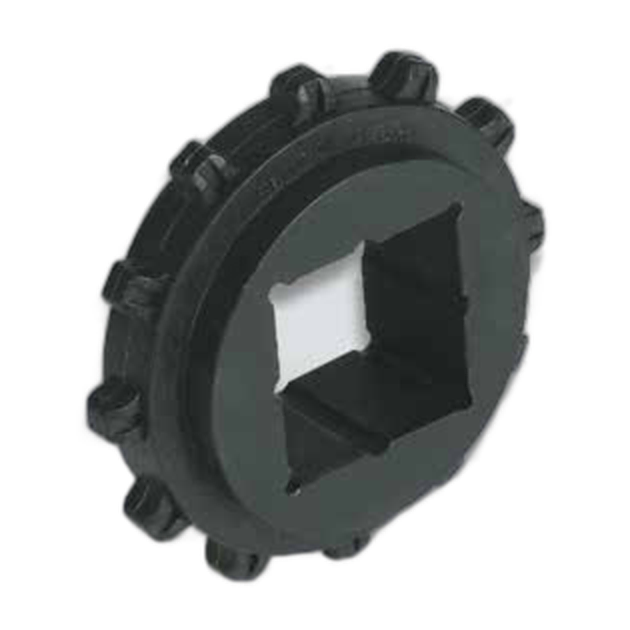

Moulded Solid Drive and Idler Sprockets for the Regina 1010 Series (Regina Conveyor Catalogue p215). Suitable for chains: 1500 / 1501, 1600, HF 1600, HFS 1600, RR 1500, RR 1600, 1110. NOTE: for the 8T sprocket, the hub width is 25 mm (0.984"). In case of round bore, diameter is indicated. In case of square bore, side of the square is indicated. Metric round bore drive sprockets are supplied without setscrew.

Product Configuration

Select a row to add it to your quote

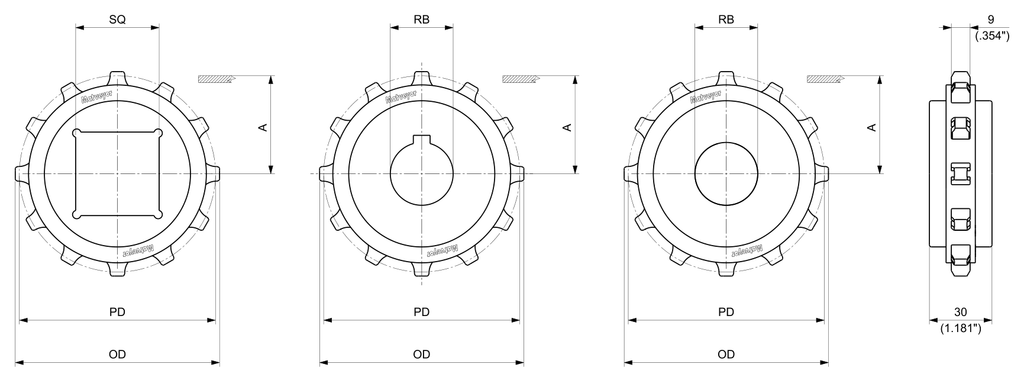

Code N. TeethBore sizeBore typePDOD Weight
MPBT10100820 8 20 mm Round — Drive 66.37 mm 64.5 mm 0.05 kg
MPBF10100820 8 20 mm Round — Idler 66.37 mm 64.5 mm 0.05 kg
MPBT10100825 8 25 mm Round — Drive 66.37 mm 64.5 mm 0.04 kg
MPBF10100825 8 25 mm Round — Idler 66.37 mm 64.5 mm 0.04 kg
MPBT10100830 8 30 mm Round — Drive 66.37 mm 64.5 mm 0.04 kg
MPBF10100830 8 30 mm Round — Idler 66.37 mm 64.5 mm 0.04 kg
MPBT10101230 12 30 mm Round — Drive 98.14 mm 97.9 mm 0.14 kg
MPBF10101230 12 30 mm Round — Idler 98.14 mm 97.9 mm 0.14 kg
MPBT10101235 12 35 mm Round — Drive 98.14 mm 97.9 mm 0.13 kg
MPBF10101235 12 35 mm Round — Idler 98.14 mm 97.9 mm 0.13 kg
MPBQ10101240 12 40 mm Square — Drive/Idler 98.14 mm 97.9 mm 0.12 kg
MPBT10101240 12 40 mm Round — Drive 98.14 mm 97.9 mm 0.12 kg
MPBF10101240 12 40 mm Round — Idler 98.14 mm 97.9 mm 0.12 kg
MPBT10101330 13 30 mm Round — Drive 106.14 mm 106.2 mm 0.17 kg
MPBF10101330 13 30 mm Round — Idler 106.14 mm 106.2 mm 0.17 kg
MPBT10101335 13 35 mm Round — Drive 106.14 mm 106.2 mm 0.15 kg
MPBF10101335 13 35 mm Round — Idler 106.14 mm 106.2 mm 0.15 kg
MPBQ10101340 13 40 mm Square — Drive/Idler 106.14 mm 106.2 mm 0.16 kg
MPBT10101340 13 40 mm Round — Drive 106.14 mm 106.2 mm 0.16 kg
MPBF10101340 13 40 mm Round — Idler 106.14 mm 106.2 mm 0.16 kg
MPBT10101830 18 30 mm Round — Drive 146.27 mm 147.2 mm 0.19 kg
MPBF10101830 18 30 mm Round — Idler 146.27 mm 147.2 mm 0.19 kg
MPBT10101835 18 35 mm Round — Drive 146.27 mm 147.2 mm 0.21 kg
MPBF10101835 18 35 mm Round — Idler 146.27 mm 147.2 mm 0.21 kg
MPBQ10101840 18 40 mm Square — Drive/Idler 146.27 mm 147.2 mm 0.2 kg
MPBT10101840 18 40 mm Round — Drive 146.27 mm 147.2 mm 0.2 kg
MPBF10101840 18 40 mm Round — Idler 146.27 mm 147.2 mm 0.2 kg
MPBQ10101860 18 60 mm Square — Drive/Idler 146.27 mm 147.2 mm 0.16 kg
MPBT10101930 19 30 mm Round — Drive 154.32 mm 155.3 mm 0.18 kg
MPBF10101930 19 30 mm Round — Idler 154.32 mm 155.3 mm 0.18 kg
MPBT10101935 19 35 mm Round — Drive 154.32 mm 155.3 mm 0.17 kg
MPBF10101935 19 35 mm Round — Idler 154.32 mm 155.3 mm 0.17 kg
MPBQ10101940 19 40 mm Square — Drive/Idler 154.32 mm 155.3 mm 0.16 kg
MPBT10101940 19 40 mm Round — Drive 154.32 mm 155.3 mm 0.16 kg
MPBF10101940 19 40 mm Round — Idler 154.32 mm 155.3 mm 0.16 kg
MPBT10101950 19 50 mm Round — Drive 154.32 mm 155.3 mm 0.19 kg
MPBF10101950 19 50 mm Round — Idler 154.32 mm 155.3 mm 0.19 kg
MPBQ10101960 19 60 mm Square — Drive/Idler 154.32 mm 155.3 mm 0.15 kg
MPBT10101960 19 60 mm Round — Drive 154.32 mm 155.3 mm 0.15 kg
MPBF10101960 19 60 mm Round — Idler 154.32 mm 155.3 mm 0.15 kg
MPBQ10101965 19 65 mm Square — Drive/Idler 154.32 mm 155.3 mm 0.17 kg
MPBT10102130 21 30 mm Round — Drive 170.42 mm 171.6 mm 0.27 kg
MPBF10102130 21 30 mm Round — Idler 170.42 mm 171.6 mm 0.27 kg
MPBT10102135 21 35 mm Round — Drive 170.42 mm 171.6 mm 0.26 kg
MPBF10102135 21 35 mm Round — Idler 170.42 mm 171.6 mm 0.26 kg
MPBQ10102140 21 40 mm Square — Drive/Idler 170.42 mm 171.6 mm 0.25 kg
MPBT10102140 21 40 mm Round — Drive 170.42 mm 171.6 mm 0.25 kg
MPBF10102140 21 40 mm Round — Idler 170.42 mm 171.6 mm 0.25 kg
MPBT10102150 21 50 mm Round — Drive 170.42 mm 171.6 mm 0.29 kg
MPBF10102150 21 50 mm Round — Idler 170.42 mm 171.6 mm 0.29 kg
MPBQ10102160 21 60 mm Square — Drive/Idler 170.42 mm 171.6 mm 0.22 kg

Product Information

Material
Sprockets: Reinforced Polyamide (PGF).
