Moulded Solid Drive and Idler Sprockets — 3000 Series — Regina Matveyor
Regina

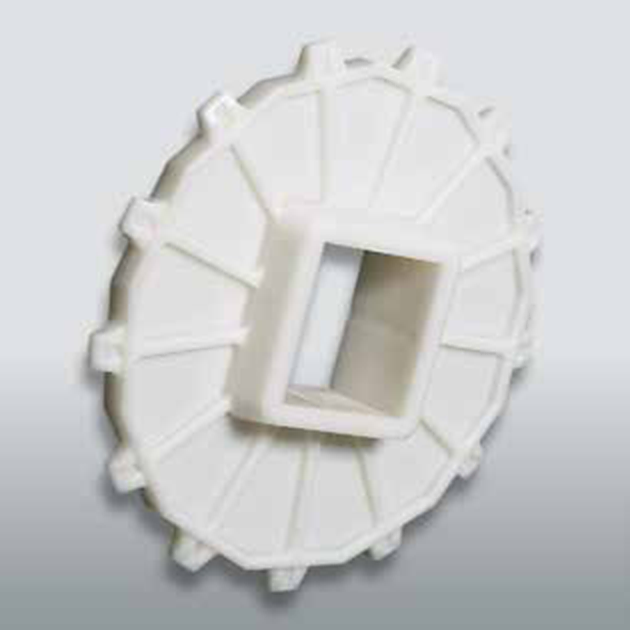

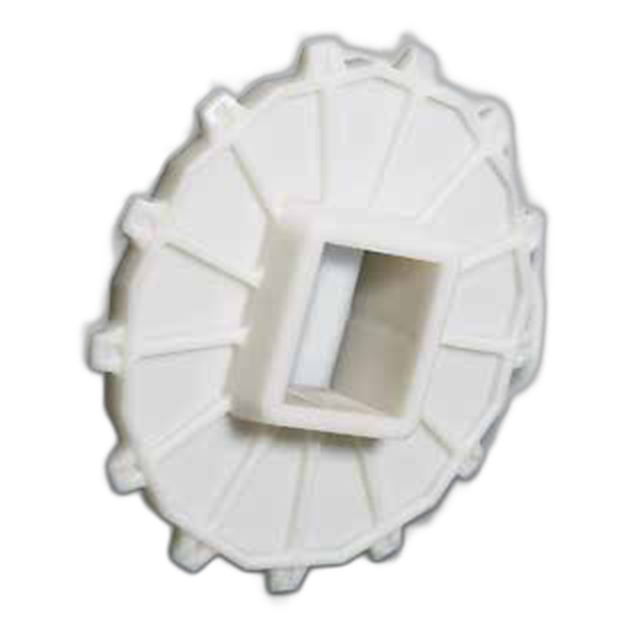

Moulded Solid Drive and Idler Sprockets — 3000 Series

Sprockets for Modular Belts · 3000

Moulded Solid Drive and Idler Sprockets for the Regina 3000 Series (Regina Conveyor Catalogue p291). Suitable for chains: 3135. In case of round bore, diameter is indicated. In case of square bore, side of the square is indicated.

Product Configuration

Select a row to add it to your quote

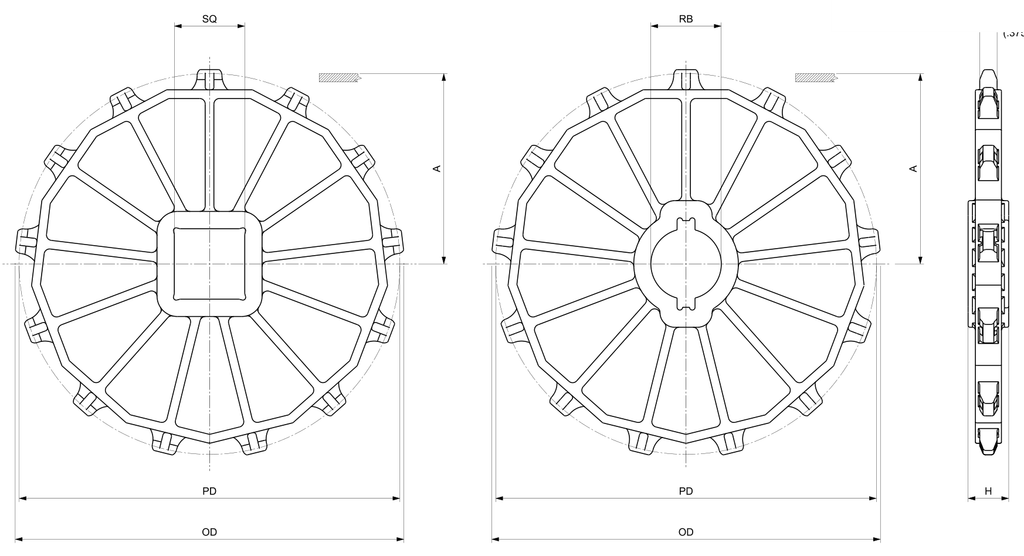

Code N. TeethBore sizeBore typeHub width HPDOD Weight
19200026 10 40 mm Square — Drive/Idler 22.2 mm 164.39 mm 162.6 mm 0.2 kg
19200028 10 40 mm Round — Drive 22.2 mm 164.39 mm 162.6 mm 0.2 kg
19200036 10 50 mm Round — Drive 22.2 mm 164.39 mm 162.6 mm 0.21 kg
19200024 10 60 mm Square — Drive/Idler 47.6 mm 164.39 mm 162.6 mm 0.29 kg
19200027 10 65 mm Square — Drive/Idler 47.6 mm 164.39 mm 162.6 mm 0.25 kg
19200025 13 40 mm Square — Drive/Idler 22.2 mm 212.27 mm 212.3 mm 0.33 kg
19200037 13 60 mm Square — Drive/Idler 47.6 mm 212.27 mm 212.3 mm 0.44 kg
19200033 13 65 mm Square — Drive/Idler 22.2 mm 212.27 mm 212.3 mm 0.32 kg
19200030 13 65 mm Square — Drive/Idler 47.6 mm 212.27 mm 212.3 mm 0.39 kg
19200053 13 65 mm Round — Drive 47.6 mm 212.27 mm 212.3 mm 0.39 kg
19200031 13 90 mm Square — Drive/Idler 47.6 mm 212.27 mm 212.3 mm 0.41 kg
19200045 13 90 mm Round — Drive 47.6 mm 212.27 mm 212.3 mm 0.41 kg
19200034 16 65 mm Square — Drive/Idler 47.6 mm 260.4 mm 261.6 mm 0.5 kg
19200035 16 90 mm Square — Drive/Idler 47.6 mm 260.4 mm 261.6 mm 0.54 kg
19200054 16 90 mm Round — Drive 47.6 mm 260.4 mm 261.6 mm 0.54 kg
19200038 16 120 mm Square — Drive/Idler 47.6 mm 260.4 mm 261.6 mm 0.52 kg

Product Information

Material
Sprockets: White Acetal Resin (WA).

Compatible Components

Need help specifying this product?

Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.

Contact Us
