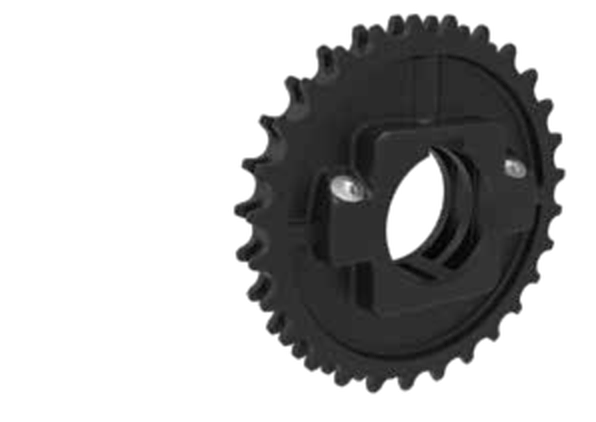

Moulded Solid Drive and Idler Sprockets — 611 Series

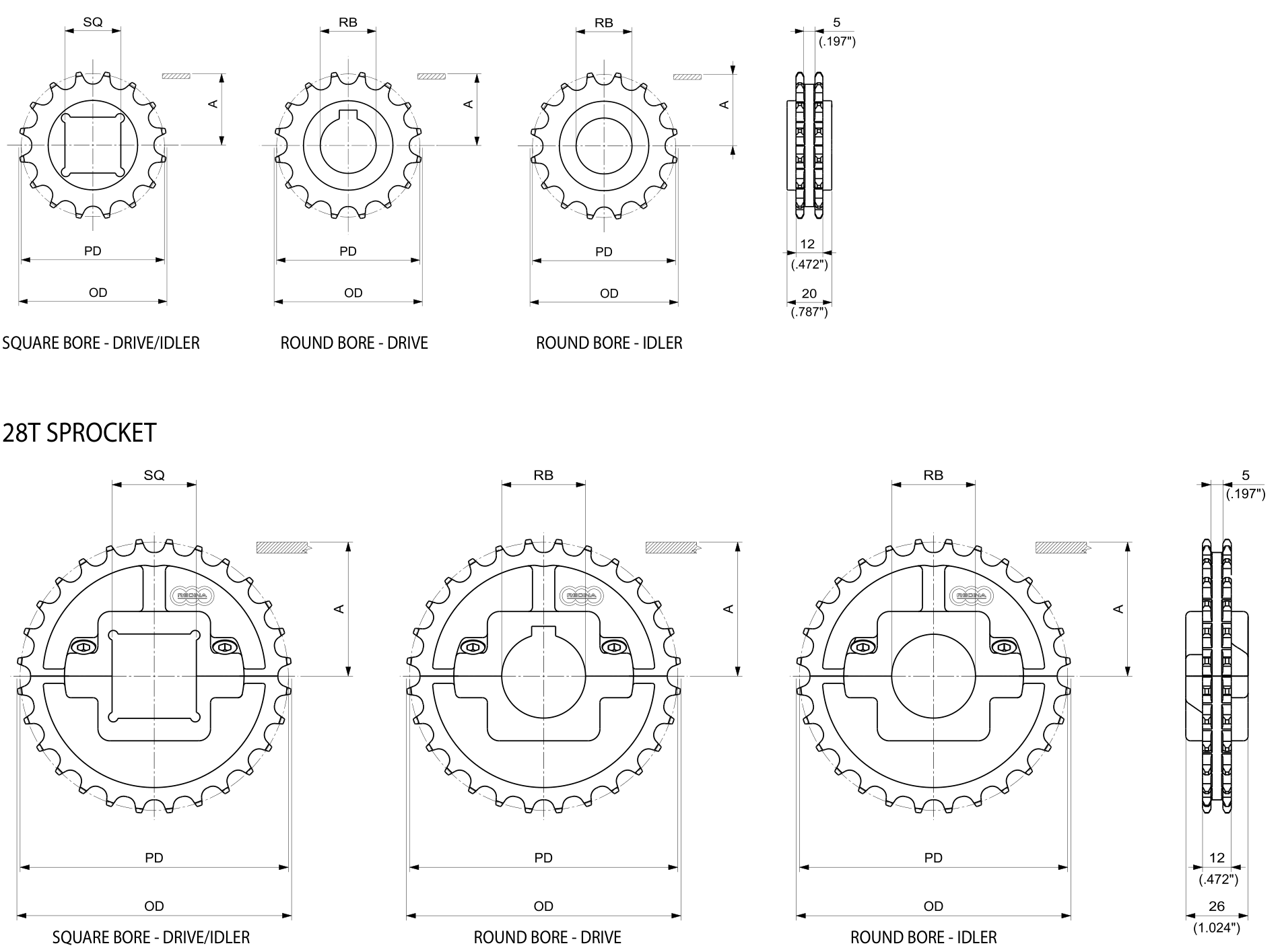

Moulded Solid Drive and Idler Sprockets for the Regina 611 Series (Regina Conveyor Catalogue p190). Suitable for chains: 611 with tracking guide (29 mm, 34 mm, 37 mm widths only). In case of round bore, diameter is indicated. In case of square bore, side of the square is indicated. Metric round bore drive sprockets are supplied without setscrew.
Product Configuration
Select a row to add it to your quote
| Code | N. Teeth | Bore size | Bore type | PD | OD | Weight |
|---|---|---|---|---|---|---|
MPBT6111620 |
16
|
20 mm
|
Round — Drive
|
65.1 mm
|
66.3 mm
|
0.05 kg
|
MPBF6111620 |
16
|
20 mm
|
Round — Idler
|
65.1 mm
|
66.3 mm
|
0.05 kg
|
MPBQ6111625 |
16
|
25 mm
|
Square — Drive/Idler
|
65.1 mm
|
66.3 mm
|
0.04 kg
|
MPBT6111625 |
16
|
25 mm
|
Round — Drive
|
65.1 mm
|
66.3 mm
|
0.04 kg
|
MPBF6111625 |
16
|
25 mm
|
Round — Idler
|
65.1 mm
|
66.3 mm
|
0.04 kg
|
MPBT6111630 |
16
|
30 mm
|
Round — Drive
|
65.1 mm
|
66.3 mm
|
0.04 kg
|
MPBF6111630 |
16
|
30 mm
|
Round — Idler
|
65.1 mm
|
66.3 mm
|
0.04 kg
|
No products match the selected filters.
Product Information
- Material
- Sprockets: Reinforced Polyamide (PGF).
Sprockets: Reinforced Polyamide (PGF).
