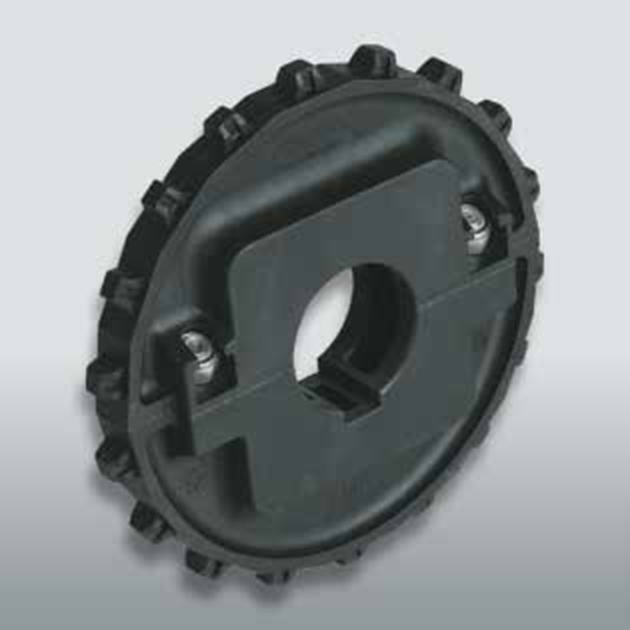

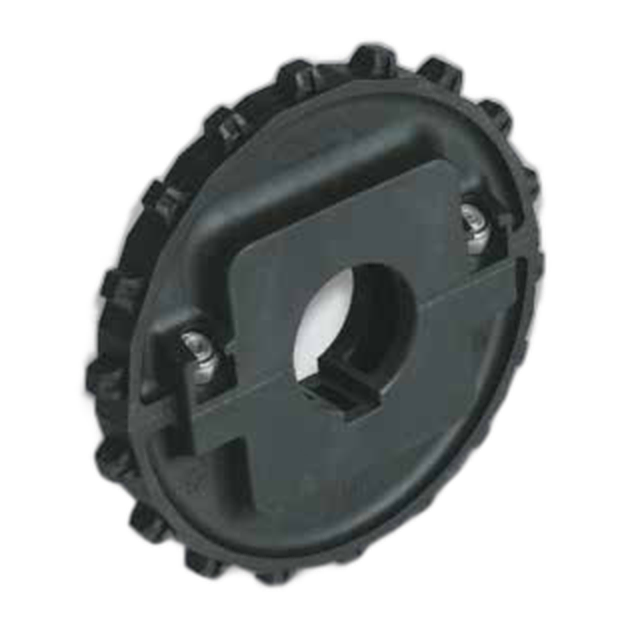

Moulded Split Drive and Idler Sprockets — 1010 Series

Sprockets for Modular Belts · 1010

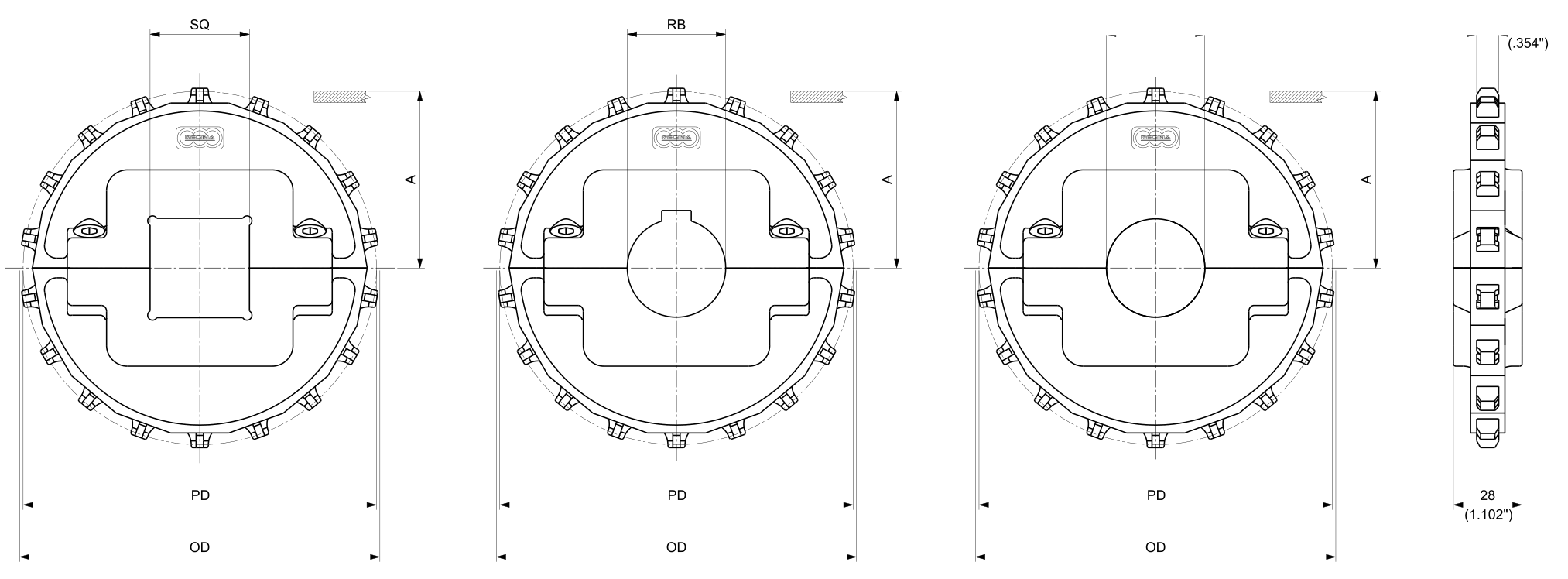

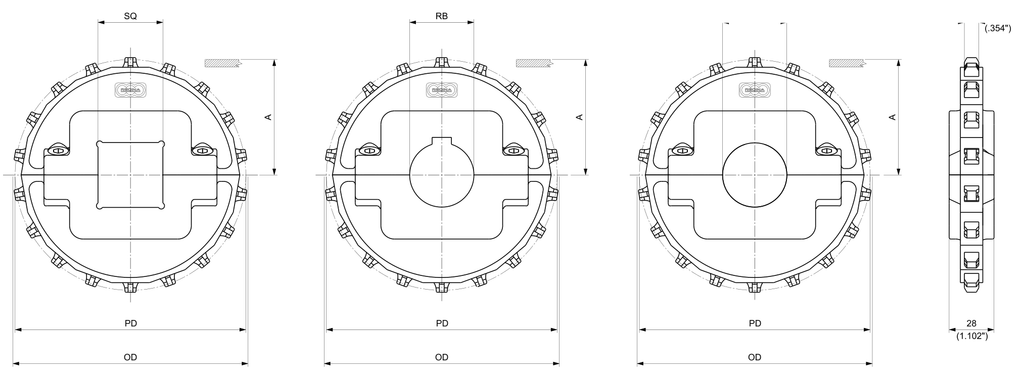

Moulded Split Drive and Idler Sprockets for the Regina 1010 Series (Regina Conveyor Catalogue p219). Suitable for chains: 1500 / 1501, 1600, HF 1600, HFS 1600, RR 1500, RR 1600, 1110. In case of round bore, diameter is indicated. In case of square bore, side of the square is indicated. Metric round bore drive sprockets are supplied without setscrew.

Product Configuration

Select a row to add it to your quote

Code N. TeethBore sizeBore typePDOD Weight
MPBST10101630 16 30 mm Round — Drive 130.2 mm 130.1 mm 0.27 kg
MPBSF10101630 16 30 mm Round — Idler 130.2 mm 130.1 mm 0.27 kg
MPBST10101635 16 35 mm Round — Drive 130.2 mm 130.1 mm 0.26 kg
MPBSF10101635 16 35 mm Round — Idler 130.2 mm 130.1 mm 0.26 kg
MPBSQ10101640 16 40 mm Square — Drive/Idler 130.2 mm 130.1 mm 0.25 kg
MPBST10101640 16 40 mm Round — Drive 130.2 mm 130.1 mm 0.25 kg
MPBSF10101640 16 40 mm Round — Idler 130.2 mm 130.1 mm 0.25 kg
MPBST10101645 16 45 mm Round — Drive 130.2 mm 130.1 mm 0.25 kg
MPBSF10101645 16 45 mm Round — Idler 130.2 mm 130.1 mm 0.25 kg
MPBSQ10101650 16 50 mm Square — Drive/Idler 130.2 mm 130.1 mm 0.24 kg
MPBST10101650 16 50 mm Round — Drive 130.2 mm 130.1 mm 0.24 kg
MPBSF10101650 16 50 mm Round — Idler 130.2 mm 130.1 mm 0.24 kg
MPBSQ10101660 16 60 mm Square — Drive/Idler 130.2 mm 130.1 mm 0.19 kg
MPBST10101830 18 30 mm Round — Drive 146.27 mm 146.5 mm 0.32 kg
MPBSF10101830 18 30 mm Round — Idler 146.27 mm 146.5 mm 0.32 kg
MPBST10101835 18 35 mm Round — Drive 146.27 mm 146.5 mm 0.32 kg
MPBSF10101835 18 35 mm Round — Idler 146.27 mm 146.5 mm 0.32 kg
MPBSQ10101840 18 40 mm Square — Drive/Idler 146.27 mm 146.5 mm 0.31 kg
MPBST10101840 18 40 mm Round — Drive 146.27 mm 146.5 mm 0.31 kg
MPBSF10101840 18 40 mm Round — Idler 146.27 mm 146.5 mm 0.31 kg
MPBST10101845 18 45 mm Round — Drive 146.27 mm 146.5 mm 0.3 kg
MPBSF10101845 18 45 mm Round — Idler 146.27 mm 146.5 mm 0.3 kg
MPBSQ10101850 18 50 mm Square — Drive/Idler 146.27 mm 146.5 mm 0.29 kg
MPBST10101850 18 50 mm Round — Drive 146.27 mm 146.5 mm 0.29 kg
MPBSF10101850 18 50 mm Round — Idler 146.27 mm 146.5 mm 0.29 kg
MPBSQ10101860 18 60 mm Square — Drive/Idler 146.27 mm 146.5 mm 0.27 kg
MPBST10101860 18 60 mm Round — Drive 146.27 mm 146.5 mm 0.27 kg
MPBSF10101860 18 60 mm Round — Idler 146.27 mm 146.5 mm 0.27 kg
MPBST10101930 19 30 mm Round — Drive 154.32 mm 154.6 mm 0.33 kg
MPBSF10101930 19 30 mm Round — Idler 154.32 mm 154.6 mm 0.33 kg
MPBST10101935 19 35 mm Round — Drive 154.32 mm 154.6 mm 0.32 kg
MPBSF10101935 19 35 mm Round — Idler 154.32 mm 154.6 mm 0.32 kg
MPBSQ10101940 19 40 mm Square — Drive/Idler 154.32 mm 154.6 mm 0.31 kg
MPBST10101940 19 40 mm Round — Drive 154.32 mm 154.6 mm 0.31 kg
MPBSF10101940 19 40 mm Round — Idler 154.32 mm 154.6 mm 0.31 kg
MPBST10101945 19 45 mm Round — Drive 154.32 mm 154.6 mm 0.3 kg
MPBSF10101945 19 45 mm Round — Idler 154.32 mm 154.6 mm 0.3 kg
MPBSQ10101950 19 50 mm Square — Drive/Idler 154.32 mm 154.6 mm 0.3 kg
MPBST10101950 19 50 mm Round — Drive 154.32 mm 154.6 mm 0.3 kg
MPBSF10101950 19 50 mm Round — Idler 154.32 mm 154.6 mm 0.3 kg
MPBSQ10101960 19 60 mm Square — Drive/Idler 154.32 mm 154.6 mm 0.27 kg
MPBST10101960 19 60 mm Round — Drive 154.32 mm 154.6 mm 0.27 kg
MPBSF10101960 19 60 mm Round — Idler 154.32 mm 154.6 mm 0.27 kg
MPBST10102030 20 30 mm Round — Drive 162.37 mm 162.8 mm 0.35 kg
MPBSF10102030 20 30 mm Round — Idler 162.37 mm 162.8 mm 0.35 kg
MPBST10102035 20 35 mm Round — Drive 162.37 mm 162.8 mm 0.35 kg
MPBSF10102035 20 35 mm Round — Idler 162.37 mm 162.8 mm 0.35 kg
MPBSQ10102040 20 40 mm Square — Drive/Idler 162.37 mm 162.8 mm 0.34 kg
MPBST10102040 20 40 mm Round — Drive 162.37 mm 162.8 mm 0.34 kg
MPBSF10102040 20 40 mm Round — Idler 162.37 mm 162.8 mm 0.34 kg
MPBST10102050 20 50 mm Round — Drive 162.37 mm 162.8 mm 0.32 kg
MPBSF10102050 20 50 mm Round — Idler 162.37 mm 162.8 mm 0.32 kg
MPBSQ10102060 20 60 mm Square — Drive/Idler 162.37 mm 162.8 mm 0.3 kg
MPBST10102060 20 60 mm Round — Drive 162.37 mm 162.8 mm 0.3 kg
MPBSF10102060 20 60 mm Round — Idler 162.37 mm 162.8 mm 0.3 kg
MPBSQ10102065 20 65 mm Square — Drive/Idler 162.37 mm 162.8 mm 0.26 kg

Product Information

Material
Sprockets: Reinforced Polyamide (PGF).

Compatible Components
