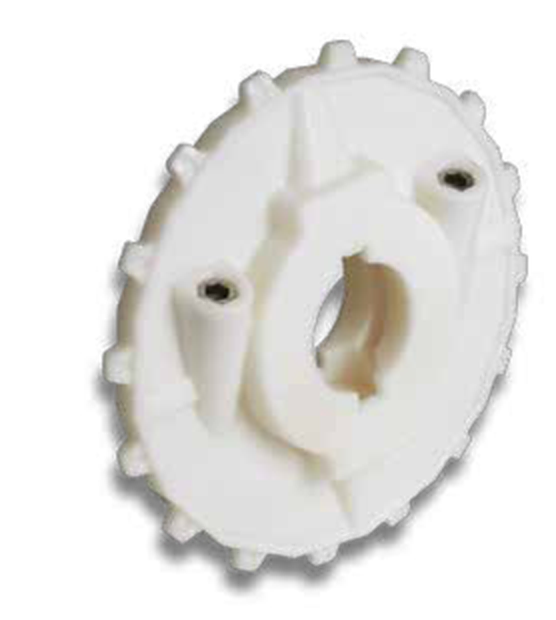

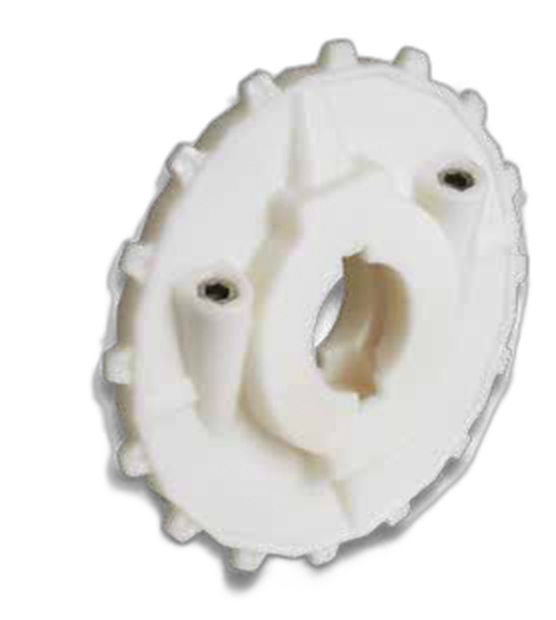

Moulded Split Drive and Idler Sprockets — 3000 Series

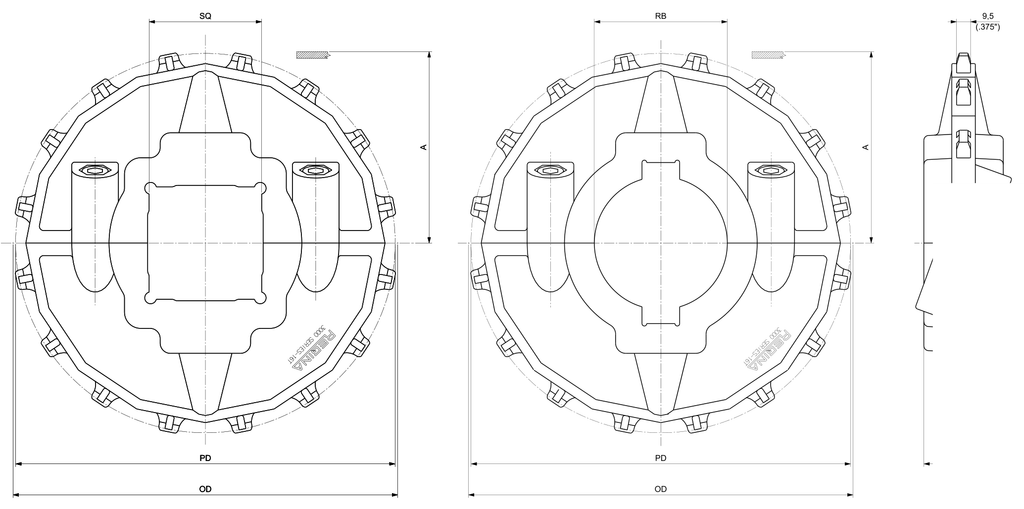

Moulded Split Drive and Idler Sprockets for the Regina 3000 Series (Regina Conveyor Catalogue p292). Suitable for chains: 3135. In case of round bore, diameter is indicated. In case of square bore, side of the square is indicated.
Product Configuration
Select a row to add it to your quote
| Code | N. Teeth | Bore size | Bore type | PD | OD | Weight |
|---|---|---|---|---|---|---|
19200111W |
16
|
65 mm
|
Square — Drive/Idler
|
260.4 mm
|
261.4 mm
|
1.85 kg
|
19200109W |
16
|
65 mm
|
Round — Drive
|
260.4 mm
|
261.4 mm
|
1.85 kg
|
19200114W |
16
|
90 mm
|
Square — Drive/Idler
|
260.4 mm
|
261.4 mm
|
1.56 kg
|
19200112W |
16
|
90 mm
|
Round — Drive
|
260.4 mm
|
261.4 mm
|
1.56 kg
|
No products match the selected filters.
Product Information
- Material
- Sprockets: White Acetal Resin (WA). Screws: Stainless Steel (SS). Nuts: Stainless Steel (SS).
Sprockets: White Acetal Resin (WA). Screws: Stainless Steel (SS). Nuts: Stainless Steel (SS).
Compatible Components
Need help specifying this product?
Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
