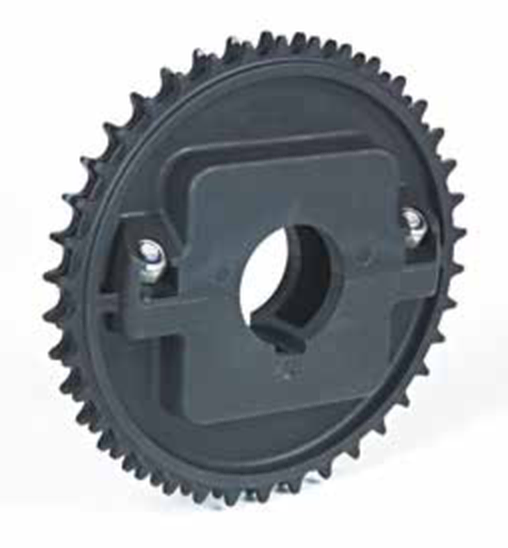

Moulded Split Drive and Idler Sprockets — 600 Series

Name: Moulded Split Drive and Idler Sprockets — 600 Series
Brand: Regina

Sprockets for Modular Belts · 600

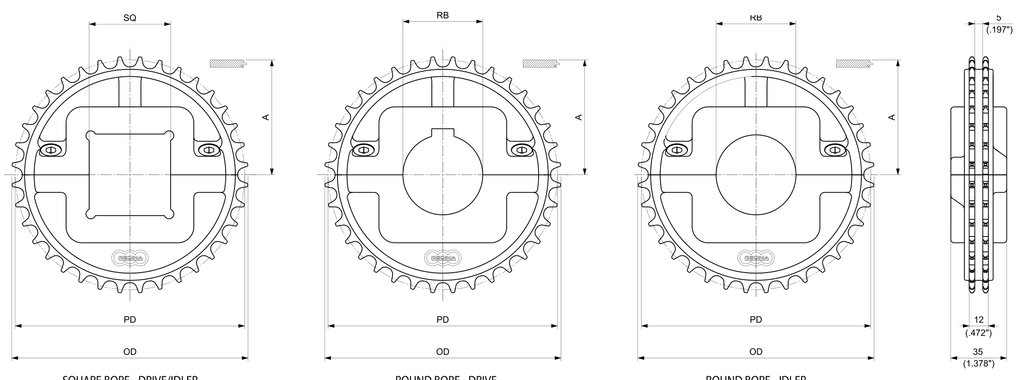

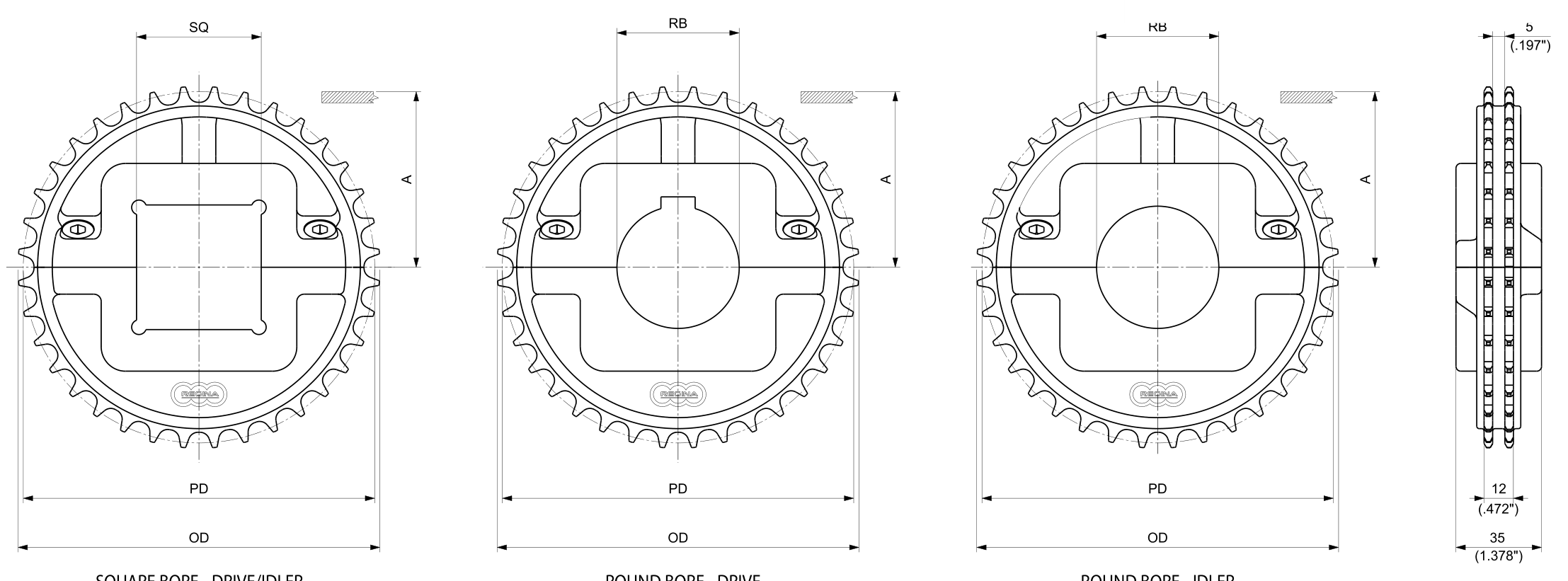

Moulded Split Drive and Idler Sprockets for the Regina 600 Series (Regina Conveyor Catalogue p193). Suitable for chains: 600 / 610 / LBP 610, 500 / HF 500 / HF 510 / HFS 510, 300 / 200 / HF 200, 650M, 611 without tracking guide (all widths), 611 with tracking guide (51 mm, 76 mm widths only), RR 611 (all widths). NOTE: for the 28T sprocket, the hub width is 26 mm (1.024"). In case of round bore, diameter is indicated. In case of square bore, side of the square is indicated. Metric round bore drive sprockets are supplied without setscrew.

Select a row to add it to your quote

Configuration

Code	N. Teeth	Bore size	Bore type	PD	OD	Weight
`MPBST6002825`	`28`	`25` mm	`Round — Drive`	`113.43` mm	`114.69` mm	`0.16` kg
`MPBSF6002825`	`28`	`25` mm	`Round — Idler`	`113.43` mm	`114.69` mm	`0.16` kg
`MPBST6002830`	`28`	`30` mm	`Round — Drive`	`113.43` mm	`114.69` mm	`0.16` kg
`MPBSF6002830`	`28`	`30` mm	`Round — Idler`	`113.43` mm	`114.69` mm	`0.16` kg
`MPBST6002835`	`28`	`35` mm	`Round — Drive`	`113.43` mm	`114.69` mm	`0.15` kg
`MPBSF6002835`	`28`	`35` mm	`Round — Idler`	`113.43` mm	`114.69` mm	`0.15` kg
`MPBSQ6002840`	`28`	`40` mm	`Square — Drive/Idler`	`113.43` mm	`114.69` mm	`0.14` kg
`MPBST6002840`	`28`	`40` mm	`Round — Drive`	`113.43` mm	`114.69` mm	`0.14` kg
`MPBSF6002840`	`28`	`40` mm	`Round — Idler`	`113.43` mm	`114.69` mm	`0.14` kg
`MPBST6003630`	`36`	`30` mm	`Round — Drive`	`145.69` mm	`148` mm	`0.38` kg
`MPBSF6003630`	`36`	`30` mm	`Round — Idler`	`145.69` mm	`148` mm	`0.38` kg
`MPBST6003635`	`36`	`35` mm	`Round — Drive`	`145.69` mm	`148` mm	`0.37` kg
`MPBSF6003635`	`36`	`35` mm	`Round — Idler`	`145.69` mm	`148` mm	`0.37` kg
`MPBSQ6003640`	`36`	`40` mm	`Square — Drive/Idler`	`145.69` mm	`148` mm	`0.36` kg
`MPBST6003640`	`36`	`40` mm	`Round — Drive`	`145.69` mm	`148` mm	`0.36` kg
`MPBSF6003640`	`36`	`40` mm	`Round — Idler`	`145.69` mm	`148` mm	`0.36` kg
`MPBST6003645`	`36`	`45` mm	`Round — Drive`	`145.69` mm	`148` mm	`0.35` kg
`MPBSF6003645`	`36`	`45` mm	`Round — Idler`	`145.69` mm	`148` mm	`0.35` kg
`MPBSQ6003650`	`36`	`50` mm	`Square — Drive/Idler`	`145.69` mm	`148` mm	`0.34` kg
`MPBST6003650`	`36`	`50` mm	`Round — Drive`	`145.69` mm	`148` mm	`0.34` kg
`MPBSF6003650`	`36`	`50` mm	`Round — Idler`	`145.69` mm	`148` mm	`0.34` kg
`MPBST6003830`	`38`	`30` mm	`Round — Drive`	`153.8` mm	`156` mm	`0.39` kg
`MPBSF6003830`	`38`	`30` mm	`Round — Idler`	`153.8` mm	`156` mm	`0.39` kg
`MPBST6003835`	`38`	`35` mm	`Round — Drive`	`153.8` mm	`156` mm	`0.38` kg
`MPBSF6003835`	`38`	`35` mm	`Round — Idler`	`153.8` mm	`156` mm	`0.38` kg
`MPBSQ6003840`	`38`	`40` mm	`Square — Drive/Idler`	`153.8` mm	`156` mm	`0.37` kg
`MPBST6003840`	`38`	`40` mm	`Round — Drive`	`153.8` mm	`156` mm	`0.37` kg
`MPBSF6003840`	`38`	`40` mm	`Round — Idler`	`153.8` mm	`156` mm	`0.37` kg
`MPBST6003845`	`38`	`45` mm	`Round — Drive`	`153.8` mm	`156` mm	`0.36` kg
`MPBSF6003845`	`38`	`45` mm	`Round — Idler`	`153.8` mm	`156` mm	`0.36` kg
`MPBSQ6003850`	`38`	`50` mm	`Square — Drive/Idler`	`153.8` mm	`156` mm	`0.35` kg
`MPBST6003850`	`38`	`50` mm	`Round — Drive`	`153.8` mm	`156` mm	`0.35` kg
`MPBSF6003850`	`38`	`50` mm	`Round — Idler`	`153.8` mm	`156` mm	`0.35` kg
