Moulded Split Drive and Idler Sprockets — 7300 Series — Regina Matveyor
Regina

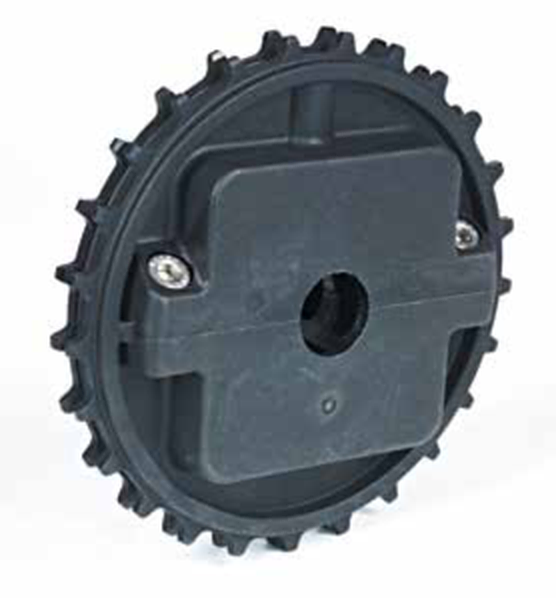

Moulded Split Drive and Idler Sprockets — 7300 Series

Sprockets for Modular Belts · 7300

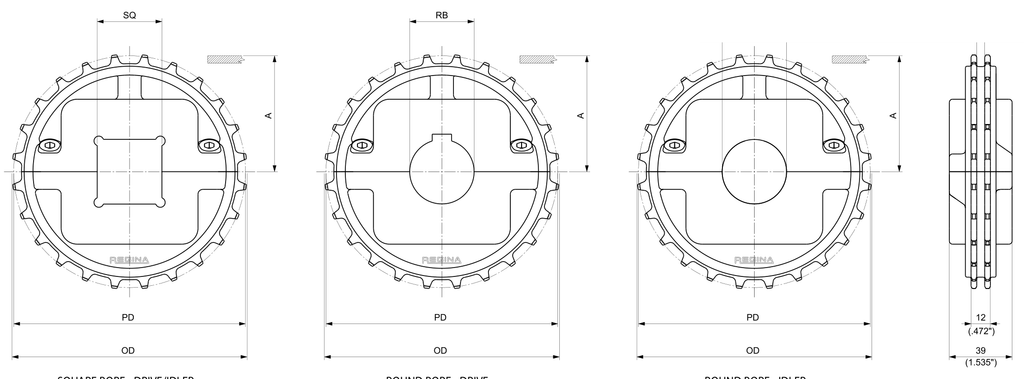

Moulded Split Drive and Idler Sprockets for the Regina 7300 Series (Regina Conveyor Catalogue p229). Suitable for chains: 7200, 7300. In case of round bore, diameter is indicated. In case of square bore, side of the square is indicated. Metric round bore drive sprockets are supplied without setscrew.

Product Configuration

Select a row to add it to your quote

Code N. TeethBore sizeBore typePDOD Weight
MPBST73002430 24 30 mm Round — Drive 145.95 mm 146 mm 0.41 kg
MPBSF73002430 24 30 mm Round — Idler 145.95 mm 146 mm 0.41 kg
MPBST73002435 24 35 mm Round — Drive 145.95 mm 146 mm 0.41 kg
MPBSF73002435 24 35 mm Round — Idler 145.95 mm 146 mm 0.41 kg
MPBSQ73002440 24 40 mm Square — Drive/Idler 145.95 mm 146 mm 0.4 kg
MPBST73002440 24 40 mm Round — Drive 145.95 mm 146 mm 0.4 kg
MPBSF73002440 24 40 mm Round — Idler 145.95 mm 146 mm 0.4 kg
MPBST73002445 24 45 mm Round — Drive 145.95 mm 146 mm 0.39 kg
MPBSF73002445 24 45 mm Round — Idler 145.95 mm 146 mm 0.39 kg
MPBSQ73002450 24 50 mm Square — Drive/Idler 145.95 mm 146 mm 0.38 kg
MPBST73002450 24 50 mm Round — Drive 145.95 mm 146 mm 0.38 kg
MPBSF73002450 24 50 mm Round — Idler 145.95 mm 146 mm 0.38 kg
MPBST73002460 24 60 mm Round — Drive 145.95 mm 146 mm 0.35 kg
MPBSF73002460 24 60 mm Round — Idler 145.95 mm 146 mm 0.35 kg
MPBST73002530 25 30 mm Round — Drive 152.99 mm 152 mm 0.43 kg
MPBSF73002530 25 30 mm Round — Idler 152.99 mm 152 mm 0.43 kg
MPBST73002535 25 35 mm Round — Drive 152.99 mm 152 mm 0.42 kg
MPBSF73002535 25 35 mm Round — Idler 152.99 mm 152 mm 0.42 kg
MPBSQ73002540 25 40 mm Square — Drive/Idler 152.99 mm 152 mm 0.41 kg
MPBST73002540 25 40 mm Round — Drive 152.99 mm 152 mm 0.41 kg
MPBSF73002540 25 40 mm Round — Idler 152.99 mm 152 mm 0.41 kg
MPBST73002545 25 45 mm Round — Drive 152.99 mm 152 mm 0.4 kg
MPBSF73002545 25 45 mm Round — Idler 152.99 mm 152 mm 0.4 kg
MPBSQ73002550 25 50 mm Square — Drive/Idler 152.99 mm 152 mm 0.39 kg
MPBST73002550 25 50 mm Round — Drive 152.99 mm 152 mm 0.39 kg
MPBSF73002550 25 50 mm Round — Idler 152.99 mm 152 mm 0.39 kg
MPBST73002560 25 60 mm Round — Drive 152.99 mm 152 mm 0.37 kg
MPBSF73002560 25 60 mm Round — Idler 152.99 mm 152 mm 0.37 kg
MPBST73002730 27 30 mm Round — Drive 164.09 mm 164.2 mm 0.46 kg
MPBSF73002730 27 30 mm Round — Idler 164.09 mm 164.2 mm 0.46 kg
MPBST73002735 27 35 mm Round — Drive 164.09 mm 164.2 mm 0.45 kg
MPBSF73002735 27 35 mm Round — Idler 164.09 mm 164.2 mm 0.45 kg
MPBSQ73002740 27 40 mm Square — Drive/Idler 164.09 mm 164.2 mm 0.44 kg
MPBST73002740 27 40 mm Round — Drive 164.09 mm 164.2 mm 0.44 kg
MPBSF73002740 27 40 mm Round — Idler 164.09 mm 164.2 mm 0.44 kg
MPBST73002745 27 45 mm Round — Drive 164.09 mm 164.2 mm 0.43 kg
MPBSF73002745 27 45 mm Round — Idler 164.09 mm 164.2 mm 0.43 kg
MPBSQ73002750 27 50 mm Square — Drive/Idler 164.09 mm 164.2 mm 0.42 kg
MPBST73002750 27 50 mm Round — Drive 164.09 mm 164.2 mm 0.42 kg
MPBSF73002750 27 50 mm Round — Idler 164.09 mm 164.2 mm 0.42 kg
MPBST73002760 27 60 mm Round — Drive 164.09 mm 164.2 mm 0.4 kg
MPBSF73002760 27 60 mm Round — Idler 164.09 mm 164.2 mm 0.4 kg

Product Information

Material
Sprockets: Reinforced Polyamide (PGF).
