Moulded Split Drive and Idler Sprockets — 782 Series — Regina Matveyor
Regina

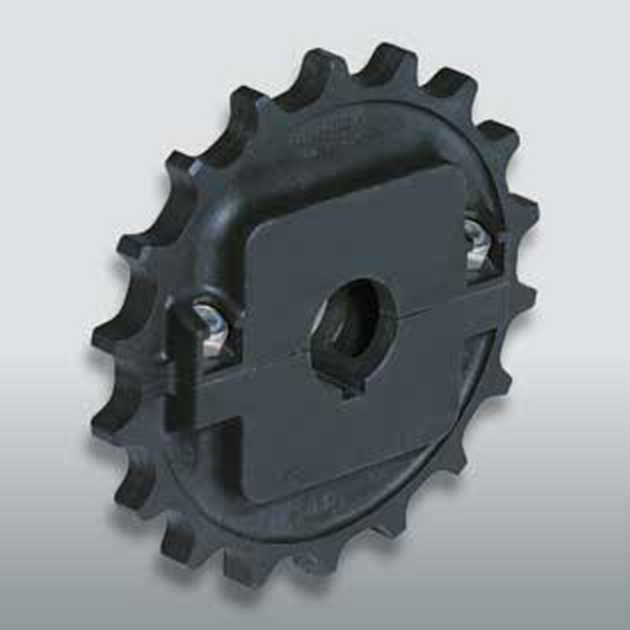

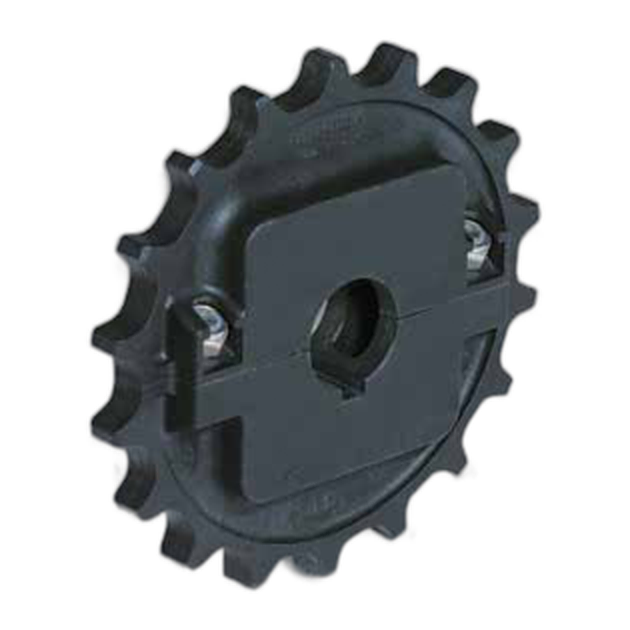

Moulded Split Drive and Idler Sprockets — 782 Series

Sprockets for Modular Belts · 782

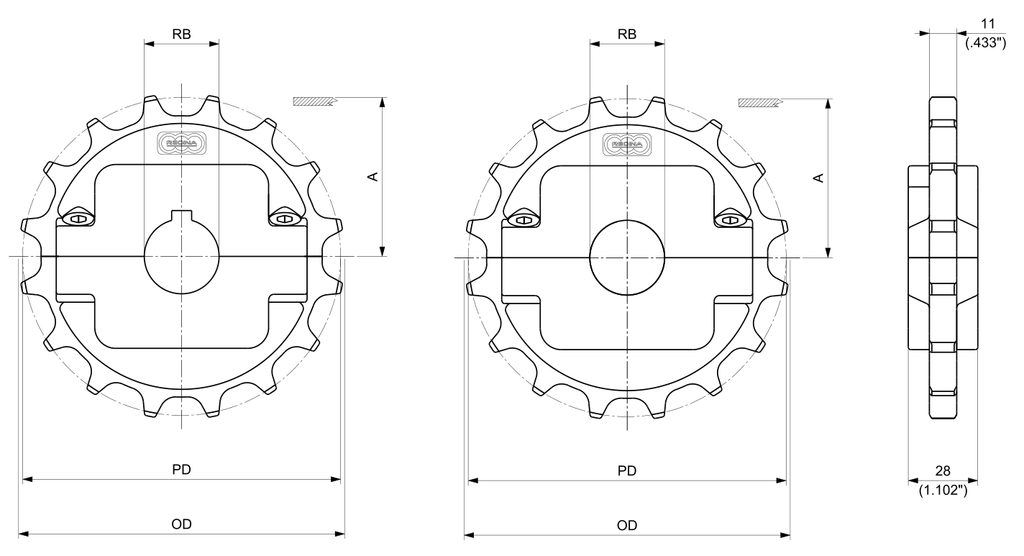

Moulded Split Drive and Idler Sprockets for the Regina 782 Series (Regina Conveyor Catalogue p261). Suitable for chains: 762M, 763M, 783T, 793M, 793T, 793L. Round bore — diameter is indicated. Metric round bore drive sprockets are supplied without setscrew.

Product Configuration

Select a row to add it to your quote

Code N. TeethBore sizeBore typePDOD Weight
CMT027821601 16 25 mm Round — Drive 130.2 mm 131.3 mm 0.26 kg
CMT037821601 16 25 mm Round — Idler 130.2 mm 131.3 mm 0.26 kg
CMT027821602 16 30 mm Round — Drive 130.2 mm 131.3 mm 0.26 kg
CMT037821602 16 30 mm Round — Idler 130.2 mm 131.3 mm 0.26 kg
CMT027821603 16 35 mm Round — Drive 130.2 mm 131.3 mm 0.25 kg
CMT037821603 16 35 mm Round — Idler 130.2 mm 131.3 mm 0.25 kg
CMT027821604 16 40 mm Round — Drive 130.2 mm 131.3 mm 0.24 kg
CMT037821604 16 40 mm Round — Idler 130.2 mm 131.3 mm 0.24 kg
CMT027821605 16 45 mm Round — Drive 130.2 mm 131.3 mm 0.24 kg
CMT037821605 16 45 mm Round — Idler 130.2 mm 131.3 mm 0.24 kg
CMT027821613 16 50 mm Round — Drive 130.2 mm 131.3 mm 0.23 kg
CMT037821613 16 50 mm Round — Idler 130.2 mm 131.3 mm 0.23 kg
CMT027821801 18 25 mm Round — Drive 146.27 mm 147.6 mm 0.29 kg
CMT037821801 18 25 mm Round — Idler 146.27 mm 147.6 mm 0.29 kg
CMT027821802 18 30 mm Round — Drive 146.27 mm 147.6 mm 0.28 kg
CMT037821802 18 30 mm Round — Idler 146.27 mm 147.6 mm 0.28 kg
CMT027821803 18 35 mm Round — Drive 146.27 mm 147.6 mm 0.28 kg
CMT037821803 18 35 mm Round — Idler 146.27 mm 147.6 mm 0.28 kg
CMT027821804 18 40 mm Round — Drive 146.27 mm 147.6 mm 0.27 kg
CMT037821804 18 40 mm Round — Idler 146.27 mm 147.6 mm 0.27 kg
CMT027821805 18 45 mm Round — Drive 146.27 mm 147.6 mm 0.26 kg
CMT037821805 18 45 mm Round — Idler 146.27 mm 147.6 mm 0.26 kg
CMT027821813 18 50 mm Round — Drive 146.27 mm 147.6 mm 0.25 kg
CMT037821813 18 50 mm Round — Idler 146.27 mm 147.6 mm 0.25 kg
CMT027821901 19 25 mm Round — Drive 154.32 mm 156.3 mm 0.32 kg
CMT037821901 19 25 mm Round — Idler 154.32 mm 156.3 mm 0.32 kg
CMT027821902 19 30 mm Round — Drive 154.32 mm 156.3 mm 0.31 kg
CMT037821902 19 30 mm Round — Idler 154.32 mm 156.3 mm 0.31 kg
CMT027821903 19 35 mm Round — Drive 154.32 mm 156.3 mm 0.31 kg
CMT037821903 19 35 mm Round — Idler 154.32 mm 156.3 mm 0.31 kg
CMT027821904 19 40 mm Round — Drive 154.32 mm 156.3 mm 0.3 kg
CMT037821904 19 40 mm Round — Idler 154.32 mm 156.3 mm 0.3 kg
CMT027821905 19 45 mm Round — Drive 154.32 mm 156.3 mm 0.29 kg
CMT037821905 19 45 mm Round — Idler 154.32 mm 156.3 mm 0.29 kg
CMT027821913 19 50 mm Round — Drive 154.32 mm 156.3 mm 0.28 kg
CMT037821913 19 50 mm Round — Idler 154.32 mm 156.3 mm 0.28 kg

Product Information

Material
Sprockets: Reinforced Polyamide (PGF). Screw: Stainless Steel (SS). Nuts: Zinc Plated Steel (S+ZN).

Compatible Components

Need help specifying this product?

Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
