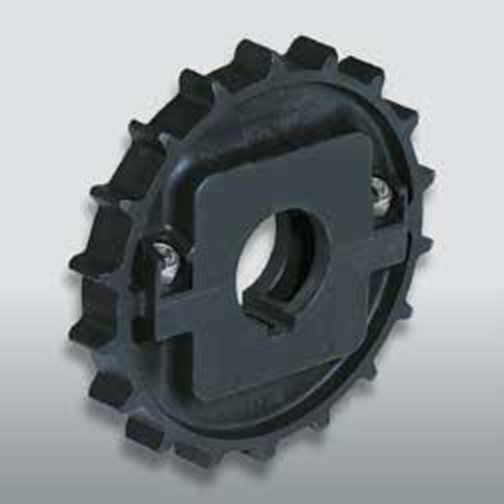

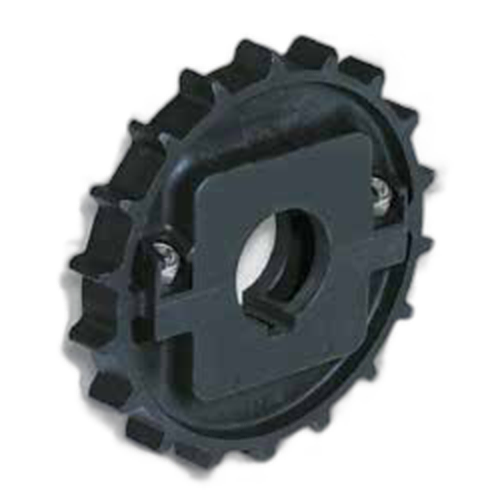

Moulded Split Drive and Idler Sprockets — USP Series

Name: Moulded Split Drive and Idler Sprockets — USP Series
Brand: Regina

Sprockets for Modular Belts · USP

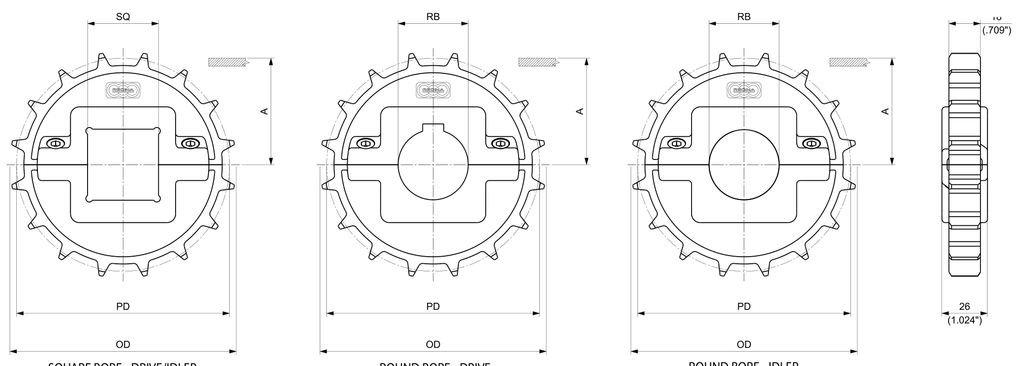

Moulded Split Drive and Idler Sprockets for the Regina USP Series (Regina Conveyor Catalogue p245). Suitable for chains: USPM, USP, LBP USPM, LBP XSPM, HF USPM / HFS USPM. In case of round bore, diameter is indicated. In case of square bore, side of the square is indicated. Metric round bore drive sprockets are supplied without setscrew.

Select a row to add it to your quote

Configuration

Code	N. Teeth	Bore size	Bore type	PD	OD	Weight
`MPBSTUSP1230`	`12`	`30` mm	`Round — Drive`	`98.14` mm	`97` mm	`0.12` kg
`MPBSFUSP1230`	`12`	`30` mm	`Round — Idler`	`98.14` mm	`97` mm	`0.12` kg
`MPBSTUSP1235`	`12`	`35` mm	`Round — Drive`	`98.14` mm	`97` mm	`0.12` kg
`MPBSFUSP1235`	`12`	`35` mm	`Round — Idler`	`98.14` mm	`97` mm	`0.12` kg
`MPBSTUSP1240`	`12`	`40` mm	`Round — Drive`	`98.14` mm	`97` mm	`0.11` kg
`MPBSFUSP1240`	`12`	`40` mm	`Round — Idler`	`98.14` mm	`97` mm	`0.11` kg
`MPBSTUSP1330`	`13`	`30` mm	`Round — Drive`	`106.14` mm	`105.5` mm	`0.12` kg
`MPBSFUSP1330`	`13`	`30` mm	`Round — Idler`	`106.14` mm	`105.5` mm	`0.12` kg
`MPBSTUSP1335`	`13`	`35` mm	`Round — Drive`	`106.14` mm	`105.5` mm	`0.11` kg
`MPBSFUSP1335`	`13`	`35` mm	`Round — Idler`	`106.14` mm	`105.5` mm	`0.11` kg
`MPBSTUSP1340`	`13`	`40` mm	`Round — Drive`	`106.14` mm	`105.5` mm	`0.11` kg
`MPBSFUSP1340`	`13`	`40` mm	`Round — Idler`	`106.14` mm	`105.5` mm	`0.11` kg
`MPBSTUSP1430`	`14`	`30` mm	`Round — Drive`	`114.15` mm	`113.15` mm	`0.15` kg
`MPBSFUSP1430`	`14`	`30` mm	`Round — Idler`	`114.15` mm	`113.15` mm	`0.15` kg
`MPBSTUSP1435`	`14`	`35` mm	`Round — Drive`	`114.15` mm	`113.15` mm	`0.14` kg
`MPBSFUSP1435`	`14`	`35` mm	`Round — Idler`	`114.15` mm	`113.15` mm	`0.14` kg
`MPBSQUSP1440`	`14`	`40` mm	`Square — Drive/Idler`	`114.15` mm	`113.15` mm	`0.14` kg
`MPBSTUSP1440`	`14`	`40` mm	`Round — Drive`	`114.15` mm	`113.15` mm	`0.14` kg
`MPBSFUSP1440`	`14`	`40` mm	`Round — Idler`	`114.15` mm	`113.15` mm	`0.14` kg
`MPBSTUSP1530`	`15`	`30` mm	`Round — Drive`	`122.17` mm	`121.5` mm	`0.19` kg
`MPBSFUSP1530`	`15`	`30` mm	`Round — Idler`	`122.17` mm	`121.5` mm	`0.19` kg
`MPBSTUSP1535`	`15`	`35` mm	`Round — Drive`	`122.17` mm	`121.5` mm	`0.18` kg
`MPBSFUSP1535`	`15`	`35` mm	`Round — Idler`	`122.17` mm	`121.5` mm	`0.18` kg
`MPBSQUSP1540`	`15`	`40` mm	`Square — Drive/Idler`	`122.17` mm	`121.5` mm	`0.18` kg
`MPBSTUSP1540`	`15`	`40` mm	`Round — Drive`	`122.17` mm	`121.5` mm	`0.18` kg
`MPBSFUSP1540`	`15`	`40` mm	`Round — Idler`	`122.17` mm	`121.5` mm	`0.18` kg
`MPBSTUSP1630`	`16`	`30` mm	`Round — Drive`	`130.19` mm	`129.2` mm	`0.2` kg
`MPBSFUSP1630`	`16`	`30` mm	`Round — Idler`	`130.19` mm	`129.2` mm	`0.2` kg
`MPBSTUSP1635`	`16`	`35` mm	`Round — Drive`	`130.19` mm	`129.2` mm	`0.2` kg
`MPBSFUSP1635`	`16`	`35` mm	`Round — Idler`	`130.19` mm	`129.2` mm	`0.2` kg
`MPBSQUSP1640`	`16`	`40` mm	`Square — Drive/Idler`	`130.19` mm	`129.2` mm	`0.19` kg
`MPBSTUSP1640`	`16`	`40` mm	`Round — Drive`	`130.19` mm	`129.2` mm	`0.19` kg
`MPBSFUSP1640`	`16`	`40` mm	`Round — Idler`	`130.19` mm	`129.2` mm	`0.19` kg
`MPBSTUSP1645`	`16`	`45` mm	`Round — Drive`	`130.19` mm	`129.2` mm	`0.18` kg
`MPBSFUSP1645`	`16`	`45` mm	`Round — Idler`	`130.19` mm	`129.2` mm	`0.18` kg
`MPBSTUSP1650`	`16`	`50` mm	`Round — Drive`	`130.19` mm	`129.2` mm	`0.17` kg
`MPBSFUSP1650`	`16`	`50` mm	`Round — Idler`	`130.19` mm	`129.2` mm	`0.17` kg
`MPBSTUSP1830`	`18`	`30` mm	`Round — Drive`	`146.27` mm	`145` mm	`0.33` kg
`MPBSFUSP1830`	`18`	`30` mm	`Round — Idler`	`146.27` mm	`145` mm	`0.33` kg
`MPBSTUSP1835`	`18`	`35` mm	`Round — Drive`	`146.27` mm	`145` mm	`0.32` kg
`MPBSFUSP1835`	`18`	`35` mm	`Round — Idler`	`146.27` mm	`145` mm	`0.32` kg
`MPBSQUSP1840`	`18`	`40` mm	`Square — Drive/Idler`	`146.27` mm	`145` mm	`0.32` kg
`MPBSTUSP1840`	`18`	`40` mm	`Round — Drive`	`146.27` mm	`145` mm	`0.32` kg
`MPBSFUSP1840`	`18`	`40` mm	`Round — Idler`	`146.27` mm	`145` mm	`0.32` kg
`MPBSTUSP1845`	`18`	`45` mm	`Round — Drive`	`146.27` mm	`145` mm	`0.31` kg
`MPBSFUSP1845`	`18`	`45` mm	`Round — Idler`	`146.27` mm	`145` mm	`0.31` kg
`MPBSQUSP1850`	`18`	`50` mm	`Square — Drive/Idler`	`146.27` mm	`145` mm	`0.3` kg
`MPBSTUSP1850`	`18`	`50` mm	`Round — Drive`	`146.27` mm	`145` mm	`0.3` kg
`MPBSFUSP1850`	`18`	`50` mm	`Round — Idler`	`146.27` mm	`145` mm	`0.3` kg
`MPBSQUSP1860`	`18`	`60` mm	`Square — Drive/Idler`	`146.27` mm	`145` mm	`0.28` kg
`MPBSTUSP1860`	`18`	`60` mm	`Round — Drive`	`146.27` mm	`145` mm	`0.28` kg
`MPBSFUSP1860`	`18`	`60` mm	`Round — Idler`	`146.27` mm	`145` mm	`0.28` kg
`MPBSQUSP1865`	`18`	`65` mm	`Square — Drive/Idler`	`146.27` mm	`145` mm	`0.24` kg
`MPBSTUSP2130`	`21`	`30` mm	`Round — Drive`	`170.42` mm	`170` mm	`0.4` kg
`MPBSFUSP2130`	`21`	`30` mm	`Round — Idler`	`170.42` mm	`170` mm	`0.4` kg
`MPBSTUSP2135`	`21`	`35` mm	`Round — Drive`	`170.42` mm	`170` mm	`0.39` kg
`MPBSFUSP2135`	`21`	`35` mm	`Round — Idler`	`170.42` mm	`170` mm	`0.39` kg
`MPBSQUSP2140`	`21`	`40` mm	`Square — Drive/Idler`	`170.42` mm	`170` mm	`0.38` kg
`MPBSTUSP2140`	`21`	`40` mm	`Round — Drive`	`170.42` mm	`170` mm	`0.38` kg
`MPBSFUSP2140`	`21`	`40` mm	`Round — Idler`	`170.42` mm	`170` mm	`0.38` kg
`MPBSTUSP2145`	`21`	`45` mm	`Round — Drive`	`170.42` mm	`170` mm	`0.38` kg
`MPBSFUSP2145`	`21`	`45` mm	`Round — Idler`	`170.42` mm	`170` mm	`0.38` kg
`MPBSQUSP2150`	`21`	`50` mm	`Square — Drive/Idler`	`170.42` mm	`170` mm	`0.37` kg
`MPBSTUSP2150`	`21`	`50` mm	`Round — Drive`	`170.42` mm	`170` mm	`0.37` kg
`MPBSFUSP2150`	`21`	`50` mm	`Round — Idler`	`170.42` mm	`170` mm	`0.37` kg
`MPBSQUSP2160`	`21`	`60` mm	`Square — Drive/Idler`	`170.42` mm	`170` mm	`0.34` kg
`MPBSTUSP2160`	`21`	`60` mm	`Round — Drive`	`170.42` mm	`170` mm	`0.34` kg
`MPBSFUSP2160`	`21`	`60` mm	`Round — Idler`	`170.42` mm	`170` mm	`0.34` kg
`MPBSQUSP2165`	`21`	`65` mm	`Square — Drive/Idler`	`170.42` mm	`170` mm	`0.31` kg
