Regina

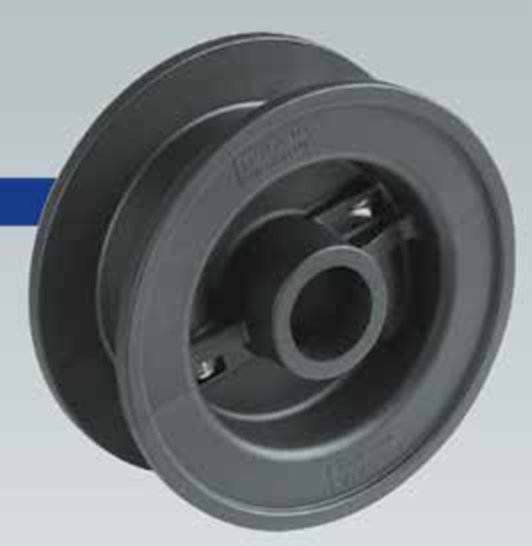

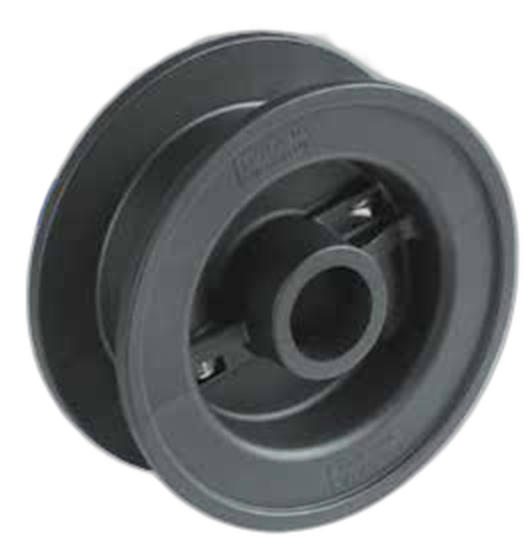

Moulded Split Idler Wheels — 250 Series

Name: Moulded Split Idler Wheels — 250 Series
Brand: Regina

Sprockets for Modular Belts · 250

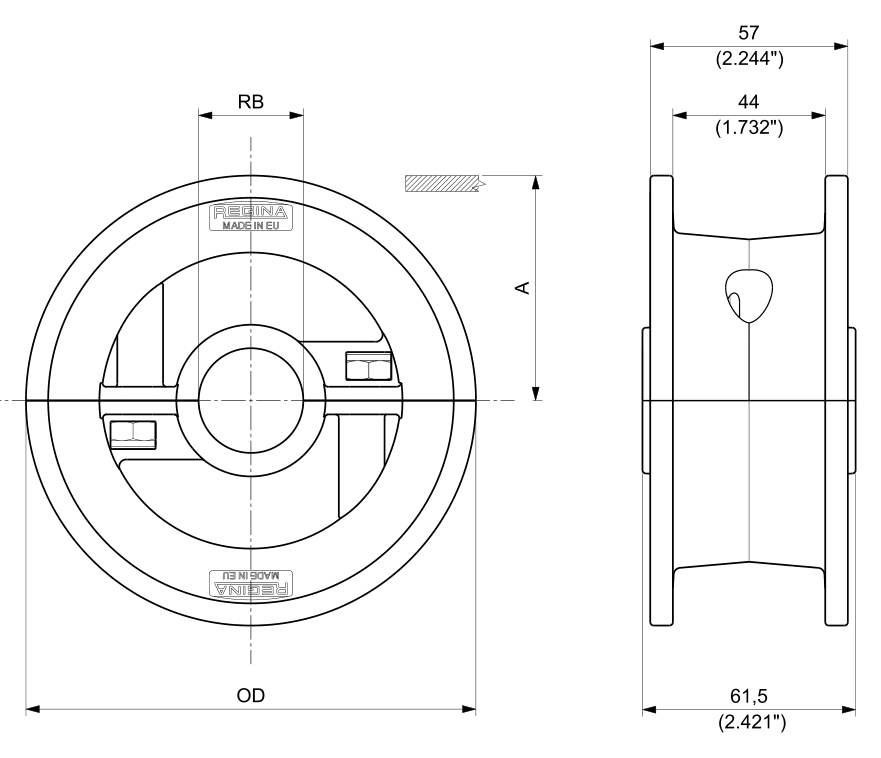

Moulded Split Idler Wheels for the Regina 250 Series (Regina Conveyor Catalogue p195). Suitable for chains: 500 / 600 / 610 / LBP 610 / HF 510 / HFS 510 / 300 / 200 / HF 200 / 650M, 1500 / 1600 / RR 1500 / HF 1600 / HFS 1600, 7300 / 7200, USPM / USP / HF USPM / HFS USPM / LBP USPM / LBP XSPM, 762M / 763M / 793M. Round bore idler wheels — bore diameter is indicated.

Select a row to add it to your quote

Configuration

Code	N. Teeth	Bore size	Bore type	OD	Weight
`CMTS048152125`	`21`	`25` mm	`Round — Idler`	`129.8` mm	`0.33` kg
`CMTS048152130`	`21`	`30` mm	`Round — Idler`	`129.8` mm	`0.33` kg
`CMTS048152135`	`21`	`35` mm	`Round — Idler`	`129.8` mm	`0.31` kg
`CMTS048152140`	`21`	`40` mm	`Round — Idler`	`129.8` mm	`0.34` kg
`CMTS048152145`	`21`	`45` mm	`Round — Idler`	`129.8` mm	`0.31` kg
`CMTS048152325`	`23`	`25` mm	`Round — Idler`	`142.3` mm	`0.36` kg
`CMTS048152330`	`23`	`30` mm	`Round — Idler`	`142.3` mm	`0.37` kg
`CMTS048152335`	`23`	`35` mm	`Round — Idler`	`142.3` mm	`0.35` kg
`CMTS048152340`	`23`	`40` mm	`Round — Idler`	`142.3` mm	`0.38` kg
`CMTS048152345`	`23`	`45` mm	`Round — Idler`	`142.3` mm	`0.35` kg
`CMTS048152525`	`25`	`25` mm	`Round — Idler`	`154.7` mm	`0.4` kg
`CMTS048152530`	`25`	`30` mm	`Round — Idler`	`154.7` mm	`0.41` kg
`CMTS048152535`	`25`	`35` mm	`Round — Idler`	`154.7` mm	`0.39` kg
`CMTS048152540`	`25`	`40` mm	`Round — Idler`	`154.7` mm	`0.42` kg
`CMTS048152545`	`25`	`45` mm	`Round — Idler`	`154.7` mm	`0.39` kg
