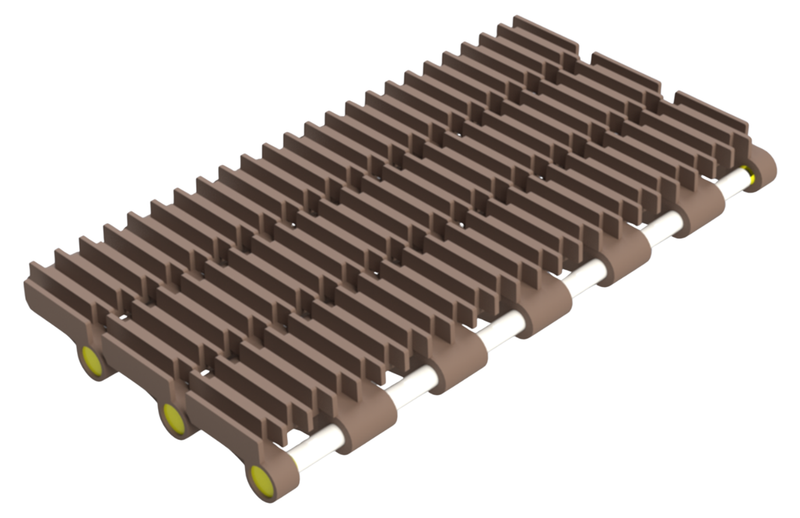

2137 Raised Rib Modular Belt
2137 is a raised rib, light duty modular belt used for bottling, canning and container handling applications. The ribbed surface takes finger transfer plates for a smooth transfer between conveyors.
Build your belt
Belts are assembled in 0.5″ (12.7 mm) increments, minimum 3″. Please allow for a slight variation in width on assembly.
Standard pins are PP — you only choose here when you need something else.
Anything the steps above can't describe goes on a drawing — your drawing, your number.
Specifications
Belt
| Pitch | 1″ (25.4 mm) |
| Thickness | 8.7 mm base · 14 mm incl. ribs |
| Open area | 5% |
| Widths | 3″ and up, in 0.5″ (12.7 mm) increments |
| Min. back-bend radius | 40 mm |
| Running | straight |
| Approx. weight | acetal ±6.5 kg/m² · PP ±5.1 kg/m² |
Chains & what fits them
| Code | Material | Colour | Pushers | HF links | Side guides | Working load | Temp. in air | Temp. in water |
|---|---|---|---|---|---|---|---|---|
BPP2137 |
Polypropylene (PP) | Blue | — | — | — | 7200 N/m | 5°C to 104°C | 5°C to 104°C |
LF2137 |
Low-friction acetal (LF) | Brown | — | — | — | 15000 N/m | -40°C to 80°C | -40°C to 65°C |
How our belt codes work
A Nusaf belt code has two parts: a short SKU that identifies the belt, and a belt specification that carries everything else.
Attachments and modifications never change the SKU — they're written as the belt specification after it. On your quote and job card the full line reads, for example:
Reordering is simple: quote the SKU plus the belt specification — or ask us to register a repeat build and we'll give it a short reorder number.
Need help specifying this product?
Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
