Regina

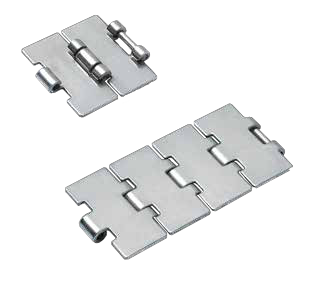

P 915 Series
Product Configuration
Select a row to add it to your quote
| Code | Width W | Pin | Working load | Weight |
|---|---|---|---|---|
P915KS/000 |
K 2 ¼ (57.1 mm) | Austenitic Stainless Steel | 8500 N |
2.0 kg/m |
P915KR/000 |
K 2 ½ (63.5 mm) | Austenitic Stainless Steel | 8500 N |
2.14 kg/m |
P915KC/000 |
K 2 ⅝ (66.7 mm) | Austenitic Stainless Steel | 8500 N |
2.21 kg/m |
P915KD/000 |
K 3 ¼ (82.6 mm) | Austenitic Stainless Steel | 8500 N |
2.57 kg/m |
P915KRA/000 |
K 83,8 (83.8 mm) | Austenitic Stainless Steel | 8500 N |
2.6 kg/m |
P915KE/000 |
K 3 ½ (88.9 mm) | Austenitic Stainless Steel | 8500 N |
2.71 kg/m |
P915KF/000 |
K 4 (101.6 mm) | Austenitic Stainless Steel | 8500 N |
2.99 kg/m |
P915KG/000 |
K 4 ½ (114.3 mm) | Austenitic Stainless Steel | 8500 N |
3.28 kg/m |
P915KH/000 |
K 6 (152.4 mm) | Austenitic Stainless Steel | 8500 N |
4.13 kg/m |
P915KL/000 |
K 7 ½ (190.5 mm) | Austenitic Stainless Steel | 8500 N |
4.99 kg/m |
No products match the selected filters.

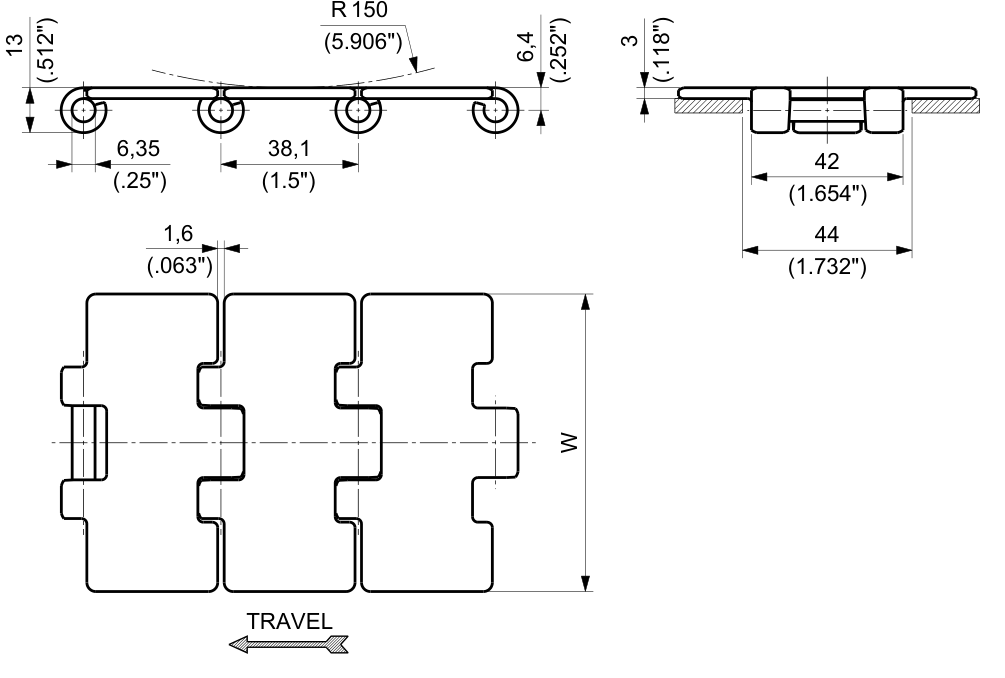

Product Information
- Type
- FliteTop
- Hinge
- Single Hinge
- Pitch
38.1mm- Thickness
3.0mm- Hinge Width
42.0mm- Material
- PRIMA Superior Grade Ferritic Stainless Steel
- Packaging
- Rolls of
3.048m
P — PRIMA Superior Grade Ferritic Stainless Steel
Superior grade of cold rolled special ferritic stainless steel. Special Cr-Ni alloy offering very good wear and mechanical properties. Particularly suitable for high productivity lines (combiners and inliners).
Pin material (all variants): Austenitic Stainless Steel
Need help specifying this product?
Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
