Regina

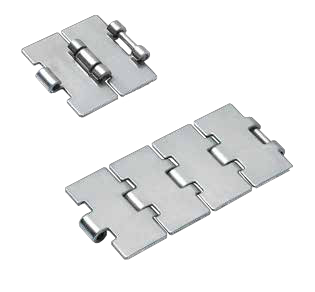

PHD 915 Series
Product Configuration
Select a row to add it to your quote
| Code | Width W | Pin | Working load | Weight |
|---|---|---|---|---|
XPHD915KD/000 |
K 3 ¼ (82.6 mm) | Hardened Martensitic Stainless Steel | 8500 N |
2.57 kg/m |
XPHD915KRA/000 |
K 83,8 (83.8 mm) | Hardened Martensitic Stainless Steel | 8500 N |
2.6 kg/m |
PHD915KG/000 |
K 4 ½ (114.3 mm) | Hardened Martensitic Stainless Steel | 8500 N |
3.28 kg/m |
PHD915KL/000 |
K 7 ½ (190.5 mm) | Hardened Martensitic Stainless Steel | 8500 N |
4.99 kg/m |
No products match the selected filters.
Product Information
- Type
- FliteTop
- Hinge
- Single Hinge
- Pitch
38.1mm- Thickness
3.0mm- Hinge Width
42.0mm- Material
- PRIMA Superior Grade Ferritic Stainless Steel
- Packaging
- Rolls of
3.048m
P — PRIMA Superior Grade Ferritic Stainless Steel
Superior grade of cold rolled special ferritic stainless steel. Special Cr-Ni alloy offering very good wear and mechanical properties. Particularly suitable for high productivity lines (combiners and inliners).
Pin material (all variants): Hardened Martensitic Stainless Steel — increased pin hardness (PHD series).
Need help specifying this product?
Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
