Regina

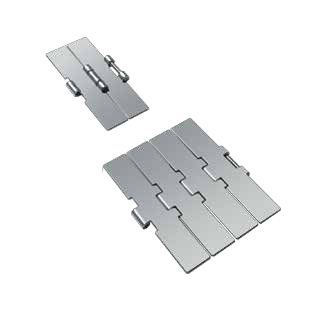

PHD 9157 Series
Product Configuration
Select a row to add it to your quote
| Code | Width W | Pin | Working load | Weight |
|---|---|---|---|---|
PHD9157KL/000 |
K 7 ½ (190.5 mm) | Hardened Martensitic Stainless Steel | 10500 N |
5.28 kg/m |
No products match the selected filters.
Product Information
- Type
- FliteTop
- Hinge
- Heavy Duty Single Hinge

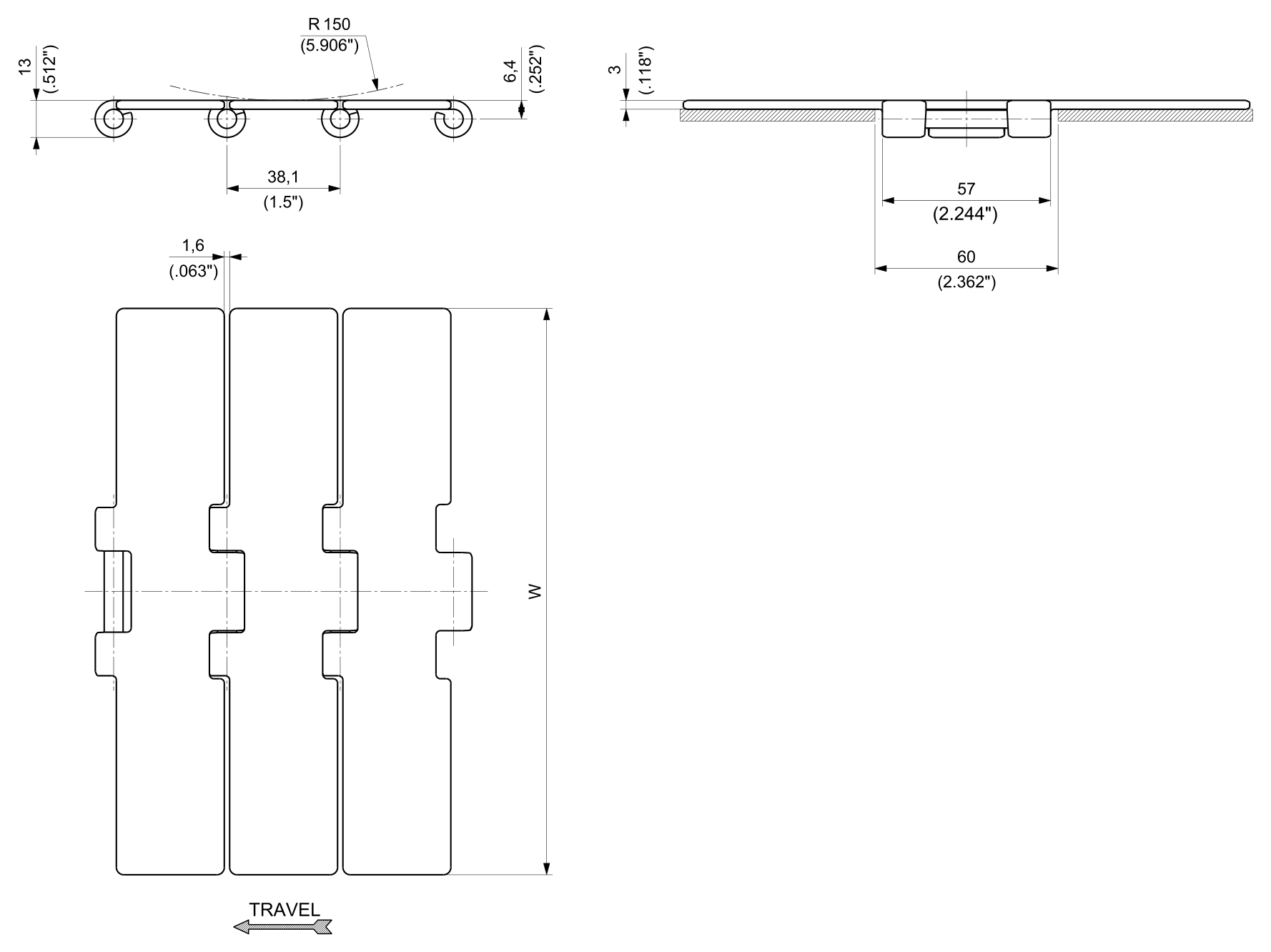

- Pitch
38.1mm- Thickness
3.0mm- Hinge Width
57.0mm- Material
- PRIMA Superior Grade Ferritic Stainless Steel
- Packaging
- Rolls of
3.048m
P — PRIMA Superior Grade Ferritic Stainless Steel
Superior grade of cold rolled special ferritic stainless steel. Special Cr-Ni alloy offering very good wear and mechanical properties. Particularly suitable for high productivity lines (combiners and inliners).
Pin material (all variants): Hardened Martensitic Stainless Steel — increased pin hardness (PHD series).
