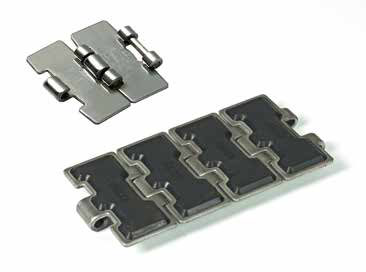

PHDG 915 Series
Product Configuration
Select a row to add it to your quote
| Code | Width W | Pin | Working load | Weight |
|---|---|---|---|---|
PHDG915KD/000 |
K 3 ¼ (82.6 mm) | Hardened Martensitic Stainless Steel | 8500 N |
2.57 kg/m |
PHDG915KG/000 |
K 4 ½ (114.3 mm) | Hardened Martensitic Stainless Steel | 8500 N |
3.28 kg/m |
PHDG915KL/000 |
K 7 ½ (190.5 mm) | Hardened Martensitic Stainless Steel | 8500 N |
4.99 kg/m |
No products match the selected filters.
Product Information
- Type
- FliteTop
- Hinge
- Single Hinge
- Pitch
38.1mm- Thickness
3.0mm- Hinge Width
42.0mm- Material
- PRIMA Superior Grade Ferritic Stainless Steel
- Packaging
- Rolls of
3.048m
P — PRIMA Superior Grade Ferritic Stainless Steel
Superior grade of cold rolled special ferritic stainless steel. Special Cr-Ni alloy offering very good wear and mechanical properties. Particularly suitable for high productivity lines (combiners and inliners).
Pin material (all variants): Hardened Martensitic Stainless Steel — increased pin hardness (PHD series).
Top surface — NBR Rubber: NBR Rubber with hardness of 70 ShA, applied on stainless steel chains, guarantees an excellent product grip on inclined/declined conveyors, high wear resistance and superior resistance against sanitizers ordinary used in bottling industries.
