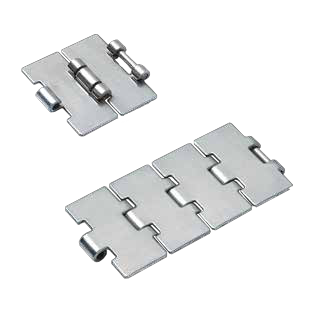

Regina
SS 915-4 Series
Product Configuration
Select a row to add it to your quote
| Code | Width W | Pin | Working load | Weight |
|---|---|---|---|---|
SS915-4KD/000 |
K 3 ¼ (82.6 mm) | Austenitic Stainless Steel | 5800 N |
2.52 kg/m |
SS915-4KRA/000 |
K 83,8 (83.8 mm) | Austenitic Stainless Steel | 5800 N |
2.55 kg/m |
SS915-4KG/000 |
K 4 ½ (114.3 mm) | Austenitic Stainless Steel | 5800 N |
3.21 kg/m |
SS915-4KL/000 |
K 7 ½ (190.5 mm) | Austenitic Stainless Steel | 5800 N |
4.96 kg/m |
No products match the selected filters.

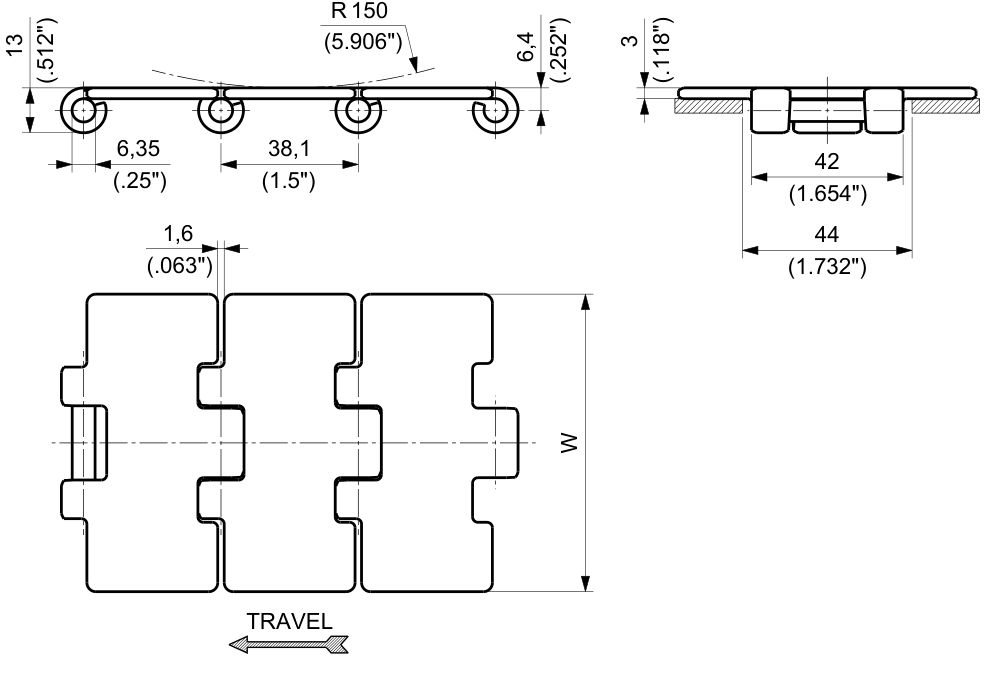

Product Information
- Type
- FliteTop
- Hinge
- Single Hinge
- Pitch
38.1mm- Thickness
3.0mm- Hinge Width
42.0mm- Material
- Ferritic Stainless Steel
- Packaging
- Rolls of
3.048m
SS-4 — Ferritic Stainless Steel
Cold rolled ferritic stainless steel. Good wear, mechanical and corrosion resistance. For food & beverage applications.
Pin material (all variants): Austenitic Stainless Steel
Need help specifying this product?
Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
