Regina

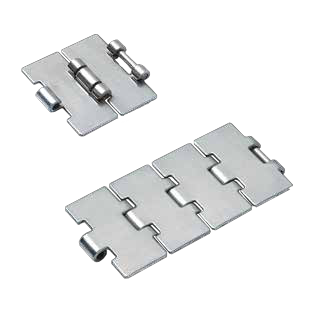

SS 915 Series
Product Configuration
Select a row to add it to your quote
| Code | Width W | Pin | Working load | Weight |
|---|---|---|---|---|
SS915KD/000 |
K 3 ¼ (82.6 mm) | Austenitic Stainless Steel | 5600 N |
2.57 kg/m |
SS915KF/000 |
K 4 (101.6 mm) | Austenitic Stainless Steel | 5600 N |
2.99 kg/m |
SS915KG/000 |
K 4 ½ (114.3 mm) | Austenitic Stainless Steel | 5600 N |
3.28 kg/m |
SS915KH/000 |
K 6 (152.4 mm) | Austenitic Stainless Steel | 5600 N |
4.13 kg/m |
SS915KL/000 |
K 7 ½ (190.5 mm) | Austenitic Stainless Steel | 5600 N |
4.99 kg/m |
No products match the selected filters.

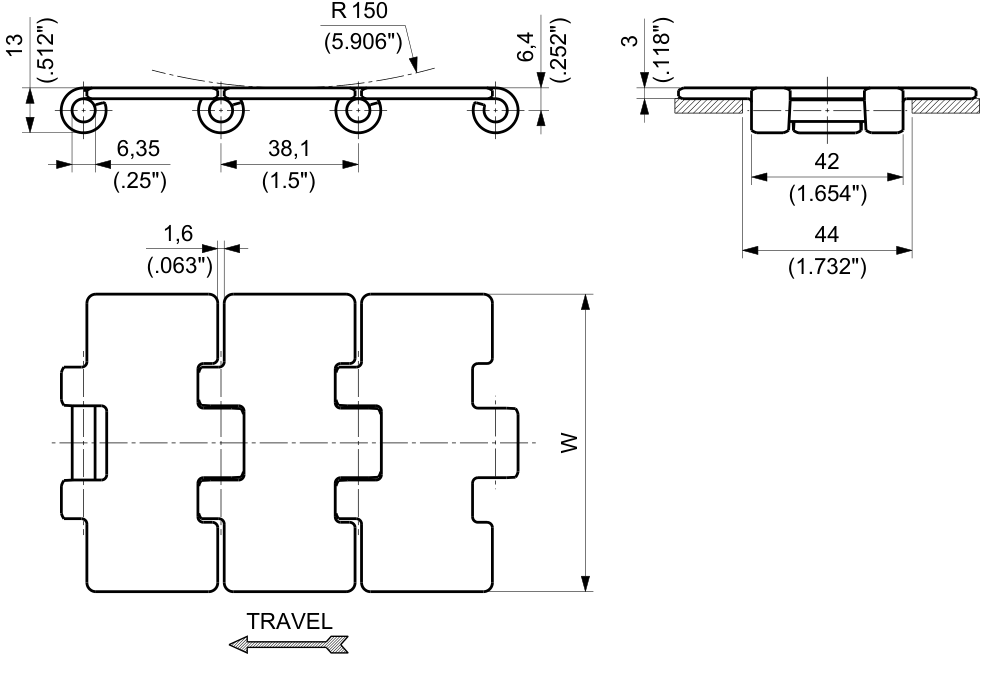

Product Information
- Type
- FliteTop
- Hinge
- Single Hinge
- Pitch
38.1mm- Thickness
3.0mm- Hinge Width
42.0mm- Material
- Austenitic Stainless Steel
- Packaging
- Rolls of
3.048m
SS — Austenitic Stainless Steel
Cr-Ni austenitic cold rolled stainless steel. It guarantees the best corrosion resistance to withstand chemical attack. It offers very good wear resistance, due to work hardening and homogeneous chemical structure.
Pin material (all variants): Austenitic Stainless Steel
