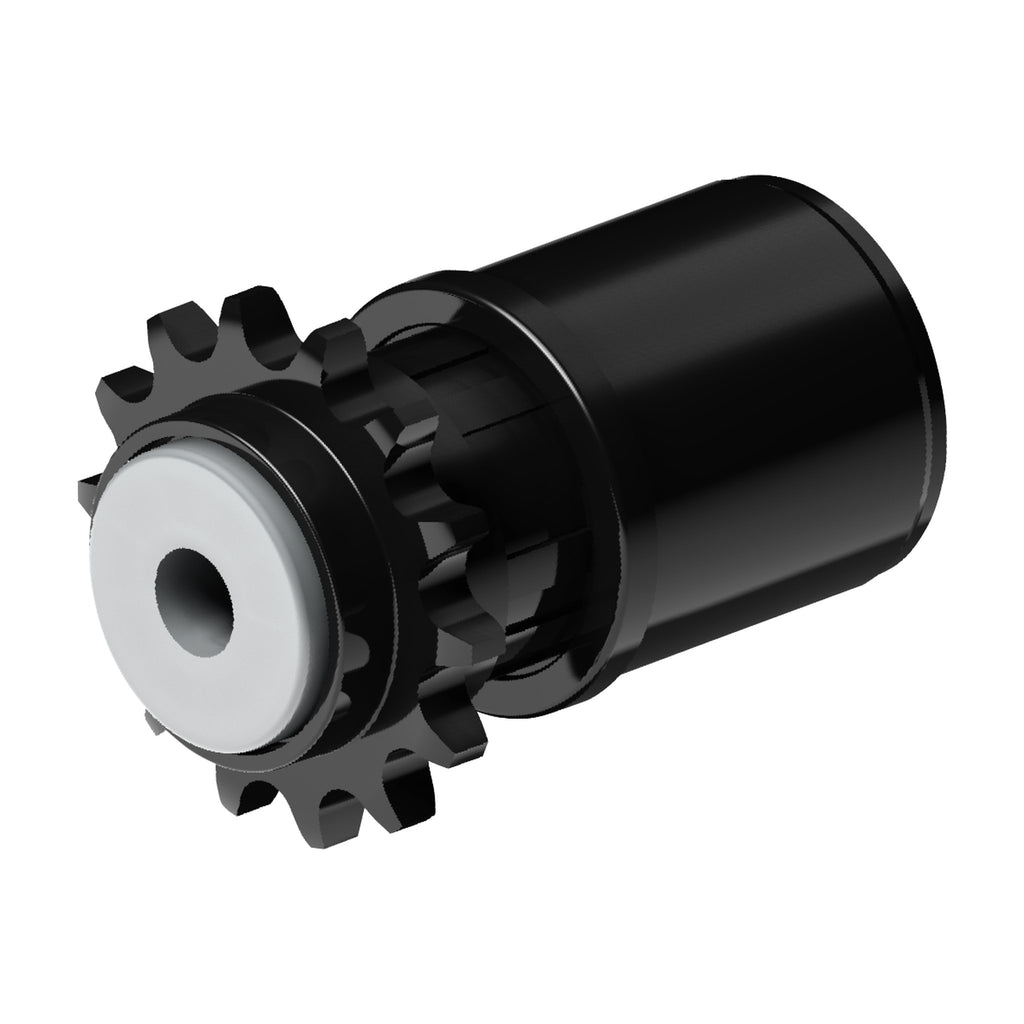

Tecom 14-Teeth Bearing Support for Conveyor Rollers (for drive roller) — Part 1264
Tecom

14-Teeth Bearing Support for Conveyor Rollers (for drive roller) — Part 1264

Bearing supports · Bearing Support

Product Configuration

Select a row to add it to your quote

Code Tube ⌀ThickInside ⌀D1D2HLDfDrive typeBearing
1264-82033 50 mm 1.5 mm 47 mm 50 mm 47 mm 32 mm 83 mm 12 mm Fixed 6002-2RS
1264-82217 50 mm 1.5 mm 47 mm 50 mm 47 mm 32 mm 83 mm 12 mm Friction 6002-2RS
1264-82215 50 mm 1.5 mm 47 mm 50 mm 47 mm 32 mm 83 mm 14 mm Fixed 6002-2RS
1264-82218 50 mm 1.5 mm 47 mm 50 mm 47 mm 32 mm 83 mm 14 mm Friction 6002-2RS
1264-85074 60 mm 1.5 mm 57 mm 60 mm 57 mm 39 mm 83 mm 12 mm Fixed 6002-2RS
1264-84244 60 mm 1.5 mm 57 mm 60 mm 57 mm 39 mm 83 mm 12 mm Friction 6002-2RS
1264-85075 60 mm 1.5 mm 57 mm 60 mm 57 mm 39 mm 83 mm 14 mm Fixed 6002-2RS
1264-84245 60 mm 1.5 mm 57 mm 60 mm 57 mm 39 mm 83 mm 14 mm Friction 6002-2RS
1264-85076 60 mm 2 mm 56 mm 60 mm 56 mm 39 mm 83 mm 12 mm Fixed 6002-2RS
1264-84246 60 mm 2 mm 56 mm 60 mm 56 mm 39 mm 83 mm 12 mm Friction 6002-2RS
1264-85077 60 mm 2 mm 56 mm 60 mm 56 mm 39 mm 83 mm 14 mm Fixed 6002-2RS
1264-84247 60 mm 2 mm 56 mm 60 mm 56 mm 39 mm 83 mm 14 mm Friction 6002-2RS
1264-85078 60 mm 2.75 mm 54.5 mm 60 mm 54.5 mm 39 mm 83 mm 12 mm Fixed 6002-2RS
1264-84251 60 mm 2.75 mm 54.5 mm 60 mm 54.5 mm 39 mm 83 mm 12 mm Friction 6002-2RS
1264-85079 60 mm 2.75 mm 54.5 mm 60 mm 54.5 mm 39 mm 83 mm 14 mm Fixed 6002-2RS
1264-84253 60 mm 2.75 mm 54.5 mm 60 mm 54.5 mm 39 mm 83 mm 14 mm Friction 6002-2RS

Product Information

Material
Bearing support with protective shield made of polyamide grey colour; external bushing made of polyamide black colour; bearing made of chrome steel.

Need help specifying this product?

Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
