Tecom Bearing Support for Conveyor Rollers (for idler roller) — Part 1263
Tecom

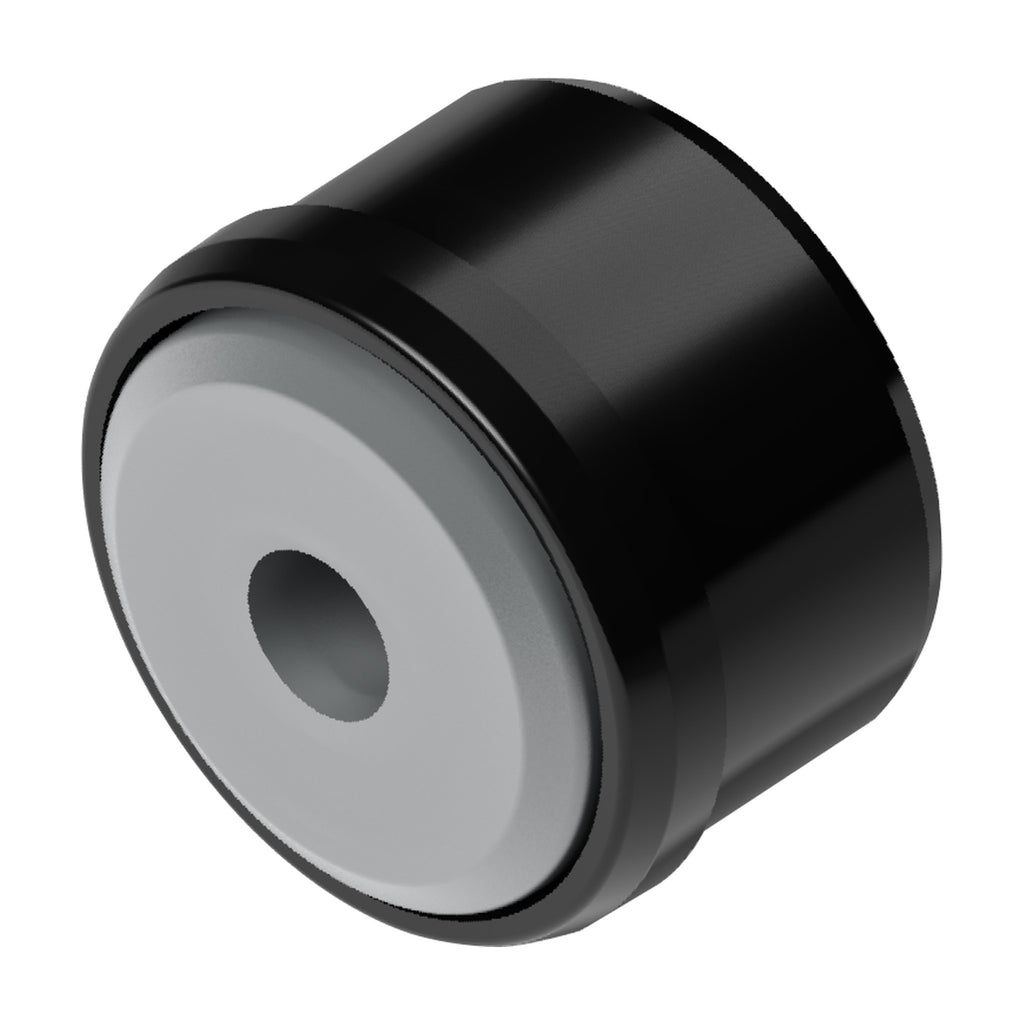

Bearing Support for Conveyor Rollers (for idler roller) — Part 1263

Bearing supports · Bearing Support

Product Configuration

Select a row to add it to your quote

Code Tube ⌀ThickInside ⌀D1D2HLDfBearing materialBearing
1263-82032 50 mm 1.5 mm 47 mm 50 mm 47 mm 11 mm 30 mm 14 mm Chrome steel 6202-2RS
1263-83737 50 mm 1.5 mm 47 mm 50 mm 47 mm 11 mm 30 mm 14 mm Stainless steel 6202-2RS
1263-82256 50 mm 1.5 mm 47 mm 50 mm 47 mm 11 mm 30 mm 12 mm Chrome steel 6202-2RS
1263-87652 50 mm 1.5 mm 47 mm 50 mm 47 mm 11 mm 30 mm 12 mm Stainless steel 6202-2RS
1263-85071 60 mm 1.5 mm 57 mm 60 mm 57 mm 15 mm 53 mm 14 mm Chrome steel 6202-2RS
1263-90898 60 mm 1.5 mm 57 mm 60 mm 57 mm 15 mm 53 mm 14 mm Stainless steel 6202-2RS
1263-85068 60 mm 1.5 mm 57 mm 60 mm 57 mm 15 mm 53 mm 12 mm Chrome steel 6202-2RS
1263-90899 60 mm 1.5 mm 57 mm 60 mm 57 mm 15 mm 53 mm 12 mm Stainless steel 6202-2RS
1263-85072 60 mm 2 mm 56 mm 60 mm 56 mm 15 mm 53 mm 14 mm Chrome steel 6202-2RS
1263-90900 60 mm 2 mm 56 mm 60 mm 56 mm 15 mm 53 mm 14 mm Stainless steel 6202-2RS
1263-85069 60 mm 2 mm 56 mm 60 mm 56 mm 15 mm 53 mm 12 mm Chrome steel 6202-2RS
1263-90901 60 mm 2 mm 56 mm 60 mm 56 mm 15 mm 53 mm 12 mm Stainless steel 6202-2RS
1263-85073 60 mm 2.75 mm 54.5 mm 60 mm 54.5 mm 15 mm 53 mm 14 mm Chrome steel 6202-2RS
1263-90902 60 mm 2.75 mm 54.5 mm 60 mm 54.5 mm 15 mm 53 mm 14 mm Stainless steel 6202-2RS
1263-85070 60 mm 2.75 mm 54.5 mm 60 mm 54.5 mm 15 mm 53 mm 12 mm Chrome steel 6202-2RS
1263-90903 60 mm 2.75 mm 54.5 mm 60 mm 54.5 mm 15 mm 53 mm 12 mm Stainless steel 6202-2RS

Product Information

Material
Bearing support with protective shield made of polyamide grey colour; external bushing made of polyamide black colour; bearing made of chrome steel or stainless steel.
