Tecom

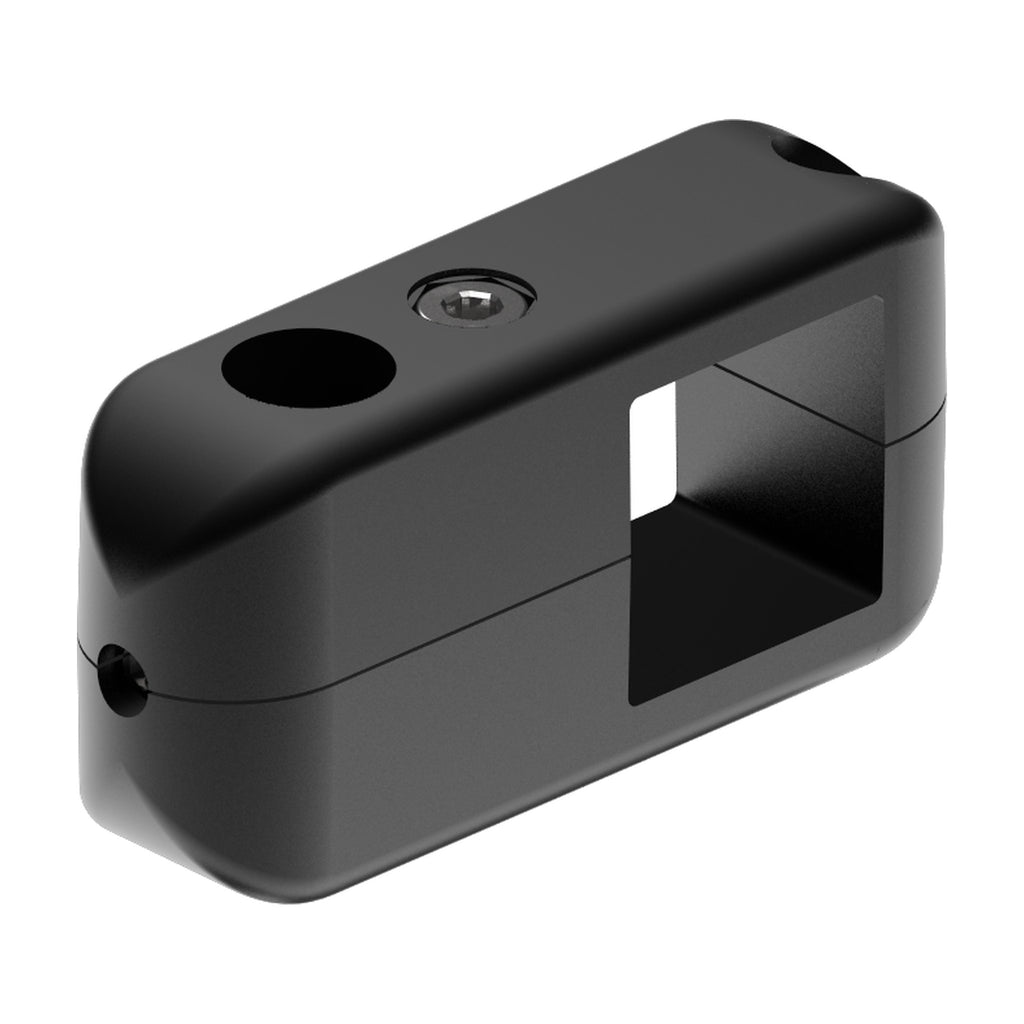

Cross Clamp for Central Roller Guides Support — Part 1435
Product Configuration
Select a row to add it to your quote
| Code | d1 | Type | A | B | C |
|---|---|---|---|---|---|
1435-85166 |
15-16 mm
|
Type 1
|
40 mm
|
42.4 mm
|
58 mm
|
1435-85167 |
15-16 mm
|
Type 2
|
40 mm
|
42.4 mm
|
58 mm
|
1435-86692 |
15-16 mm
|
Type 3
|
40 mm
|
42.4 mm
|
58 mm
|
1435-85168 |
20 mm
|
Type 1
|
40 mm
|
42.4 mm
|
56 mm
|
1435-85169 |
20 mm
|
Type 2
|
40 mm
|
42.4 mm
|
56 mm
|
1435-86691 |
20 mm
|
Type 3
|
40 mm
|
42.4 mm
|
56 mm
|
No products match the selected filters.
Product Information
- Material
- Clamp and handles are made of reinforced polyamide black colour; nuts, screws and washer in stainless steel AISI 304.
Need help specifying this product?
Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
