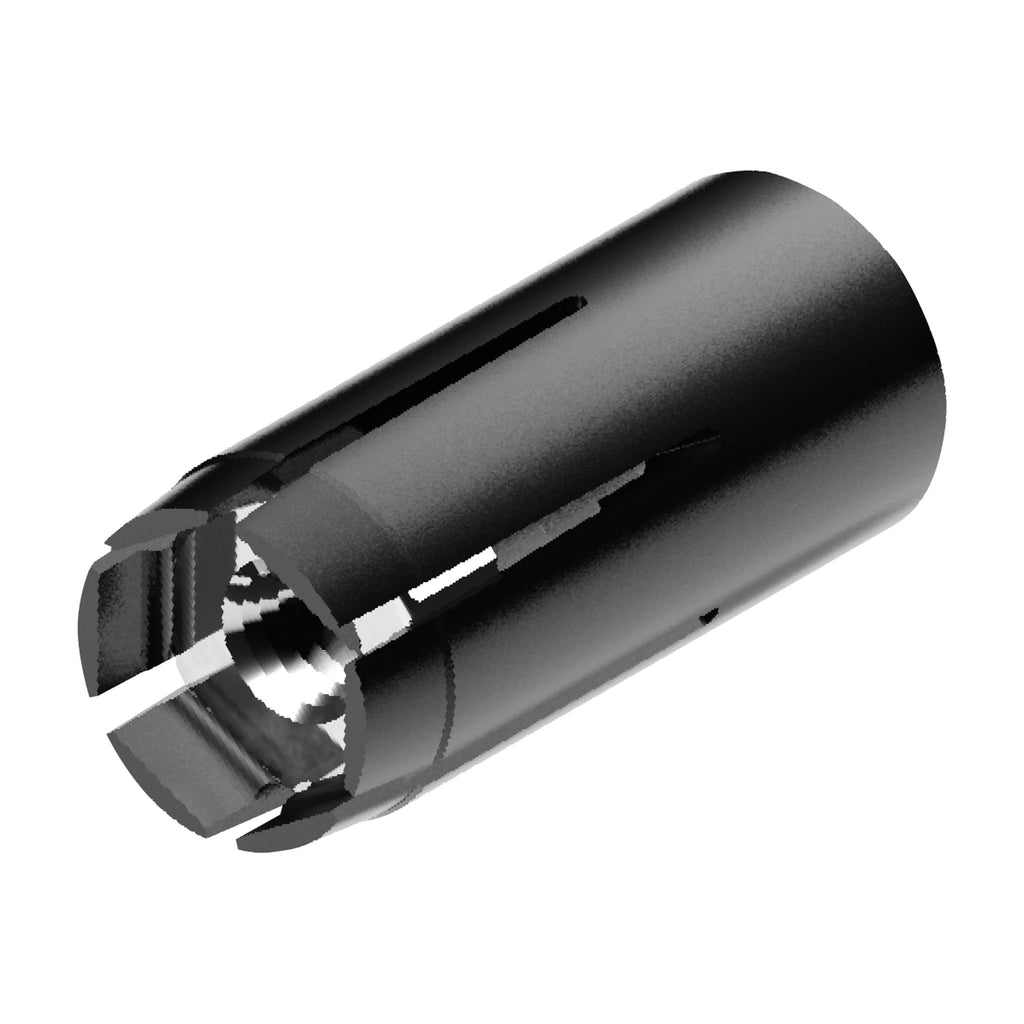

Tecom Expansion Plug (for round tubes) — Part 1283
Tecom

Expansion Plug (for round tubes) — Part 1283

Bushings · Expansion Plug

Product Configuration

Select a row to add it to your quote

Code TypeOutsideDThicknessInsideD1D2D3HLMN
1283-82579 Type 1 20 mm M8 1.5 mm 17 mm 17 mm 8.5 mm 17 mm 6.5 mm 40.5 mm 19 mm 29 mm
1283-87815 Type 1 33.7 mm M8 1.5 mm 30.7 mm 30.7 mm 8.5 mm 30.7 mm 8 mm 40.5 mm 13 mm 26 mm
1283-87816 Type 1 38 mm M8 1.5 mm 35 mm 35 mm 10.5 mm 35 mm 13 mm 69 mm 24.8 mm 47.5 mm
1283-87364 Type 1 42.4 mm M8 1.5 mm 39.4 mm 39.4 mm 10.5 mm 39.4 mm 13 mm 69 mm 24.8 mm 47.5 mm
1283-87817 Type 1 48.3 mm M8 1.5 mm 45.3 mm 45.3 mm 10.5 mm 45.3 mm 13 mm 69 mm 24.8 mm 47.5 mm
1283-82505 Type 1 25 mm M10 1.5 mm 22 mm 22 mm 10.5 mm 22 mm 8 mm 40.5 mm 13 mm 26 mm
1283-87818 Type 1 33.7 mm M10 1.5 mm 30.7 mm 30.7 mm 10.5 mm 30.7 mm 8 mm 40.5 mm 13 mm 26 mm
1283-87819 Type 1 38 mm M10 1.5 mm 35 mm 35 mm 10.5 mm 35 mm 13 mm 69 mm 24.8 mm 47.5 mm
1283-87365 Type 1 42.4 mm M10 1.5 mm 39.4 mm 39.4 mm 10.5 mm 39.4 mm 13 mm 69 mm 24.8 mm 47.5 mm
1283-87820 Type 1 48.3 mm M10 1.5 mm 45.3 mm 45.3 mm 10.5 mm 45.3 mm 13 mm 69 mm 24.8 mm 47.5 mm
1283-82664 Type 2 20 mm M8 1.5 mm 17 mm 17 mm 8.5 mm 20 mm 6.5 mm 40.5 mm 19 mm 29 mm
1283-87821 Type 2 33.7 mm M8 1.5 mm 30.7 mm 30.7 mm 8.5 mm 33.7 mm 8 mm 40.5 mm 13 mm 26 mm
1283-87822 Type 2 38 mm M8 1.5 mm 35 mm 35 mm 10.5 mm 38 mm 13 mm 69 mm 24.8 mm 47.5 mm
1283-87366 Type 2 42.4 mm M8 1.5 mm 39.4 mm 39.4 mm 10.5 mm 42.4 mm 13 mm 69 mm 24.8 mm 47.5 mm
1283-87823 Type 2 48.3 mm M8 1.5 mm 45.3 mm 45.3 mm 10.5 mm 48.3 mm 13 mm 69 mm 24.8 mm 47.5 mm
1283-84865 Type 2 25 mm M10 1.5 mm 22 mm 22 mm 10.5 mm 25 mm 8 mm 40.5 mm 13 mm 26 mm
1283-87824 Type 2 33.7 mm M10 1.5 mm 30.7 mm 30.7 mm 10.5 mm 33.7 mm 8 mm 40.5 mm 13 mm 26 mm
1283-87825 Type 2 38 mm M10 1.5 mm 35 mm 35 mm 10.5 mm 38 mm 13 mm 69 mm 24.8 mm 47.5 mm
1283-87367 Type 2 42.4 mm M10 1.5 mm 39.4 mm 39.4 mm 10.5 mm 42.4 mm 13 mm 69 mm 24.8 mm 47.5 mm
1283-87826 Type 2 48.3 mm M10 1.5 mm 45.3 mm 45.3 mm 10.5 mm 48.3 mm 13 mm 69 mm 24.8 mm 47.5 mm

Product Information

Material
Plug made of reinforced polyamide black colour; nut made of brass (for outside diameter of 20 and 25mm) or stainless steel (for outside diameter of 33.7, 38, 42.4, 48.3mm).

Need help specifying this product?

Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
