Tecom

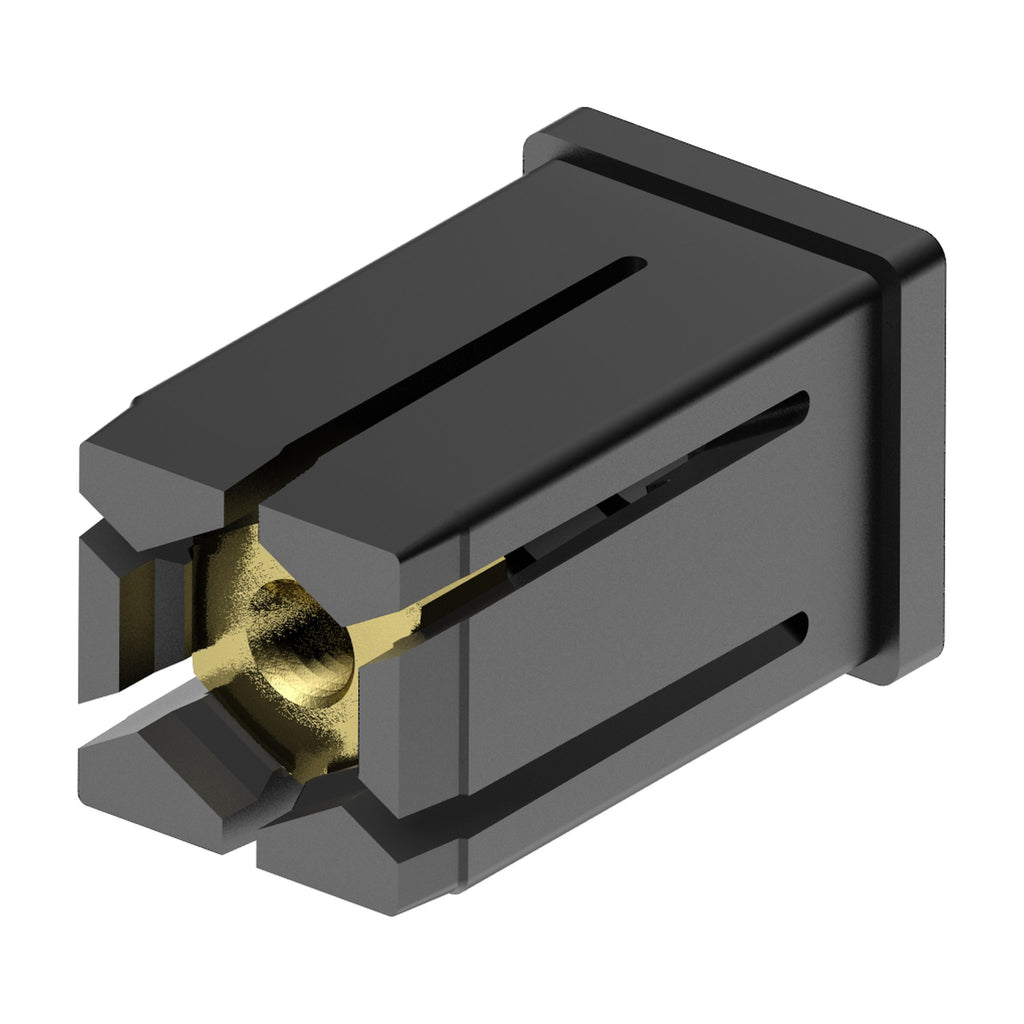

Expansion Plug (for square tubes) — Part 1414

Name: Tecom Expansion Plug (for square tubes) — Part 1414
Brand: Tecom

Bushings · Expansion Plug

Select a row to add it to your quote

Variant

Code	Type	Outside	D	Thickness	Inside	D1	D2	H	L	M	N
`1414-84868`	`Type 1`	`40x40` mm	`M8`	`2` mm	`36x36` mm	`36` mm	`10.5` mm	`13` mm	`69` mm	`24.8` mm	`47.5` mm
`1414-85096`	`Type 1`	`40x40` mm	`M10`	`2` mm	`36x36` mm	`36` mm	`10.5` mm	`13` mm	`69` mm	`24.8` mm	`47.5` mm
`1414-84545`	`Type 2`	`40x40` mm	`M8`	`2` mm	`36x36` mm	`36` mm	`10.5` mm	`13` mm	`69` mm	`24.8` mm	`47.5` mm
`1414-84546`	`Type 2`	`40x40` mm	`M10`	`2` mm	`36x36` mm	`36` mm	`10.5` mm	`13` mm	`69` mm	`24.8` mm	`47.5` mm

Material: Plug made of reinforced polyamide black colour; nut made of brass.
