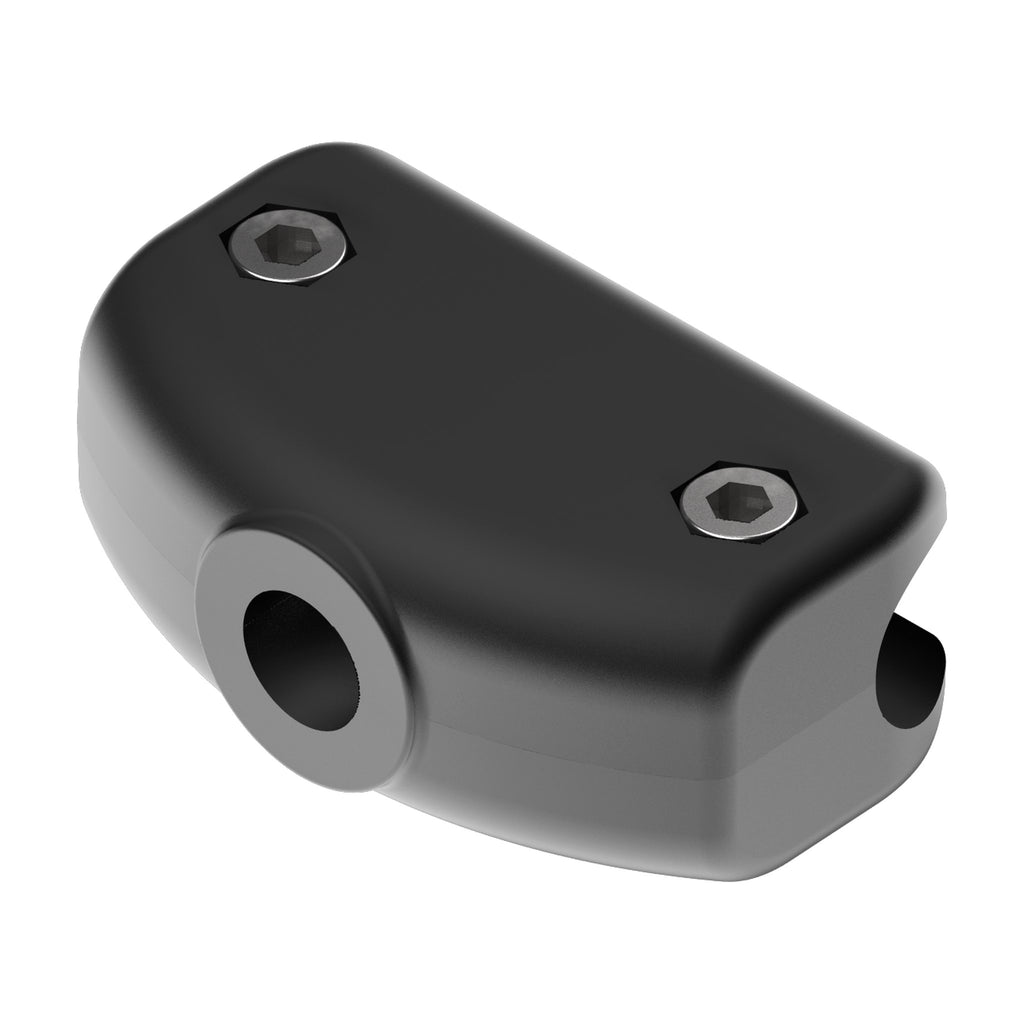

Guide Rail Clamp M10 (for round rails) — Part 1483
Product Configuration
Select a row to add it to your quote
| Code | Dp Pin diameter | Dg Rail diameter | Assembly |
|---|---|---|---|
1483-87024 |
12 mm
|
8 mm
|
With pin and nut
|
1483-87025 |
12 mm
|
10 mm
|
With pin and nut
|
1483-87026 |
12 mm
|
12 mm
|
With pin and nut
|
1483-87027 |
12 mm
|
14 mm
|
With pin and nut
|
1483-87028 |
14 mm
|
8 mm
|
With pin and nut
|
1483-87029 |
14 mm
|
10 mm
|
With pin and nut
|
1483-87030 |
14 mm
|
12 mm
|
With pin and nut
|
1483-87031 |
14 mm
|
14 mm
|
With pin and nut
|
1483-87032 |
16 mm
|
8 mm
|
With pin and nut
|
1483-87033 |
16 mm
|
10 mm
|
With pin and nut
|
1483-87034 |
16 mm
|
12 mm
|
With pin and nut
|
1483-87035 |
16 mm
|
14 mm
|
With pin and nut
|
1483-86156 |
— | 8 mm
|
Without pin, with nut
|
1483-86151 |
— | 10 mm
|
Without pin, with nut
|
1483-86152 |
— | 12 mm
|
Without pin, with nut
|
1483-86153 |
— | 14 mm
|
Without pin, with nut
|
1483-87036 |
— | 8 mm
|
Without pin and nut
|
1483-87037 |
— | 10 mm
|
Without pin and nut
|
1483-87038 |
— | 12 mm
|
Without pin and nut
|
1483-87039 |
— | 14 mm
|
Without pin and nut
|
No products match the selected filters.
Product Information
- Material
- Clamp made of reinforced polyamide black colour; pin, bolts and nuts made of stainless steel AISI 304.
