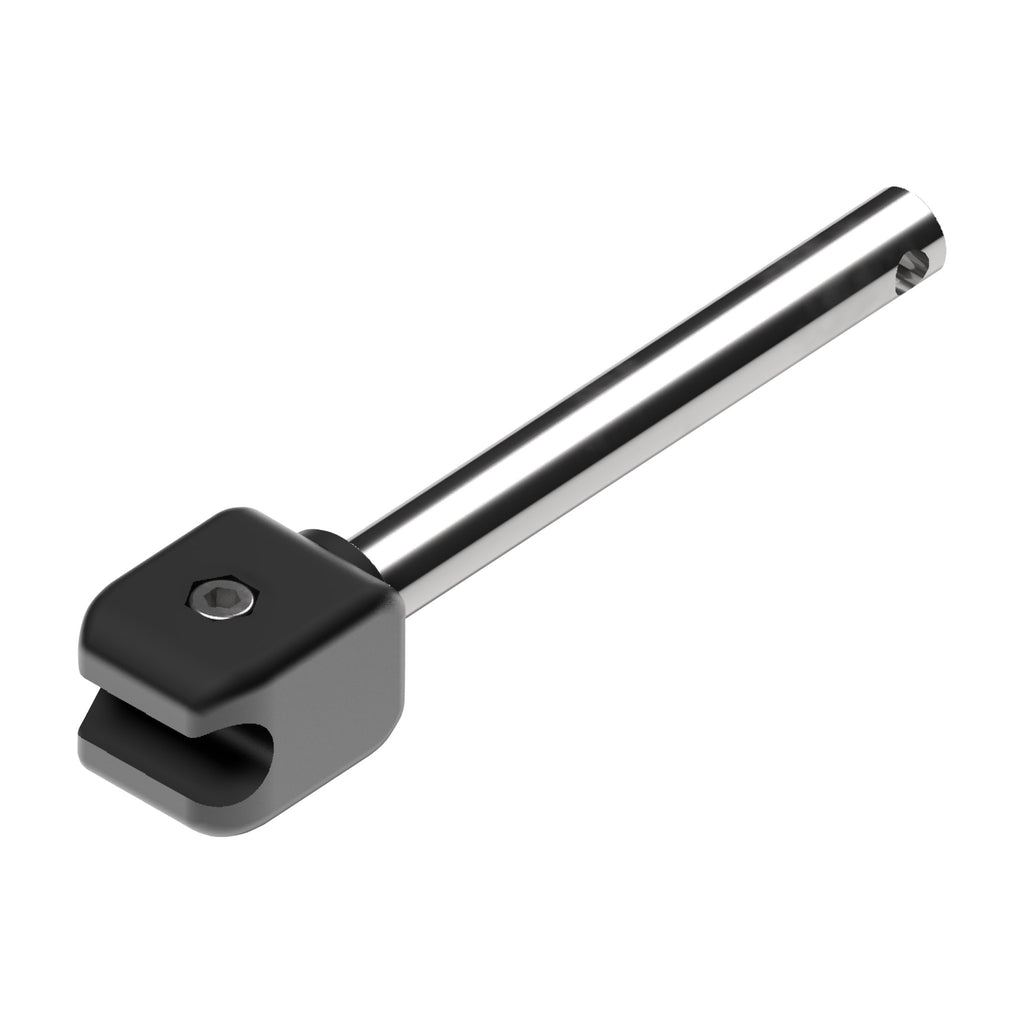

Guide Rail Clamp Side-Pin (for round rails) — Part 1204
Product Configuration
Select a row to add it to your quote
| Code | Dp Pin diameter | Dg Rail diameter | Assembly |
|---|---|---|---|
1204-80798 |
12 mm
|
8 mm
|
With pin, bolts and nuts
|
1204-80799 |
12 mm
|
10 mm
|
With pin, bolts and nuts
|
1204-80800 |
12 mm
|
12 mm
|
With pin, bolts and nuts
|
1204-80801 |
12 mm
|
14 mm
|
With pin, bolts and nuts
|
1204-80802 |
14 mm
|
8 mm
|
With pin, bolts and nuts
|
1204-80803 |
14 mm
|
10 mm
|
With pin, bolts and nuts
|
1204-80804 |
14 mm
|
12 mm
|
With pin, bolts and nuts
|
1204-80805 |
14 mm
|
14 mm
|
With pin, bolts and nuts
|
1204-80806 |
16 mm
|
8 mm
|
With pin, bolts and nuts
|
1204-80807 |
16 mm
|
10 mm
|
With pin, bolts and nuts
|
1204-80808 |
16 mm
|
12 mm
|
With pin, bolts and nuts
|
1204-80809 |
16 mm
|
14 mm
|
With pin, bolts and nuts
|
1204-80810 |
— | 8 mm
|
Without pin, with bolts and nuts
|
1204-80811 |
— | 10 mm
|
Without pin, with bolts and nuts
|
1204-80812 |
— | 12 mm
|
Without pin, with bolts and nuts
|
1204-80813 |
— | 14 mm
|
Without pin, with bolts and nuts
|
1204-80978 |
— | 8 mm
|
Without pin and without bolts and nuts
|
1204-80979 |
— | 10 mm
|
Without pin and without bolts and nuts
|
1204-80980 |
— | 12 mm
|
Without pin and without bolts and nuts
|
1204-80981 |
— | 14 mm
|
Without pin and without bolts and nuts
|
No products match the selected filters.
Product Information
- Material
- Clamp made of reinforced polyamide black colour; pin, bolts and nuts made of stainless steel AISI 304.
