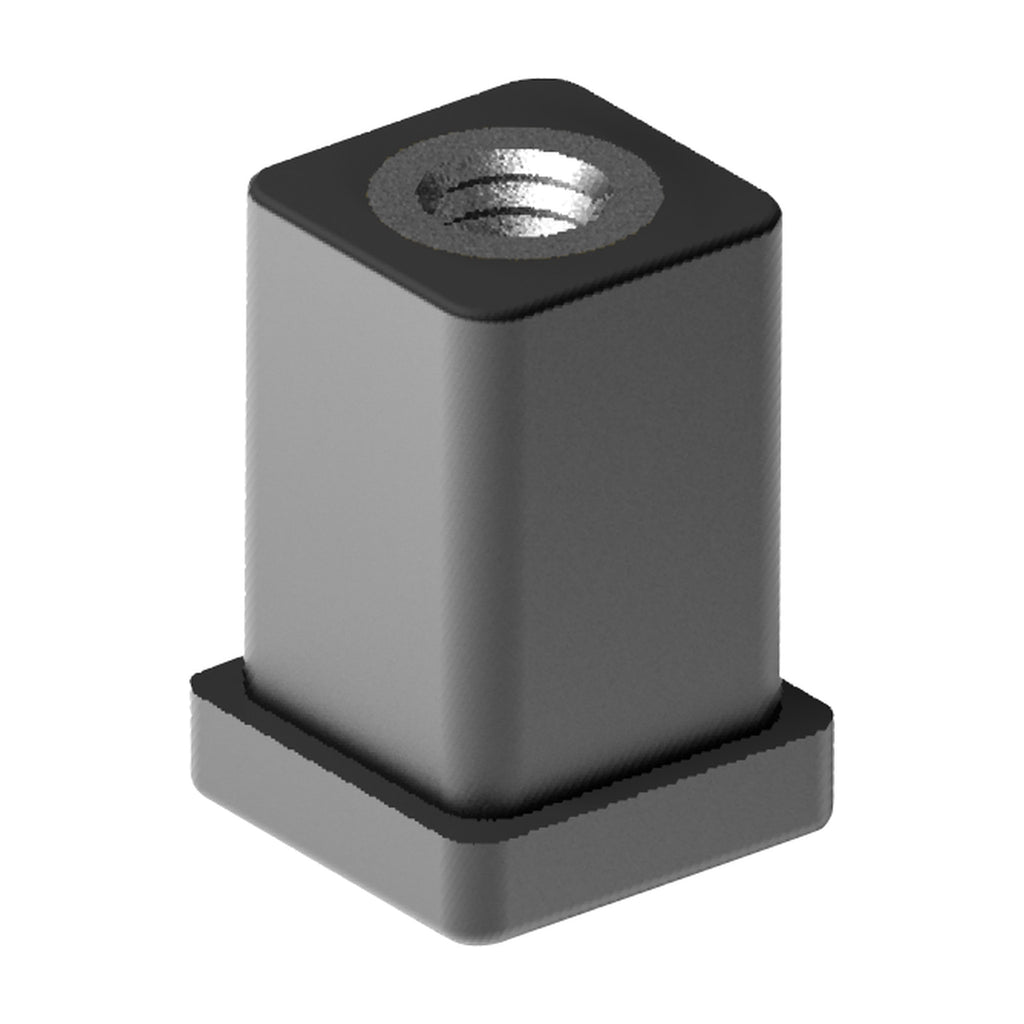

Threaded Bushing (for conveyor flanks) — Part 1336
Product Configuration
Select a row to add it to your quote
| Code | Assembly | Outside | Thickness | Inside | Thread D | D1 | D2 | H | L | M | N |
|---|---|---|---|---|---|---|---|---|---|---|---|
1336-83138 |
With bushing
|
20x20 mm
|
1.5 mm
|
17x17 mm
|
M8
|
20x20 mm
|
17x17 mm
|
5 mm
|
28 mm
|
13 mm
|
18 mm
|
1336-84563 |
With nut
|
20x20 mm
|
1.5 mm
|
17x17 mm
|
M8
|
20x20 mm
|
17x17 mm
|
5 mm
|
28 mm
|
13 mm
|
18 mm
|
No products match the selected filters.
Product Information
- Material
- Bushing in reinforced polyamide black colour; threaded insert or nut in nickel plated brass.
