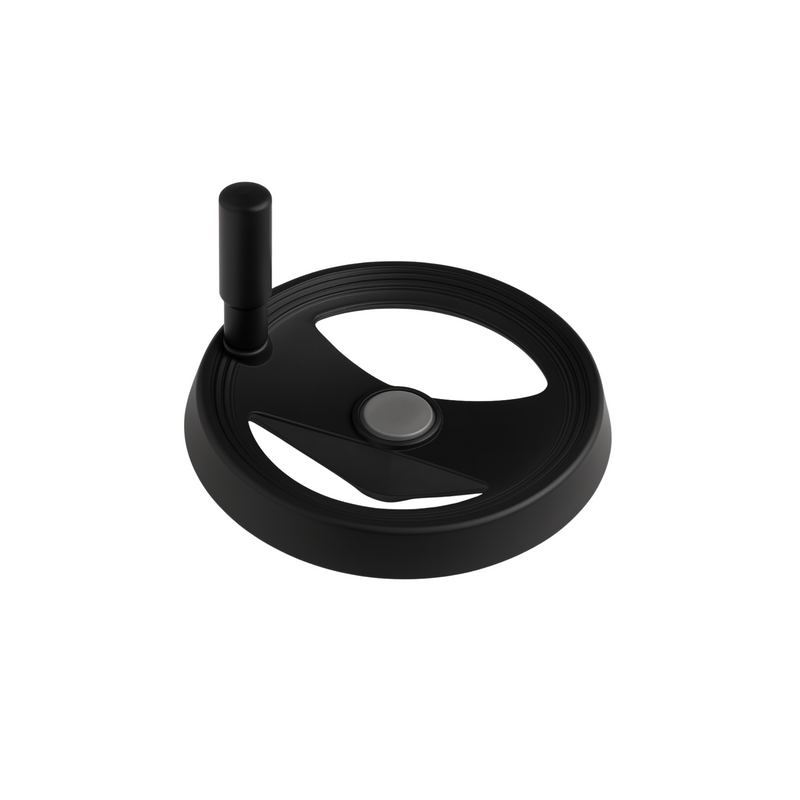

Diametrical Band Handwheel — Part VSI 432

Name: Thenar Diametrical Band Handwheel — Part VSI 432
Brand: Thenar

Knobs and handles · Diametrical Band Handwheel

Select a row to add it to your quote

dH7

Code	D	L	B	d2	d3	dH7	h	d1	H	I	Weight
`01432E`	`120` mm	`40` mm	`19` mm	`25` mm	`19` mm	`10` mm	`20` mm	`20` mm	`65` mm	`22` mm	`0.214` kg
`01432F`	`120` mm	`40` mm	`19` mm	`25` mm	`19` mm	`12` mm	`20` mm	`20` mm	`65` mm	`22` mm	`0.211` kg
`01432G`	`120` mm	`40` mm	`19` mm	`25` mm	`19` mm	`14` mm	`20` mm	`23` mm	`65` mm	`22` mm	`0.218` kg
`01432H`	`120` mm	`40` mm	`19` mm	`25` mm	`19` mm	`15` mm	`20` mm	`23` mm	`65` mm	`22` mm	`0.205` kg
`01432I`	`120` mm	`40` mm	`19` mm	`25` mm	`19` mm	`16` mm	`20` mm	`23` mm	`65` mm	`22` mm	`0.213` kg

Material: Polyamide-based (PA) technopolymer. Resistant to organic and inorganic chemical substances such as oils, greases, fuels and solvents. Black with satin finish.
