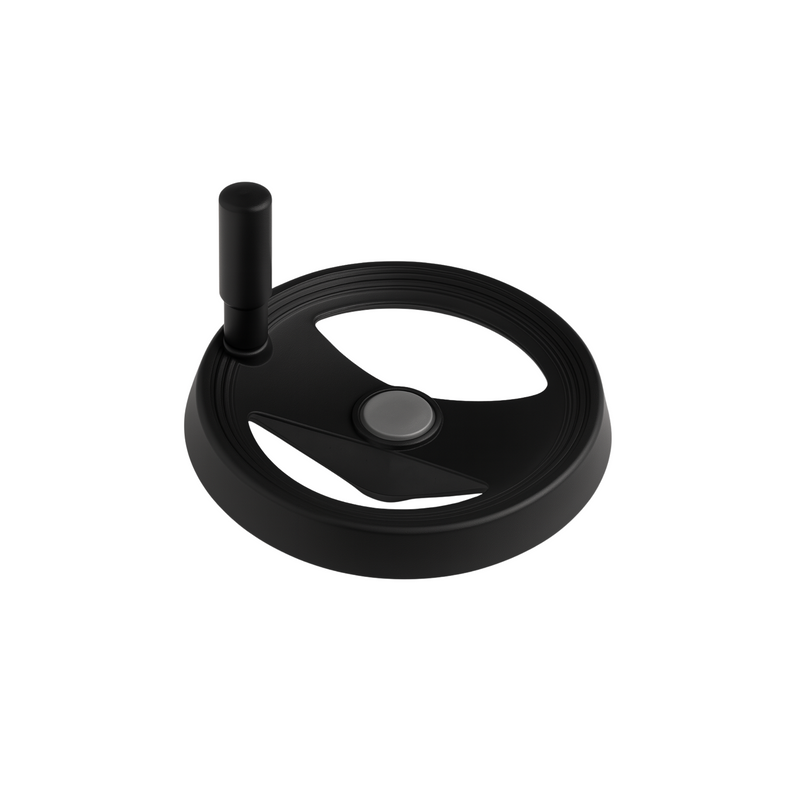

Diametrical Band Handwheel — Part VSI 442

Name: Thenar Diametrical Band Handwheel — Part VSI 442
Brand: Thenar

Knobs and handles · Diametrical Band Handwheel

Select a row to add it to your quote

dH7

Code	D	L	B	d2	d3	dH7	h	d1	H	I	Weight
`01442E`	`160` mm	`47` mm	`25` mm	`34` mm	`29` mm	`10` mm	`26` mm	`20` mm	`65` mm	`22` mm	`0.348` kg
`01442F`	`160` mm	`47` mm	`25` mm	`34` mm	`29` mm	`12` mm	`26` mm	`20` mm	`65` mm	`22` mm	`0.326` kg
`01442G`	`160` mm	`47` mm	`25` mm	`34` mm	`29` mm	`14` mm	`26` mm	`25` mm	`65` mm	`22` mm	`0.348` kg
`01442H`	`160` mm	`47` mm	`25` mm	`34` mm	`29` mm	`15` mm	`26` mm	`25` mm	`65` mm	`22` mm	`0.342` kg
`01442I`	`160` mm	`47` mm	`25` mm	`34` mm	`29` mm	`16` mm	`26` mm	`25` mm	`65` mm	`22` mm	`0.344` kg
`01442L`	`160` mm	`47` mm	`25` mm	`34` mm	`29` mm	`17` mm	`26` mm	`28` mm	`65` mm	`22` mm	`0.336` kg
`01442M`	`160` mm	`47` mm	`25` mm	`34` mm	`29` mm	`18` mm	`26` mm	`28` mm	`65` mm	`22` mm	`0.348` kg
`01442O`	`160` mm	`47` mm	`25` mm	`34` mm	`29` mm	`19` mm	`26` mm	`28` mm	`65` mm	`22` mm	`0.34` kg
`01442N`	`160` mm	`47` mm	`25` mm	`34` mm	`29` mm	`20` mm	`26` mm	`28` mm	`65` mm	`22` mm	`0.336` kg
`01442S`	`160` mm	`47` mm	`25` mm	`34` mm	`29` mm	`25` mm	`26` mm	`30` mm	`65` mm	`22` mm	`0.32` kg

Material: Polyamide-based (PA) technopolymer. Resistant to organic and inorganic chemical substances such as oils, greases, fuels and solvents. Black with satin finish.
