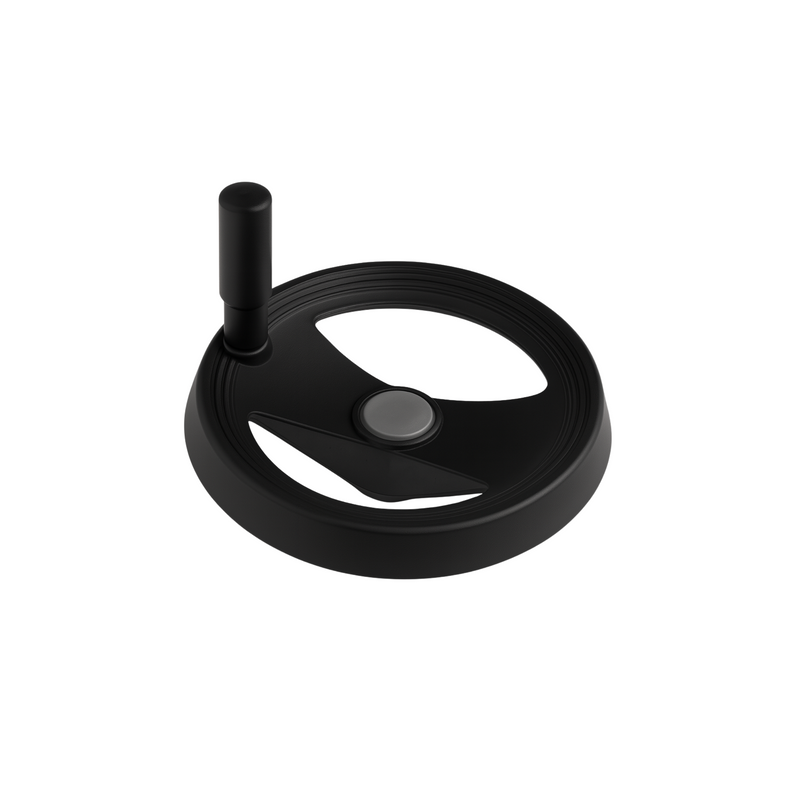

Diametrical Band Handwheel — Part VSI 452

Name: Thenar Diametrical Band Handwheel — Part VSI 452
Brand: Thenar

Knobs and handles · Diametrical Band Handwheel

Select a row to add it to your quote

dH7

Code	D	L	B	d2	d3	dH7	h	d1	H	I	Weight
`01452E`	`200` mm	`56` mm	`29` mm	`40` mm	`29` mm	`10` mm	`26` mm	`20` mm	`70` mm	`26` mm	`0.506` kg
`01452F`	`200` mm	`56` mm	`29` mm	`40` mm	`29` mm	`12` mm	`26` mm	`20` mm	`70` mm	`26` mm	`0.498` kg
`01452G`	`200` mm	`56` mm	`29` mm	`40` mm	`29` mm	`14` mm	`26` mm	`25` mm	`70` mm	`26` mm	`0.494` kg
`01452H`	`200` mm	`56` mm	`29` mm	`40` mm	`29` mm	`15` mm	`26` mm	`25` mm	`70` mm	`26` mm	`0.524` kg
`01452I`	`200` mm	`56` mm	`29` mm	`40` mm	`29` mm	`16` mm	`26` mm	`25` mm	`70` mm	`26` mm	`0.53` kg
`01452L`	`200` mm	`56` mm	`29` mm	`40` mm	`29` mm	`17` mm	`26` mm	`28` mm	`70` mm	`26` mm	`0.506` kg
`01452M`	`200` mm	`56` mm	`29` mm	`40` mm	`29` mm	`18` mm	`26` mm	`28` mm	`70` mm	`26` mm	`0.494` kg
`01452O`	`200` mm	`56` mm	`29` mm	`40` mm	`29` mm	`19` mm	`26` mm	`28` mm	`70` mm	`26` mm	`0.502` kg
`01452N`	`200` mm	`56` mm	`29` mm	`40` mm	`29` mm	`20` mm	`26` mm	`28` mm	`70` mm	`26` mm	`0.51` kg
`01452S`	`200` mm	`56` mm	`29` mm	`40` mm	`29` mm	`25` mm	`26` mm	`30` mm	`70` mm	`26` mm	`0.498` kg

Material: Polyamide-based (PA) technopolymer. Resistant to organic and inorganic chemical substances such as oils, greases, fuels and solvents. Black with satin finish.
